SKM30C-12

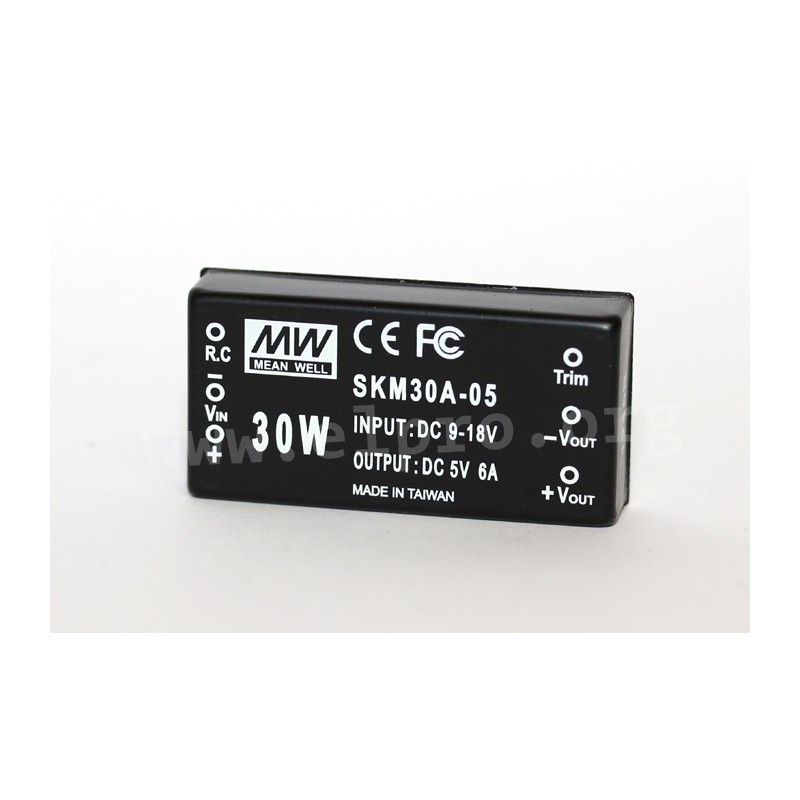

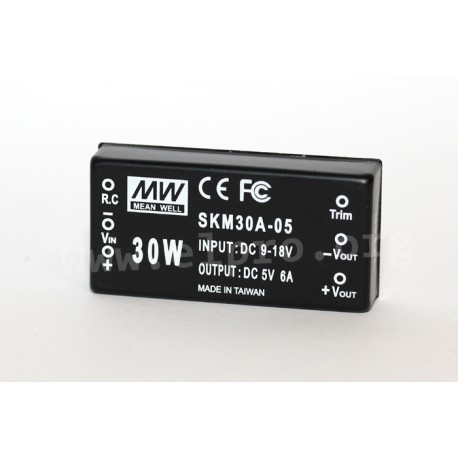

Mean Well DC/DC converter series SKM30

DC/DC converters in a 2"x1" metal housing with 30W, a regulated output voltage, a remote ON/OFF control and a built-in trimming output. These devices have a galvanic isolation of input/output, an input voltage ratio of 2:1 and are protected against overload, overvoltage as well as short circuit. They are suitable for PCB mounting and comply with EN55032 class A. We offer the following types of this Mean Well series: SKM30A-05, SKM30A-12, SKM30B-05, SKM30B-12, SKM30B-15, SKM30C-05, SKM30C-12 and SKM30C-15.

  • single output
  • output: 30W
  • overload protection: 110 to 180%
  • withstand voltage: 1500V DC
  • operating temperature: -40 to +75°C
  • weight: 31,2g
Meanwell SKM30 series

SKM30C-12

37717 SKM30C-12 SKM30C-12 4711287476759 Mean Well DC/DC converter series SKM30. DC/DC converters in a 2"x1" metal housing with 30W, a regulated output voltage, a remote ON/OFF control and a built-in trimming output. These devices have a galvanic isolation of input/output, an input voltage ratio of 2:1 and are protected against overload, overvoltage as well as short circuit. They are suitable for PCB mounting and comply with EN55032 class A. We offer the following types of this Mean Well series: SKM30A-05, SKM30A-12, SKM30B-05, SKM30B-12, SKM30B-15, SKM30C-05, SKM30C-12 and SKM30C-15. single output output: 30W overload protection: 110 to 180% withstand voltage: 1500V DC operating temperature: -40 to +75°C weight: 31,2g

Specifications

manufacturer
Manufacturer's name SKM30C-12
GTIN 4711287476759
Input voltage [V] 36...75
Output voltage [V] 12
Output current range [mA] 250...2500
Efficiency [%] 89
Ripple [mVp-p] 120
Data Sheet

Unit price

29,29 €

Volume discounts

Quantity Unit price
50 + 27,29 €

Stock: 0
Next incoming goods:
CW 07/2025
10 units

Further delivery:
CW 31/2025
