SKM30B-05

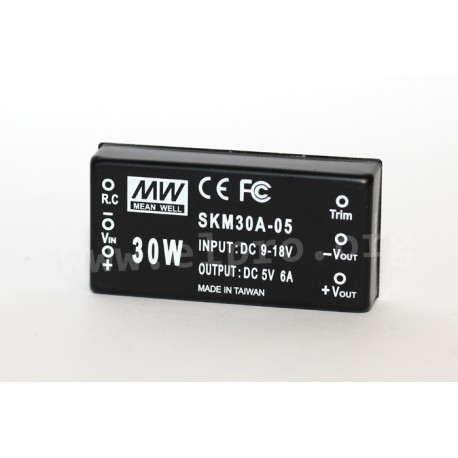

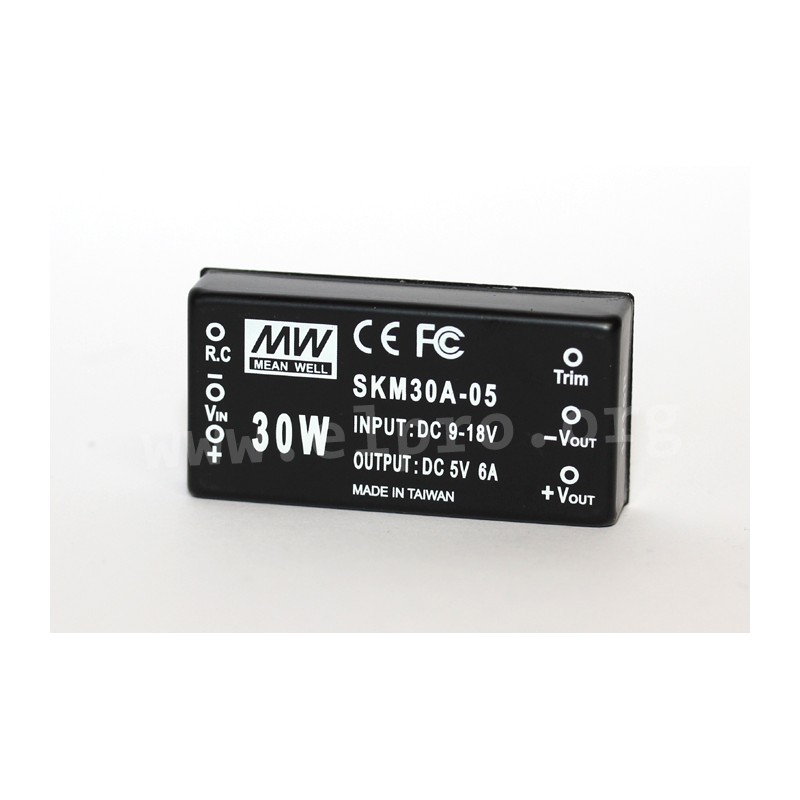

Mean Well DC/DC converter series SKM30

DC/DC converters in a 2"x1" metal housing with 30W, a regulated output voltage, a remote ON/OFF control and a built-in trimming output. These devices have a galvanic isolation of input/output, an input voltage ratio of 2:1 and are protected against overload, overvoltage as well as short circuit. They are suitable for PCB mounting and comply with EN55032 class A. We offer the following types of this Mean Well series: SKM30A-05, SKM30A-12, SKM30B-05, SKM30B-12, SKM30B-15, SKM30C-05, SKM30C-12 and SKM30C-15.

  • single output
  • output: 30W
  • overload protection: 110 to 180%
  • withstand voltage: 1500V DC
  • operating temperature: -40 to +75°C
  • weight: 31,2g
Meanwell SKM30 series

SKM30B-05

37713 SKM30B-05 SKM30B-05 4711287476711 Mean Well DC/DC converter series SKM30. DC/DC converters in a 2"x1" metal housing with 30W, a regulated output voltage, a remote ON/OFF control and a built-in trimming output. These devices have a galvanic isolation of input/output, an input voltage ratio of 2:1 and are protected against overload, overvoltage as well as short circuit. They are suitable for PCB mounting and comply with EN55032 class A. We offer the following types of this Mean Well series: SKM30A-05, SKM30A-12, SKM30B-05, SKM30B-12, SKM30B-15, SKM30C-05, SKM30C-12 and SKM30C-15. single output output: 30W overload protection: 110 to 180% withstand voltage: 1500V DC operating temperature: -40 to +75°C weight: 31,2g

Specifications

manufacturer
Manufacturer's name SKM30B-05
GTIN 4711287476711
Input voltage [V] 18...36
Output voltage [V] 5
Output current range [mA] 600...6000
Efficiency [%] 88,5
Ripple [mVp-p] 90
