SKM30A-15

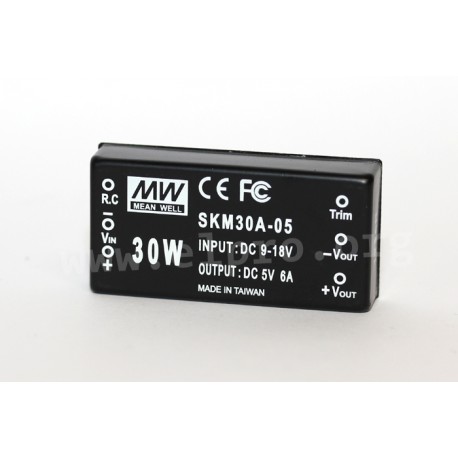

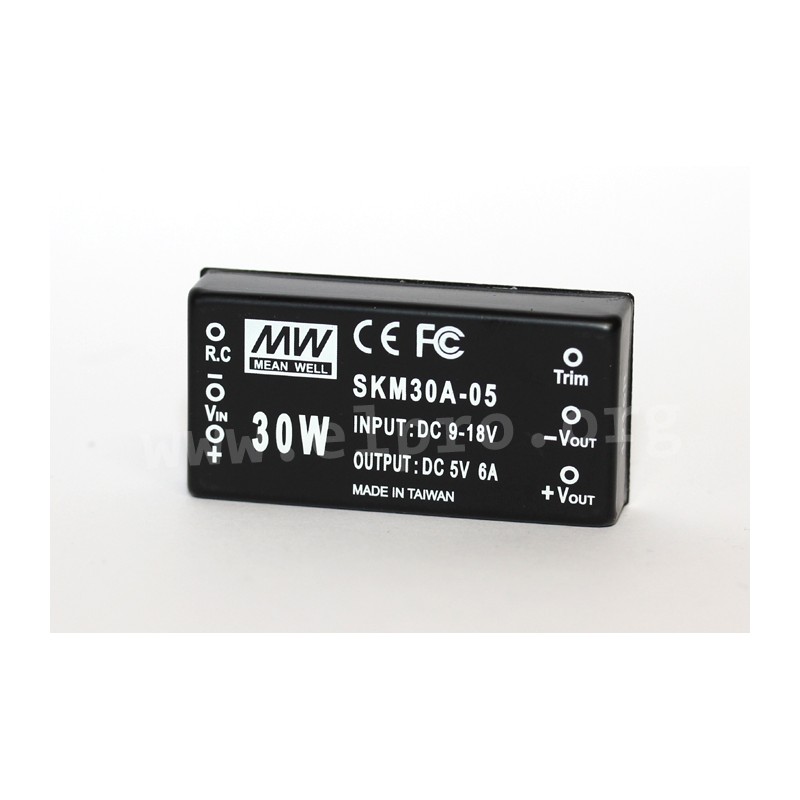

DC/DC-converter-modules SKM30 by Meanwell

• output: 30 W
• 2" x 1" housing
• single output
• for direct PCB mounting
• input voltage range 2:1
• DC decoupling of input and output
• built-in remote ON/OFF control
• built-in trimming output
• short-circuit proof
• 110 to 180% over load protection
• input/output insulation: 1500 V DC
• operating temperature: -40 to +75°C
• by Mean Well
• weight: 31.2g

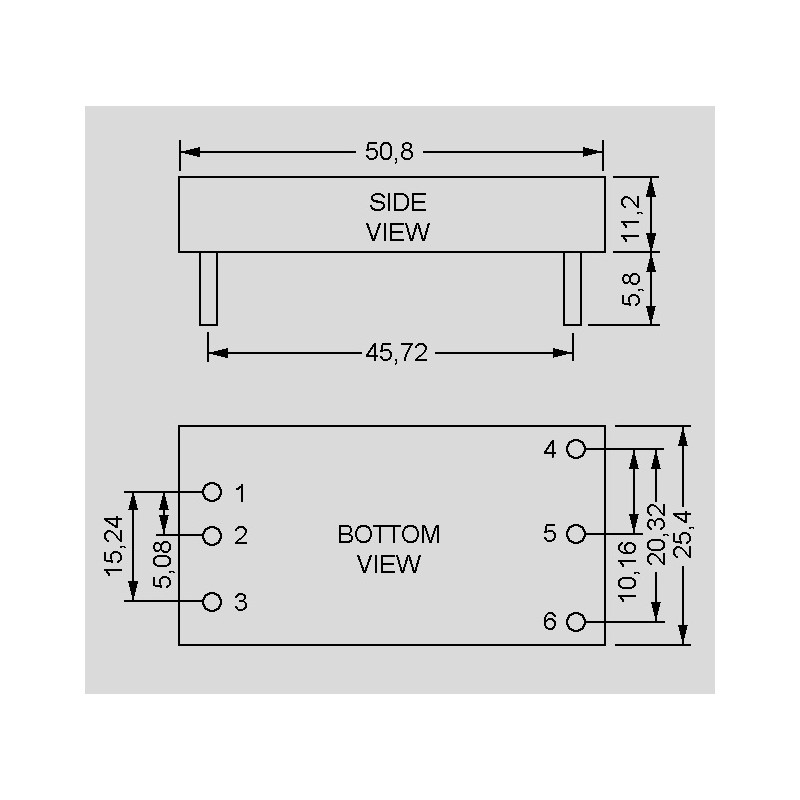

• pin assignment:
pin 1:+UIN
pin 2: -UIN
pin 3: R.C.
pin 4: +UOUT
pin 5: -UOUT
pin 6: Trim

Meanwell SKM30 series

SKM30A-15

37712 SKM30A-15 SKM30A-15 4711287476704 DC/DC-converter-modules SKM30 by Meanwell. • output: 30 W• 2" x 1" housing• single output• for direct PCB mounting• input voltage range 2:1• DC decoupling of input and output• built-in remote ON/OFF control• built-in trimming output• short-circuit proof• 110 to 180% over load protection• input/output insulation: 1500 V DC• operating temperature: -40 to +75°C• by Mean Well• weight: 31.2g• pin assignment:pin 1:+UINpin 2: -UINpin 3: R.C.pin 4: +UOUTpin 5: -UOUTpin 6: Trim

Specifications

manufacturer
Manufacturer's name SKM30A-15
GTIN 4711287476704
Input voltage [V] 9...18
Output voltage [V] 15
Output current range [mA] 200...2000
Efficiency [%] 89,5
Ripple [mVp-p] 120
Data Sheet

Unit price

30,49 €

Stock: 0
Further delivery:
CW 27/2025
