SKM10E-12

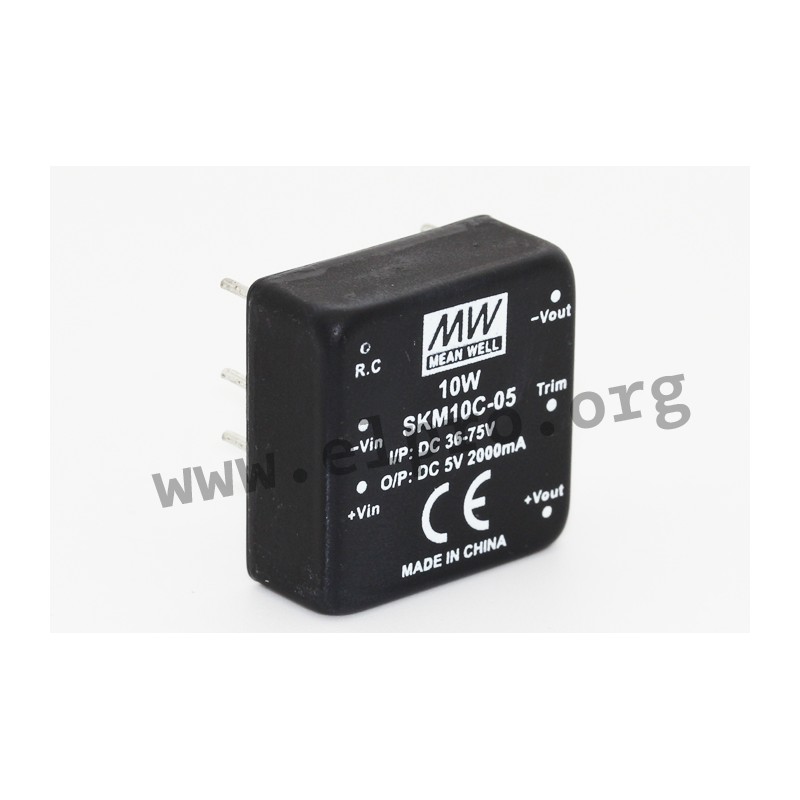

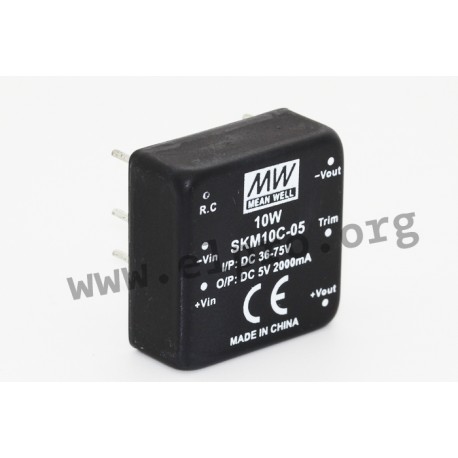

Mean Well DC/DC converter series SKM10

DC/DC converters in a 1"x1" DIL housing with 10W, a remote ON/OFF control, a trimming output (±10%) and an input voltage ratio of 2:1. These devices are suitable for PCB mounting and are protected against overload, input undervoltage, short circuit (continuous) as well as overvoltage. They require no minimum load and comply with EN55032 class A. We offer the following types of this Mean Well series: SKM10E-03, SKM10E-05, SKM10E-12, SKM10E-15, SKM10A-03, SKM10A-05, SKM10A-12, SKM10A-15, SKM10B-03, SKM10B-05, SKM10B-12, SKM10B-15, SKM10C-03, SKM10C-05, SKM10C-12 and SKM10C-15.

  • single output
  • output: 10W
  • output voltage tolerance: ±1,5%
  • maximal ripple and noise: 50mVpp
  • withstand voltage: 1500V DC
  • operating temperature: -40 to +85°C
  • weight: 18g
Mean Well SKM10 series

SKM10E-12

110451 SKM10E-12 SKM10E-12 4711287476452 Mean Well DC/DC converter series SKM10. DC/DC converters in a 1"x1" DIL housing with 10W, a remote ON/OFF control, a trimming output (±10%) and an input voltage ratio of 2:1. These devices are suitable for PCB mounting and are protected against overload, input undervoltage, short circuit (continuous) as well as overvoltage. They require no minimum load and comply with EN55032 class A. We offer the following types of this Mean Well series: SKM10E-03, SKM10E-05, SKM10E-12, SKM10E-15, SKM10A-03, SKM10A-05, SKM10A-12, SKM10A-15, SKM10B-03, SKM10B-05, SKM10B-12, SKM10B-15, SKM10C-03, SKM10C-05, SKM10C-12 and SKM10C-15. single output output: 10W output voltage tolerance: ±1,5% maximal ripple and noise: 50mVpp withstand voltage: 1500V DC operating temperature: -40 to +85°C weight: 18g

Specifications

manufacturer
Manufacturer's name SKM10E-12
GTIN 4711287476452
Input voltage [V] 4,7...9
Output voltage [V] 12
Output current range [mA] 0...833
Efficiency [%] 87
Data Sheet

Unit price

18,19 €

Volume discounts

Quantity Unit price
50 + 16,99 €

Stock: 2
Further delivery:
CW 18/2025
