SKE15C-24

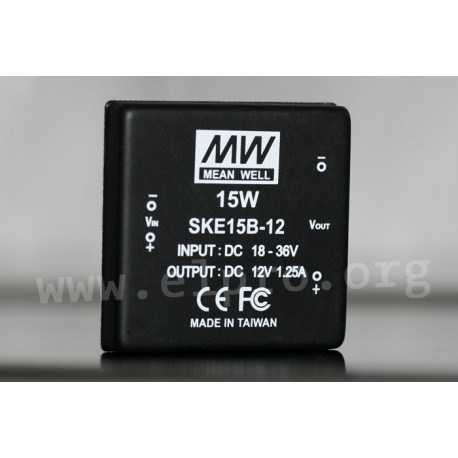

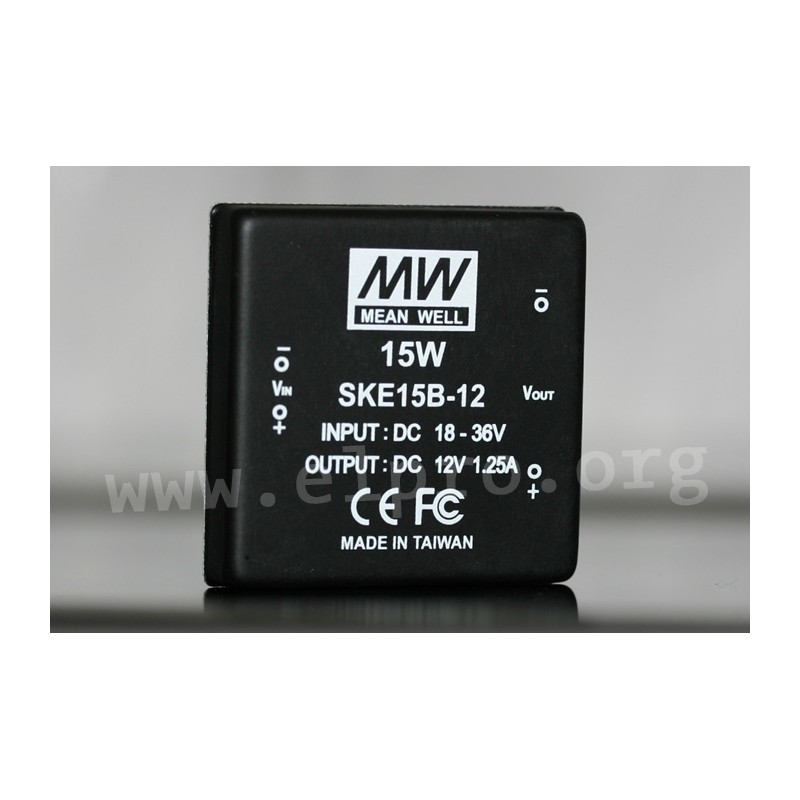

Mean Well DC/DC converter series SKE15

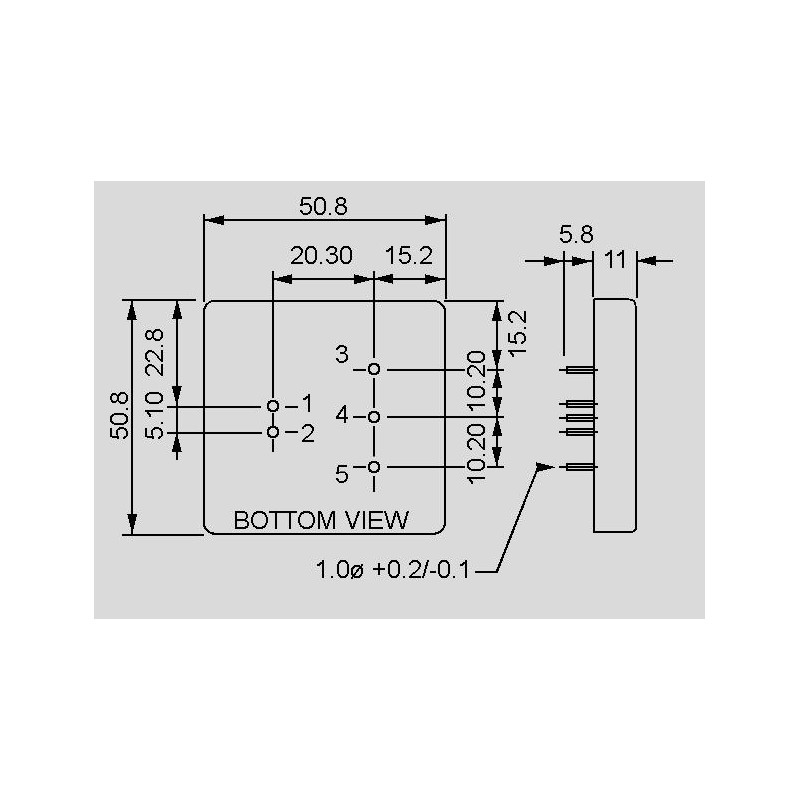

DC/DC converters in a 2"x2" DIL24 housing with 15W, a regulated output voltage, a built-in EMI filter and an input voltage ratio of 2:1. These devices are suitable for PCB mounting and are protected against overload as well as short circuit (continuous). They require no minimum load and comply with EN55032 class A. We offer the following types of this Mean Well series: SKE15A-05, SKE15A-12, SKE15A-15, SKE15A-24, SKE15B-05, SKE15B-24, SKE15C-05, SKE15C-12, SKE15C-15 and SKE15C-24.

  • single output
  • output: 15W
  • overload protection: 160 to 250%
  • withstand voltage: 1000V DC
  • operating temperature: -25 to +71°C
  • weight: 65g
Meanwell SKE15 series

SKE15C-24

32310 SKE15C-24 SKE15C-24 4711287476421 Mean Well DC/DC converter series SKE15. DC/DC converters in a 2"x2" DIL24 housing with 15W, a regulated output voltage, a built-in EMI filter and an input voltage ratio of 2:1. These devices are suitable for PCB mounting and are protected against overload as well as short circuit (continuous). They require no minimum load and comply with EN55032 class A. We offer the following types of this Mean Well series: SKE15A-05, SKE15A-12, SKE15A-15, SKE15A-24, SKE15B-05, SKE15B-24, SKE15C-05, SKE15C-12, SKE15C-15 and SKE15C-24. single output output: 15W overload protection: 160 to 250% withstand voltage: 1000V DC operating temperature: -25 to +71°C weight: 65g

Specifications

manufacturer
Manufacturer's name SKE15C-24
GTIN 4711287476421
Input voltage [V] 36...72
Output voltage [V] 24
Output current range [mA] 62,5...625
Efficiency [%] 84
Ripple [mVp-p] 80
Data Sheet
