SKA60B-12

Mean Well DC/DC converter series SKA60

DC/DC converters in a 2"x2" DIL metal housing with 60W, a regulated output voltage, a remote ON/OFF control and a trimming output (±10%). These devices have a galvanic isolation of input/output, an input voltage ratio of 2:1 and are protected against overload, overvoltage as well as short circuit. They are suitable for PCB mounting and comply with EN55032 class A (without additional components). We offer the following types of this Mean Well series: SKA60A-05, SKA60A-12, SKA60A-15, SKA60B-05, SKA60B-12, SKA60B-15, SKA60C-05, SKA60C-12 and SKA60C-15.

  • single output
  • output: 60W
  • overload protection: 110 to 160%
  • withstand voltage: 1500V DC
  • operating temperature: -40 to +70°C
  • weight: 67g

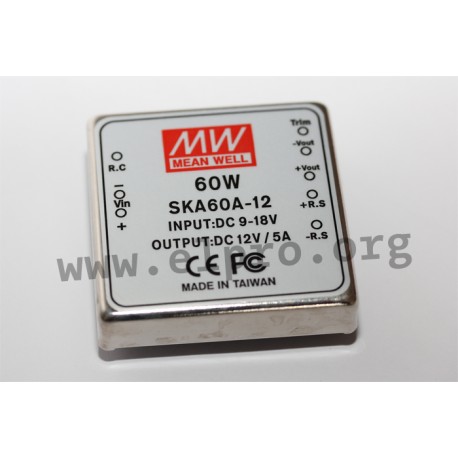

Meanwell SKA60 series

SKA60B-12

37685 SKA60B-12 SKA60B-12 4711287476148 Mean Well DC/DC converter series SKA60. DC/DC converters in a 2"x2" DIL metal housing with 60W, a regulated output voltage, a remote ON/OFF control and a trimming output (±10%). These devices have a galvanic isolation of input/output, an input voltage ratio of 2:1 and are protected against overload, overvoltage as well as short circuit. They are suitable for PCB mounting and comply with EN55032 class A (without additional components). We offer the following types of this Mean Well series: SKA60A-05, SKA60A-12, SKA60A-15, SKA60B-05, SKA60B-12, SKA60B-15, SKA60C-05, SKA60C-12 and SKA60C-15. single output output: 60W overload protection: 110 to 160% withstand voltage: 1500V DC operating temperature: -40 to +70°C weight: 67g

Specifications

manufacturer
Manufacturer's name SKA60B-12
GTIN 4711287476148
Input voltage [V] 18...36
Output voltage [V] 12
Output current range [mA] 500...5000
Efficiency [%] 92,5
Ripple [mVp-p] 80
Data Sheet

Unit price

44,19 €

Volume discounts

Quantity Unit price
50 + 42,69 €

Stock: 0
Next incoming goods:
CW 07/2025
50 units

Further delivery:
CW 18/2025
