SKA60C-15

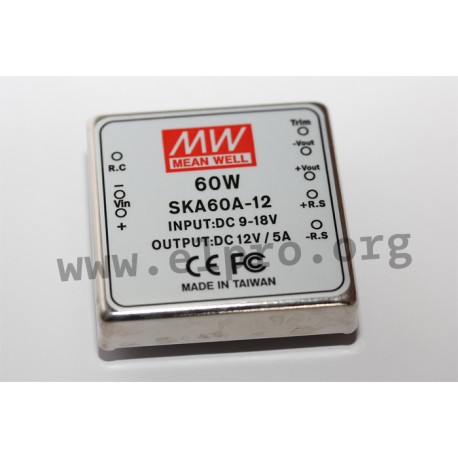

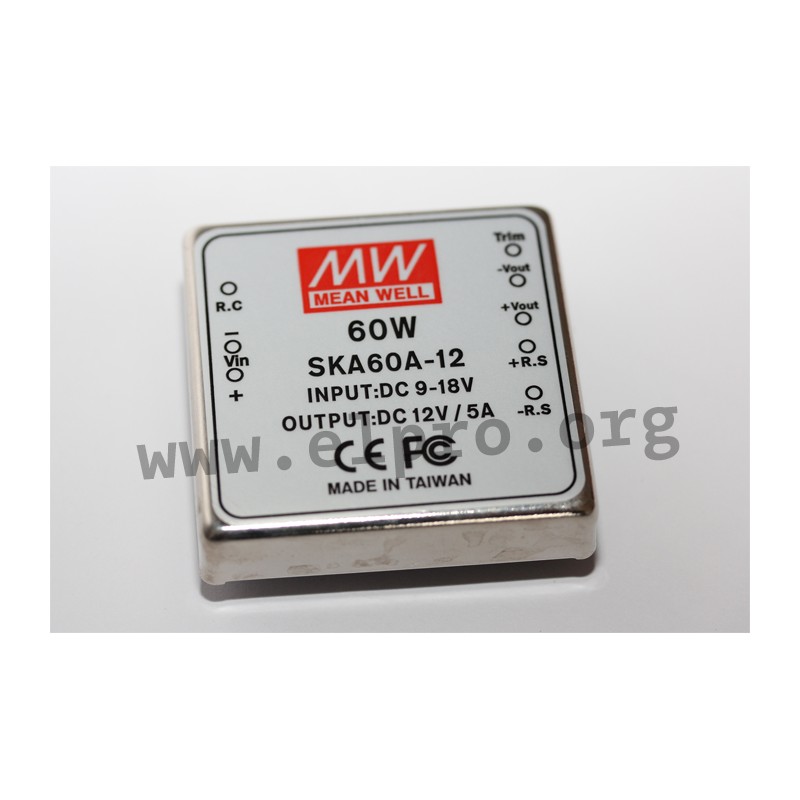

Mean Well DC/DC converter series SKA60

DC/DC converters in a 2"x2" DIL metal housing with 60W, a regulated output voltage, a remote ON/OFF control and a trimming output (±10%). These devices have a galvanic isolation of input/output, an input voltage ratio of 2:1 and are protected against overload, overvoltage as well as short circuit. They are suitable for PCB mounting and comply with EN55032 class A (without additional components). We offer the following types of this Mean Well series: SKA60A-05, SKA60A-12, SKA60A-15, SKA60B-05, SKA60B-12, SKA60B-15, SKA60C-05, SKA60C-12 and SKA60C-15.

  • single output
  • output: 60W
  • overload protection: 110 to 160%
  • withstand voltage: 1500V DC
  • operating temperature: -40 to +70°C
  • weight: 67g
Meanwell SKA60 series

SKA60C-15

37683 SKA60C-15 SKA60C-15 4711287476186 Mean Well DC/DC converter series SKA60. DC/DC converters in a 2"x2" DIL metal housing with 60W, a regulated output voltage, a remote ON/OFF control and a trimming output (±10%). These devices have a galvanic isolation of input/output, an input voltage ratio of 2:1 and are protected against overload, overvoltage as well as short circuit. They are suitable for PCB mounting and comply with EN55032 class A (without additional components). We offer the following types of this Mean Well series: SKA60A-05, SKA60A-12, SKA60A-15, SKA60B-05, SKA60B-12, SKA60B-15, SKA60C-05, SKA60C-12 and SKA60C-15. single output output: 60W overload protection: 110 to 160% withstand voltage: 1500V DC operating temperature: -40 to +70°C weight: 67g

Specifications

manufacturer
Manufacturer's name SKA60C-15
GTIN 4711287476186
Input voltage [V] 36...75
Output voltage [V] 15
Output current range [mA] 400...4000
Efficiency [%] 92,5
Ripple [mVp-p] 100
