SKA40A-12

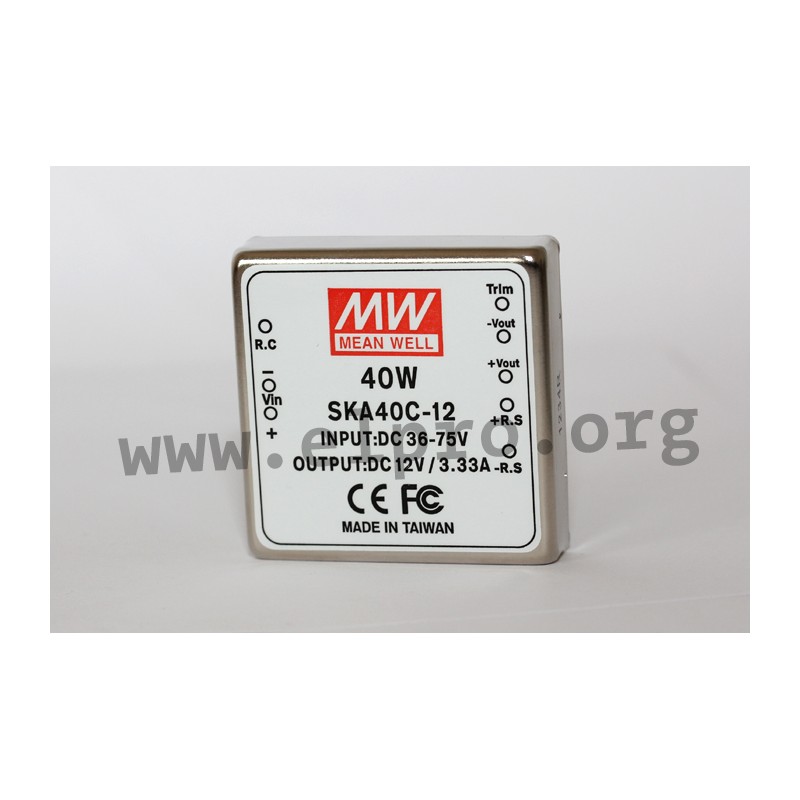

Mean Well DC/DC converter series SKA40

DC/DC converters in a 2"x2" metal housing with a regulated output voltage, a built-in EMI filter, a trimming output (±10%) and a remote ON/OFF control. They have an input voltage ratio of 2:1, a galvanic isolation of input/output and are protected against overload, overvoltage as well as short circuit. They are suitable for PCB mounting and comply with EN55032 class A. We offer the following types of this Mean Well series: SKA40A-12, SKA40A-15, SKA40B-05, SKA40B-12, SKA40B-15, SKA40C-05 and SKA40B-12.

  • single output
  • output: 35 to 40W
  • overload protection: 110 to 180%
  • withstand voltage: 1500V DC
  • operating temperature: 1500V DC
  • weight: 60g

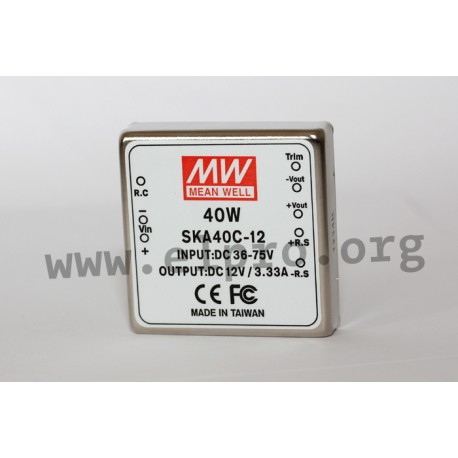

Meanwell SKA40 series

SKA40A-12

37678 SKA40A-12 SKA40A-12 4711287476025 Mean Well DC/DC converter series SKA40. DC/DC converters in a 2"x2" metal housing with a regulated output voltage, a built-in EMI filter, a trimming output (±10%) and a remote ON/OFF control. They have an input voltage ratio of 2:1, a galvanic isolation of input/output and are protected against overload, overvoltage as well as short circuit. They are suitable for PCB mounting and comply with EN55032 class A. We offer the following types of this Mean Well series: SKA40A-12, SKA40A-15, SKA40B-05, SKA40B-12, SKA40B-15, SKA40C-05 and SKA40B-12. single output output: 35 to 40W overload protection: 110 to 180% withstand voltage: 1500V DC operating temperature: 1500V DC weight: 60g

Specifications

manufacturer
Manufacturer's name SKA40A-12
GTIN 4711287476025
Input voltage [V] 9...18
Output voltage [V] 12
Output current range [mA] 300...3330
Efficiency [%] 90
Ripple [mVp-p] 80
Data Sheet

Unit price

36,69 €

Volume discounts

Quantity Unit price
50 + 35,39 €

Stock: 3
Further delivery:
CW 22/2025
