SKA40A-05

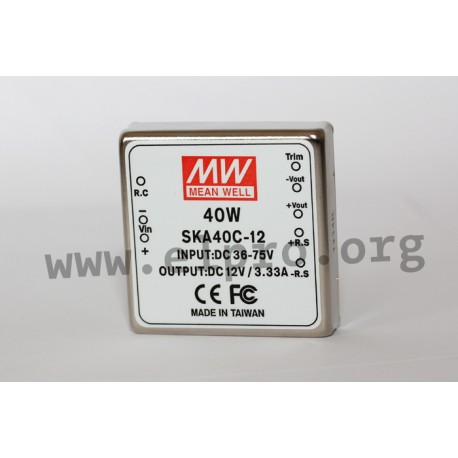

DC/DC-converter-modules SKA40 by Meanwell

• output: 35 W
• 2" x 2" housing
• single output
• for direct PCB mounting
• input voltage range 2:1
• DC decoupling of input and output
• built-in remote ON/OFF control
• regulated output voltage
• short-circuit proof
• 110 to 180% over load protection
• input/output insulation: 1500 V DC
• operating temperature: -40 to +80°C
• by Mean Well
• weight: 60g

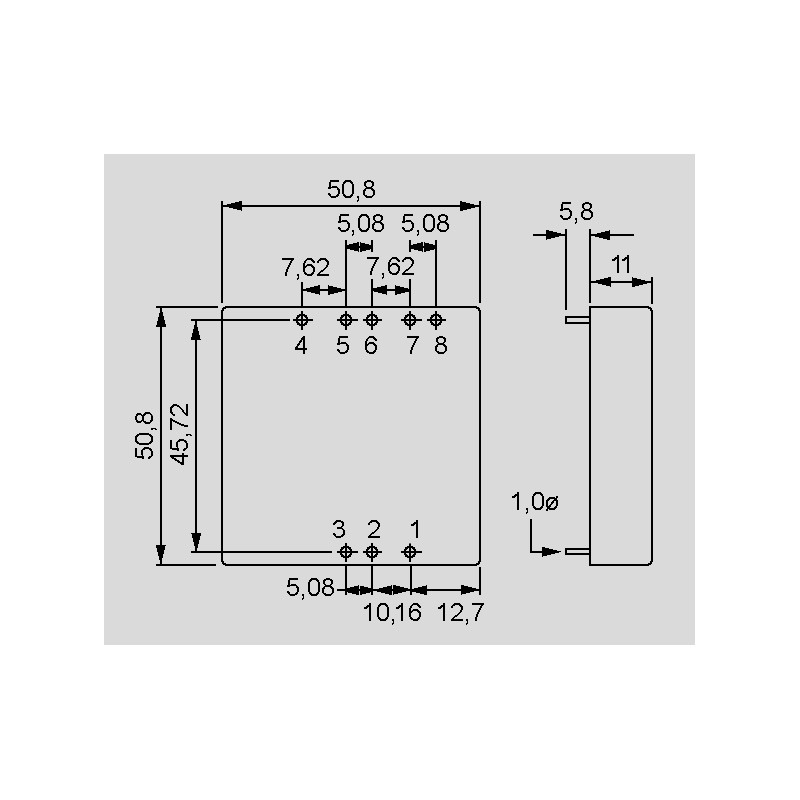

• pin assignment:
pin 1: RC
pin 2: -UIN
pin 3: +UIN
pin 4: -R.S.
pin 5: +R.S.
pin 6: +UOUT
pin 7: -UOUT
pin 8: Trim

Meanwell SKA40 series

SKA40A-05

37677 SKA40A-05 SKA40A-05 4711287476018 DC/DC-converter-modules SKA40 by Meanwell. • output: 35 W• 2" x 2" housing• single output• for direct PCB mounting• input voltage range 2:1• DC decoupling of input and output• built-in remote ON/OFF control• regulated output voltage• short-circuit proof• 110 to 180% over load protection• input/output insulation: 1500 V DC• operating temperature: -40 to +80°C• by Mean Well• weight: 60g• pin assignment:pin 1: RCpin 2: -UINpin 3: +UINpin 4: -R.S.pin 5: +R.S.pin 6: +UOUTpin 7: -UOUTpin 8: Trim

Specifications

manufacturer
Manufacturer's name SKA40A-05
GTIN 4711287476018
Input voltage [V] 9...18
Output voltage [V] 5
Output current range [mA] 700...7000
Efficiency [%] 91
Ripple [mVp-p] 60
Data Sheet

Unit price

38,19 €

Stock: 0
Further delivery:
CW 22/2025
