SKA40B-15

Mean Well DC/DC converter series SKA40

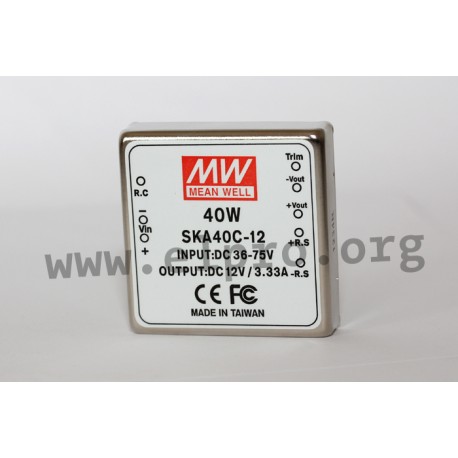

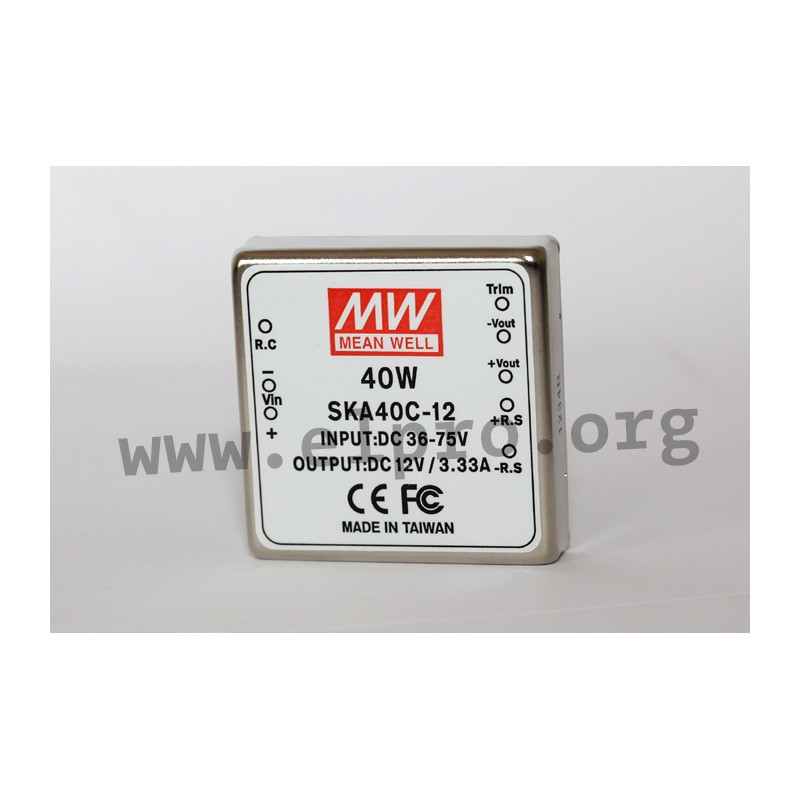

DC/DC converters in a 2"x2" metal housing with a regulated output voltage, a built-in EMI filter, a trimming output (±10%) and a remote ON/OFF control. They have an input voltage ratio of 2:1, a galvanic isolation of input/output and are protected against overload, overvoltage as well as short circuit. They are suitable for PCB mounting and comply with EN55032 class A. We offer the following types of this Mean Well series: SKA40A-12, SKA40A-15, SKA40B-05, SKA40B-12, SKA40B-15, SKA40C-05 and SKA40B-12.

  • single output
  • output: 35 to 40W
  • overload protection: 110 to 180%
  • withstand voltage: 1500V DC
  • operating temperature: 1500V DC
  • weight: 60g
Meanwell SKA40 series

SKA40B-15

37671 SKA40B-15 SKA40B-15 4711287476063 Mean Well DC/DC converter series SKA40. DC/DC converters in a 2"x2" metal housing with a regulated output voltage, a built-in EMI filter, a trimming output (±10%) and a remote ON/OFF control. They have an input voltage ratio of 2:1, a galvanic isolation of input/output and are protected against overload, overvoltage as well as short circuit. They are suitable for PCB mounting and comply with EN55032 class A. We offer the following types of this Mean Well series: SKA40A-12, SKA40A-15, SKA40B-05, SKA40B-12, SKA40B-15, SKA40C-05 and SKA40B-12. single output output: 35 to 40W overload protection: 110 to 180% withstand voltage: 1500V DC operating temperature: 1500V DC weight: 60g

Specifications

manufacturer
Manufacturer's name SKA40B-15
GTIN 4711287476063
Input voltage [V] 18...36
Output voltage [V] 15
Output current range [mA] 260...2670
Efficiency [%] 90,5
Ripple [mVp-p] 100
Data Sheet

Unit price

36,69 €

Volume discounts

Quantity Unit price
50 + 35,39 €

Stock: 150
Further delivery:
CW 18/2025
