SKA20B-15

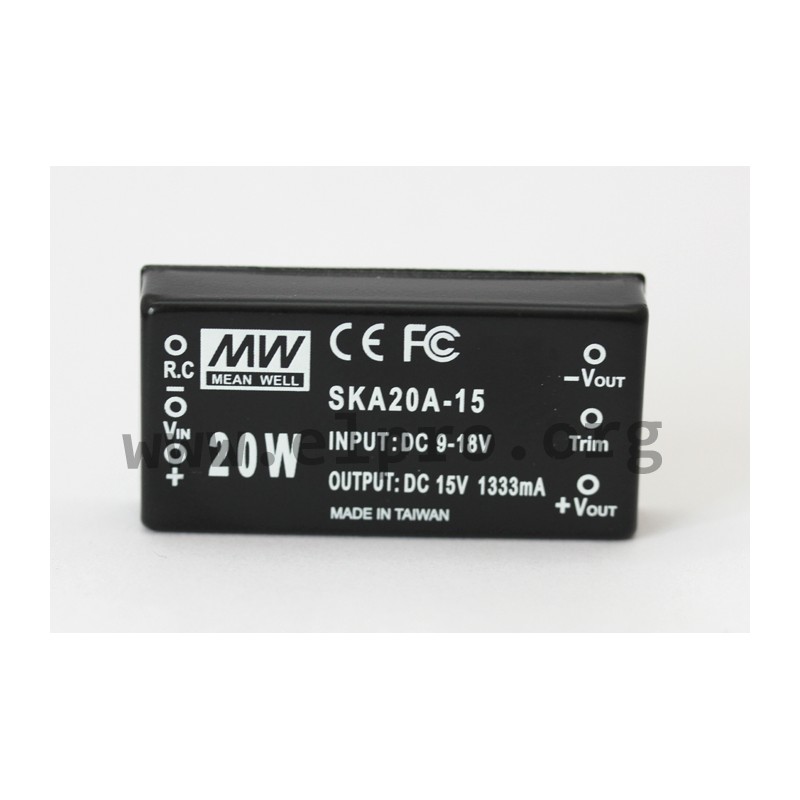

Mean Well DC/DC converter series SKA20

DC/DC converters in a 2"x1" metal housing with 20W, a built-in EMI filter, a remote ON/OFF control, a regulated output voltage and a built-in trimming output. These devices have a galvanic isolation of input/output, an input voltage ratio of 2:1 and are protected against overload, overvoltage as well as short circuit. They are suitable for PCB mounting and comply with EN55032 class A. We offer the following types of this Mean Well series: SKA20A-05, SKA20A-12, SKA20A-15, SKA20B-05, SKA20B-12, SKA20B-15, SKA20C-05, SKA20C-12 and SKA20C-15.

  • single output
  • output: 19,2 to 20W
  • overload protection: 110 to 180%
  • withstand voltage: 1500V DC
  • operating temperature: -40 to +85°C
  • weight: 31,2g

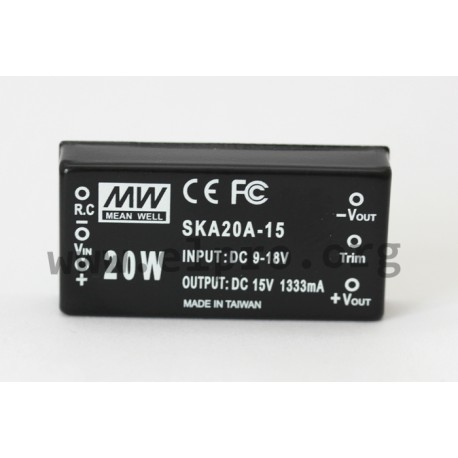

Meanwell SKA20 series

SKA20B-15

36313 SKA20B-15 SKA20B-15 4711287475974 Mean Well DC/DC converter series SKA20. DC/DC converters in a 2"x1" metal housing with 20W, a built-in EMI filter, a remote ON/OFF control, a regulated output voltage and a built-in trimming output. These devices have a galvanic isolation of input/output, an input voltage ratio of 2:1 and are protected against overload, overvoltage as well as short circuit. They are suitable for PCB mounting and comply with EN55032 class A. We offer the following types of this Mean Well series: SKA20A-05, SKA20A-12, SKA20A-15, SKA20B-05, SKA20B-12, SKA20B-15, SKA20C-05, SKA20C-12 and SKA20C-15. single output output: 19,2 to 20W overload protection: 110 to 180% withstand voltage: 1500V DC operating temperature: -40 to +85°C weight: 31,2g

Specifications

manufacturer
Manufacturer's name SKA20B-15
GTIN 4711287475974
Input voltage [V] 18...36
Output voltage [V] 15
Output current range [mA] 133...1333
Efficiency [%] 89,5
Ripple [mVp-p] 60
Data Sheet

Unit price

23,89 €

Volume discounts

Quantity Unit price
50 + 22,29 €

Stock: 10
Further delivery:
CW 18/2025
