SKE15B-12

DC/DC-converter-modules SKE15 by Meanwell

• output: 15 W
• 2" x 2" housing
• single output
• input voltage range 2:1
• for direct PCB mounting
• DC decoupling of input and output
• regulated output voltage
• short-circuit proof
• 160 to 250% over load protection
• withstand voltage: 1000V DC
• operating temperature: -25 to +71°C
• by Mean Well
• weight: 65g

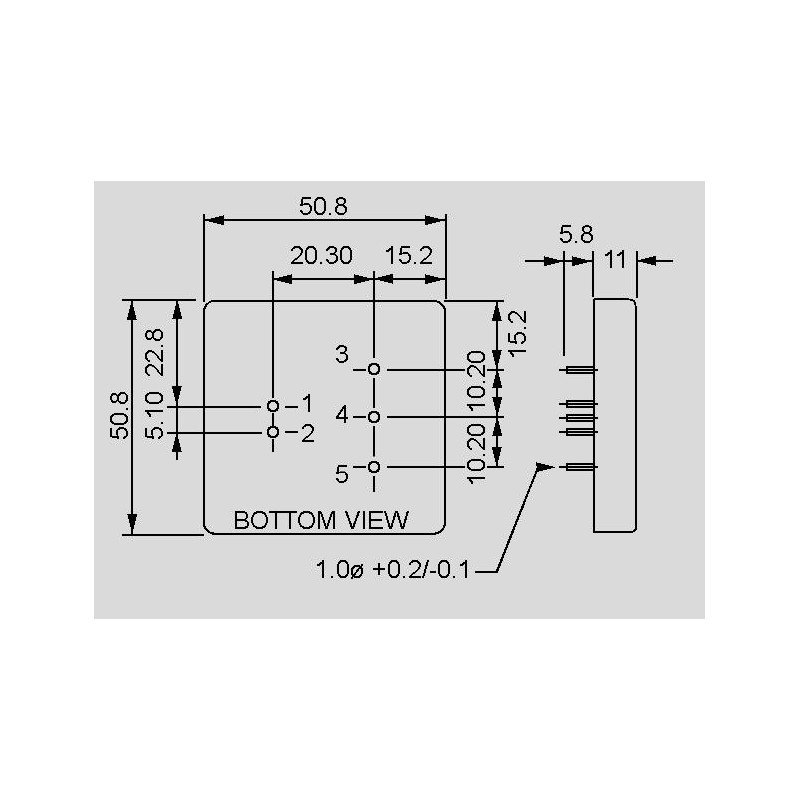

• pin assignment:
pin 1: +UIN
pin 2: -UIN
pin 3: +UOUT
pin 4: -
pin 5: -UOUT

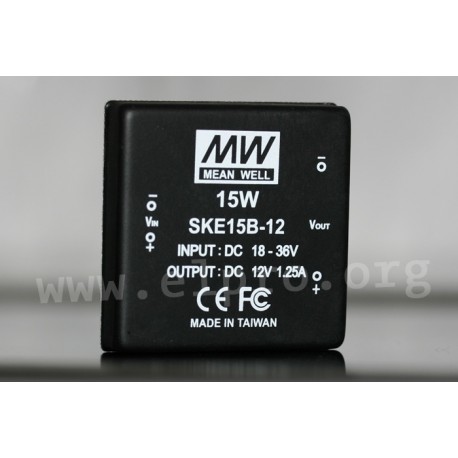

Meanwell SKE15 series

SKE15B-12

32313 SKE15B-12 SKE15B-12 4711287476360 DC/DC-converter-modules SKE15 by Meanwell. • output: 15 W• 2" x 2" housing• single output• input voltage range 2:1• for direct PCB mounting• DC decoupling of input and output• regulated output voltage• short-circuit proof• 160 to 250% over load protection• withstand voltage: 1000V DC• operating temperature: -25 to +71°C• by Mean Well• weight: 65g • pin assignment:pin 1: +UINpin 2: -UINpin 3: +UOUTpin 4: -pin 5: -UOUT

Specifications

manufacturer
Manufacturer's name SKE15B-12
GTIN 4711287476360
Input voltage [V] 18...36
Output voltage [V] 12
Output current range [mA] 125...1250
Efficiency [%] 82
Ripple [mVp-p] 60
Data Sheet

Unit price

18,19 €

Stock: 0
Further delivery:
CW 22/2025
