SI06W8-15

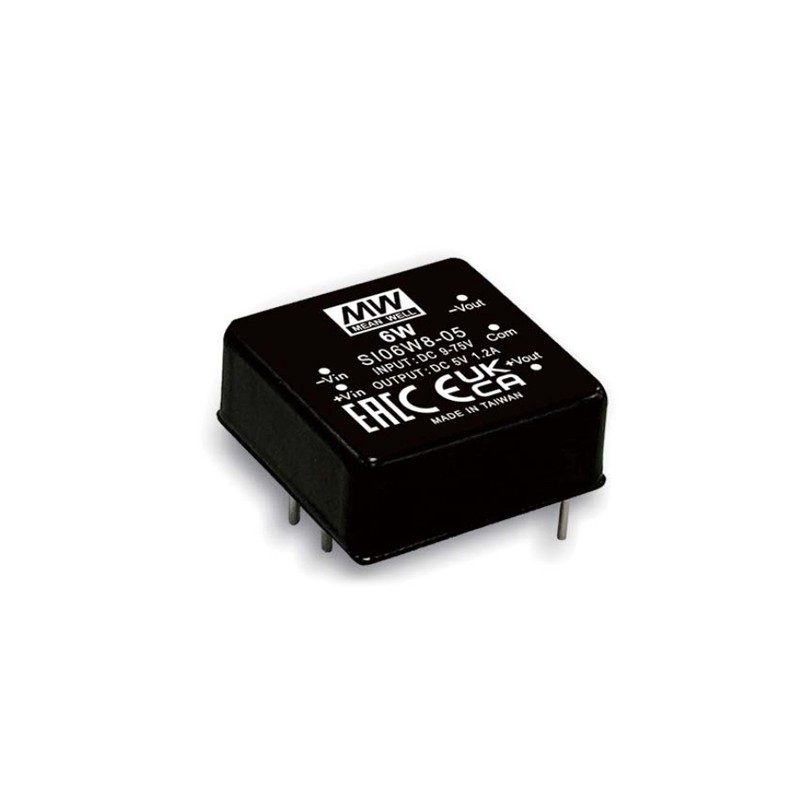

Mean Well DC/DC converter series SI06W8

Converter modules in a 1"x1" housing with 6W, an input voltage ratio of 8:1 and a regulated output. These devices are suitable for PCB mounting and do not require a minimum load. They are protected against overload, short circuit (continuous) as well as overvoltage and comply with EN55032 class A as well as EN55032 class B. We offer the following types of this Mean Well series: SI06W8-03, SI06W8-05, SI06W8-09, SI06W8-12, SI06W8-15 and SI06W8-24.

  • single output
  • output: 6W
  • output voltage tolerance: ±2%
  • maximal ripple and noise: 100mVpp
  • withstand voltage: 3000V DC
  • connection type: THT
  • operating temperature: -40 to +90°C
  • dimensions: 25,4x25,4x10,2mm
  • weight: 20g

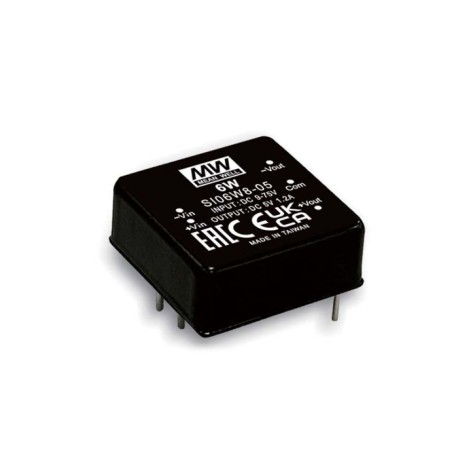

SI06W8-15, Mean Well DC/DC converters, 6W, 1"x1", SI06W8 series

SI06W8-15

244417 SI06W8-15 SI06W8-15 Mean Well DC/DC converter series SI06W8. Converter modules in a 1"x1" housing with 6W, an input voltage ratio of 8:1 and a regulated output. These devices are suitable for PCB mounting and do not require a minimum load. They are protected against overload, short circuit (continuous) as well as overvoltage and comply with EN55032 class A as well as EN55032 class B. We offer the following types of this Mean Well series: SI06W8-03, SI06W8-05, SI06W8-09, SI06W8-12, SI06W8-15 and SI06W8-24. single output output: 6W output voltage tolerance: ±2% maximal ripple and noise: 100mVpp withstand voltage: 3000V DC connection type: THT operating temperature: -40 to +90°C dimensions: 25,4x25,4x10,2mm weight: 20g

Specifications

manufacturer
Manufacturer's name SI06W8-15
Input voltage [V] 9...75
Output voltage [V] 15
Efficiency [%] 86
Output current [A] 0,4
Data Sheet

Unit price

9,79 €

Volume discounts

Quantity Unit price
50 + 9,19 €

Stock: 2
Next incoming goods:
CW 04/2025
20 units

Further delivery:
CW 22/2025
