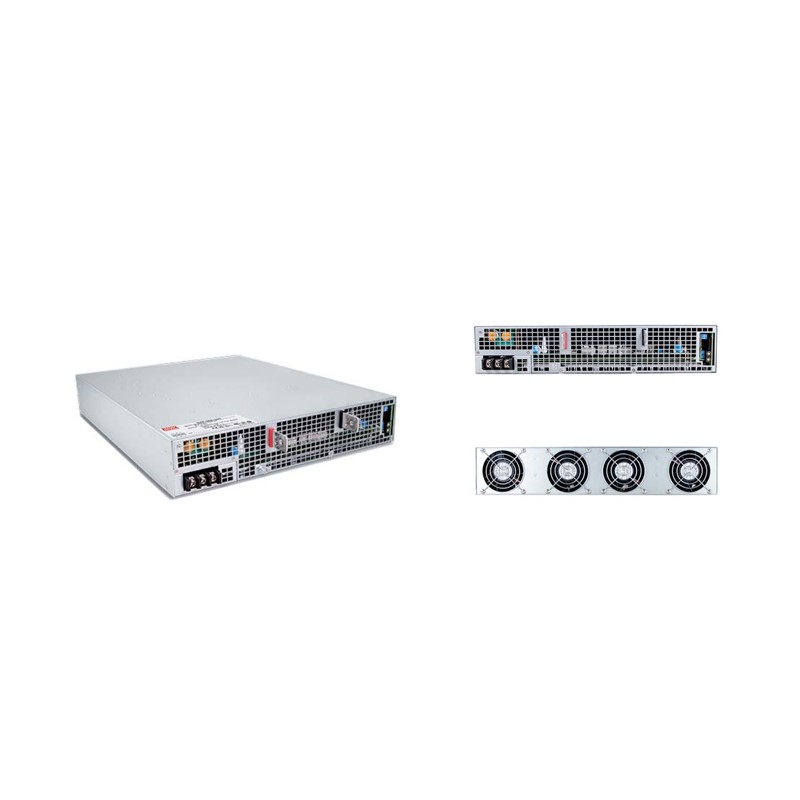

SHP-30K-380

Mean Well power supply series SHP-30K-HV

Switching power supplies in an enclosed housing with 30kW, a 3-phase AC input, protection class I, a DC OK signal and fans. These devices have a built-in active PFC function, a parallel function (up to 12 units / >300kW) and are protected against overrload, overvoltage, fan fail, overtemperature as well as short circuit. They are programmable (output voltage ~50 to 120% / output current ~1 to 100%), have a built-in CAN bus interface and comply with EN62368-1, EN55032 class A as well as EN55011 class A. We offer the following types of this Mean Well series: SHP-30K-55, SHP-30K-115, SHP-30K-230 and SHP-30K-380.

  • single output
  • output: 19000 to 30000W
  • input voltage: 340 to 530V AC (47 to 63Hz)
  • maximal input inrush current: 80A
  • leakage current: <13mA
  • withstand voltage I/P-O/P: 4250V AC
  • withstand voltage I/P-FG: 3000V AC
  • withstand voltage O/P-FG: 3000V AC
  • connection type: screw terminal
  • operating temperature: -40 to +85°C
  • dimensions: 540x424x83,5mm
  • weight: 23,4kg
SHP-30K-380, Mean Well switching power supplies, 30000W, parallel function, SHP-30K-HV series

SHP-30K-380

244401 SHP-30K-380 SHP-30K-380 Mean Well power supply series SHP-30K-HV. Switching power supplies in an enclosed housing with 30kW, a 3-phase AC input, protection class I, a DC OK signal and fans. These devices have a&nbsp;built-in active PFC function, a parallel function (up to 12 units / &gt;300kW) and are protected&nbsp;against overrload,&nbsp;overvoltage, fan fail, overtemperature as well as short circuit. They are programmable (output voltage ~50 to 120% / output current&nbsp;~1 to 100%), have a built-in CAN bus interface and comply with EN62368-1, EN55032 class A as well as EN55011 class A. We offer the following types of this Mean Well series:&nbsp;SHP-30K-55, SHP-30K-115, SHP-30K-230 and SHP-30K-380. single output output: 19000 to 30000W input voltage: 340 to 530V AC (47 to 63Hz) maximal input inrush current: 80A leakage current: &lt;13mA withstand voltage I/P-O/P: 4250V AC withstand voltage I/P-FG: 3000V AC withstand voltage O/P-FG: 3000V AC connection type:&nbsp;screw terminal operating temperature: -40 to +85&deg;C dimensions: 540x424x83,5mm weight: 23,4kg

Specifications

manufacturer
Manufacturer's name SHP-30K-380
Output voltage [V] 380
Efficiency [%] 97
Output current [A] 90
Output voltage tolerance: [%] ±1
Output power [W] 30000
Ripple [mVp-p] 2000
Data Sheet

Unit price

6.749,39 €

Stock: 2
Further delivery:
CW 16/2025
