SHP-10K-55L-PM

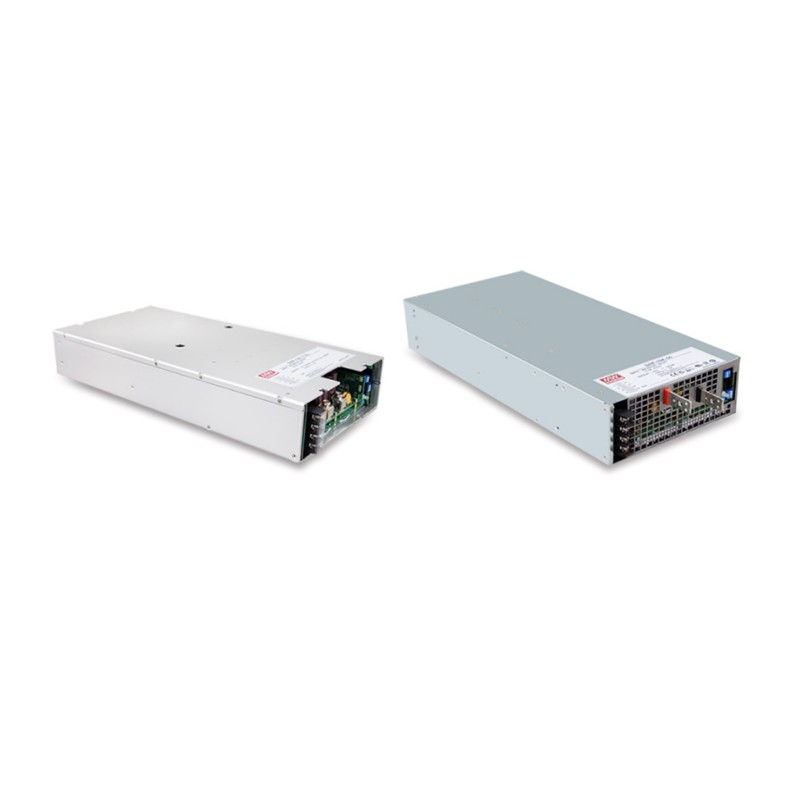

Mean Well power supply series SHP-10K

Switching power supplies in an enclosed housing with 10.000W, a programmable output voltage, a parallel function and a remote ON/OFF control. These devices have a built-in active PFC function and are protected against overload, overvoltage, fan fail, overtemperature as well as short circuit. They have a PMBus (SHP-10K_-PM) or a Modbus (SHP-10K_-MOD) interface and comply with EN62368-1, EN55011 class A/B as well as EN55032 class A. We offer the following types of this Mean Well series: SHP-10K-55-PM, SHP-10K-55-MOD, SHP-10K-55L-PM, SHP-10K-55L-MOD, SHP-10K-115-PM, SHP-10K-115-MOD, SHP-10K-115L-PM, SHP-10K-115L-MOD, SHP-10K-230-PM, SHP-10K-230-MOD, SHP-10K-230L-PM, SHP-10K-230L-MOD, SHP-10K-380-PM, SHP-10K-380-MOD, SHP-10K-380L-PM and SHP-10K-380L-MOD.

  • single output
  • output: 7200 to 10000W
  • input voltage: 340 to 530V AC (47 to 63Hz)
  • maximal input inrush current: 40A
  • leakage current: <6,5mA
  • overload protection: 100 to 105%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1250V AC
  • operating temperature: -30 to +70°C
  • weight: 11,9kg

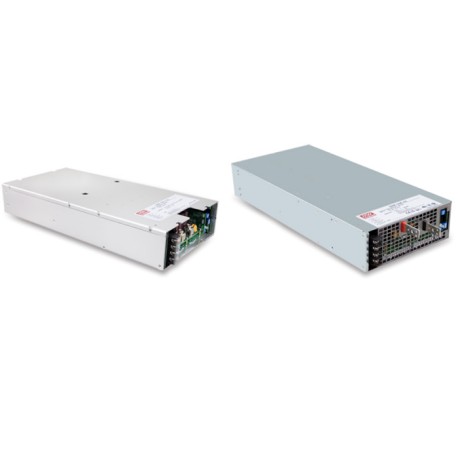

SHP-10K-55L-PM, Mean Well switching power supplies, 10000W, parallel function, PMBus, Modbus, SHP-10K series

SHP-10K-55L-PM

244507 SHP-10K-55L-PM SHP-10K-55L-PM Mean Well power supply series SHP-10K. Switching power supplies in an enclosed housing with 10.000W, a programmable output voltage, a parallel function and a remote ON/OFF control. These devices have a built-in active PFC function and are protected against overload, overvoltage, fan fail, overtemperature as well as short circuit. They have a PMBus (SHP-10K_-PM) or a Modbus (SHP-10K_-MOD) interface and comply with EN62368-1, EN55011 class A/B as well as EN55032 class A. We offer the following types of this Mean Well series: SHP-10K-55-PM, SHP-10K-55-MOD, SHP-10K-55L-PM, SHP-10K-55L-MOD, SHP-10K-115-PM, SHP-10K-115-MOD, SHP-10K-115L-PM, SHP-10K-115L-MOD, SHP-10K-230-PM, SHP-10K-230-MOD, SHP-10K-230L-PM, SHP-10K-230L-MOD, SHP-10K-380-PM, SHP-10K-380-MOD, SHP-10K-380L-PM and SHP-10K-380L-MOD. single output output: 7200 to 10000W input voltage: 340 to 530V AC (47 to 63Hz) maximal input inrush current: 40A leakage current: &lt;6,5mA overload protection: 100 to 105% withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1250V AC operating temperature: -30 to +70°C weight: 11,9kg

Specifications

manufacturer
Manufacturer's name SHP-10K-55L-PM
Output voltage [V] 55
Efficiency [%] 94,5
Output current [A] 131
Output power [W] 7200
Ripple [mVp-p] 0,3
Data Sheet

Unit price

3.038,49 €

Stock: 0
Further delivery:
CW 12/2025

Minimum order quantity 200 units or
multiples of 200.
