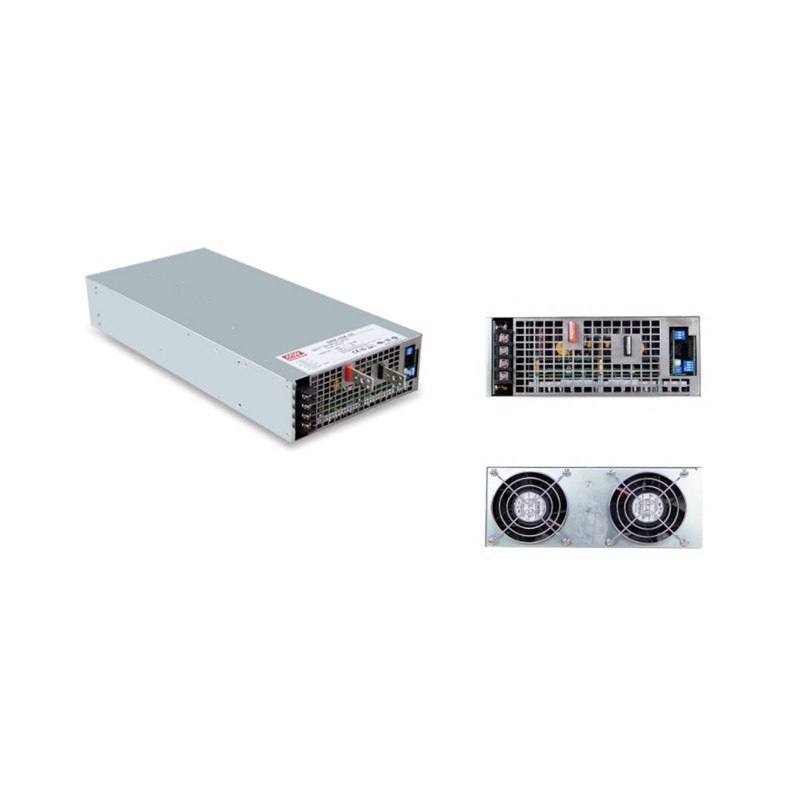

SHP-10K-380

Mean Well power supply series SHP-10K

Switching power supplies in an enclosed housing with 10.000W, a programmable output voltage, a parallel function (up to 4 units / max. 40kW), a built-in remote ON/OFF control, a 3-phase AC input and an auxiliary power. These devices have a built-in active PFC function and are protected against overload, fan fail, overvoltage, overtemperature as well as short circuit. They are air-cooled (SHP-10K_) or water-cooled (SHP-10K-_L), have a CAN bus interface and comply with EN62368-1, EN55032 class A, EN55032 class B, EN55011 class A as well as EN55011 class B. We offer the following types of this Mean Well series: SHP-10K-55, SHP-10K-55L, SHP-10K-115, SHP-10K-115L, SHP-10K-230, SHP-10K-230L, SHP-10K-380 and SHP-10K-380L.

  • single output
  • output: 7200 to 10.000W
  • input voltage: 340 to 530V AC (47 to 63Hz)
  • input inrush current: 40A
  • leakage current: <6,5mA
  • overload protection: 100 to 105%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand votlage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1250V AC
  • operating temperature: -30 to +70°C
  • weight: 11,9kg

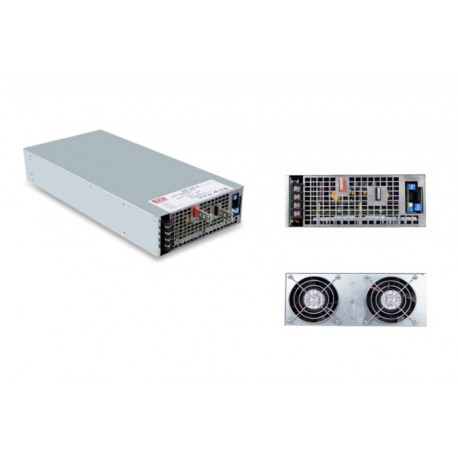

SHP-10K-380, Mean Well switching power supplies, 10000W, parallel function, SHP-10K series

SHP-10K-380

242178 SHP-10K-380 SHP-10K-380 4711287486239 Mean Well power supply series SHP-10K. Switching power supplies in an enclosed housing with 10.000W, a programmable output voltage, a parallel function (up to 4 units / max. 40kW), a built-in&nbsp;remote ON/OFF&nbsp;control, a 3-phase AC input and an auxiliary power. These devices have a built-in active PFC function and are protected against overload, fan fail, overvoltage, overtemperature as well as short circuit. They are air-cooled&nbsp;(SHP-10K_) or water-cooled (SHP-10K-_L), have a CAN bus interface and comply with&nbsp;EN62368-1, EN55032 class A, EN55032 class B, EN55011 class A as well as EN55011 class B. We offer the following types of this Mean Well series:&nbsp;SHP-10K-55,&nbsp;SHP-10K-55L,&nbsp;SHP-10K-115,&nbsp;SHP-10K-115L,&nbsp;SHP-10K-230,&nbsp;SHP-10K-230L,&nbsp;SHP-10K-380 and&nbsp;SHP-10K-380L. single output output: 7200 to 10.000W input voltage: 340 to 530V AC (47 to 63Hz) input inrush current: 40A leakage current: &lt;6,5mA overload protection: 100 to 105% withstand voltage I/P-O/P: 3750V AC withstand votlage I/P-FG: 2000V AC withstand voltage O/P-FG: 1250V AC operating temperature: -30 to +70&deg;C weight: 11,9kg

Specifications

manufacturer
Manufacturer's name SHP-10K-380
GTIN 4711287486239
Output voltage [V] 380
Efficiency [%] 96,5
Output current [A] 26,3
Output power [W] 10.000
Ripple [mVp-p] 1
Data Sheet

Unit price

2.622,59 €

Stock: 5
Further delivery:
CW 16/2025
