SGAS60E05-P1J

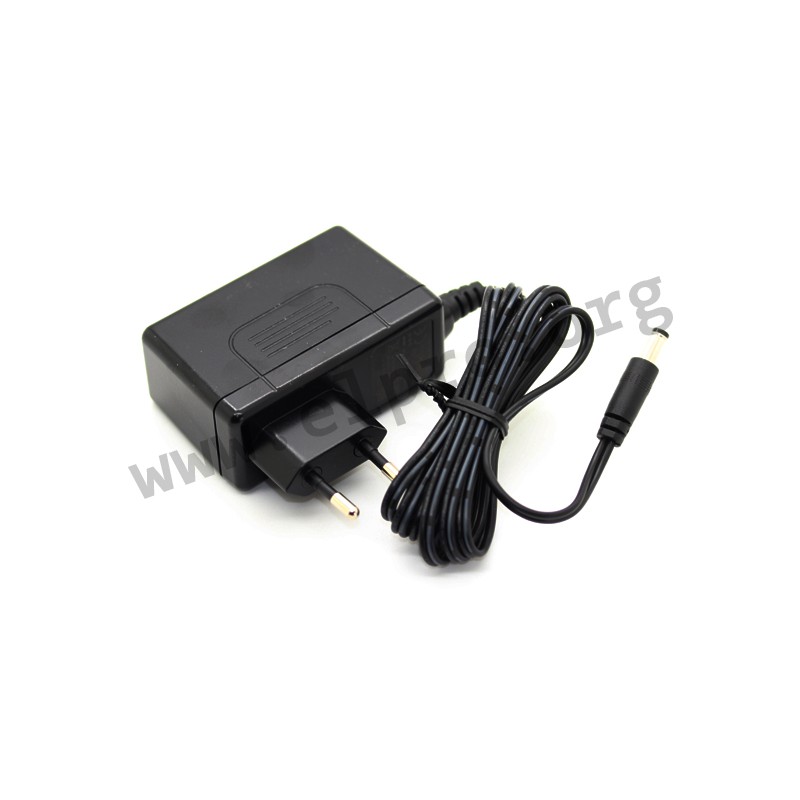

Mean Well plug-in power supply series SGAS60E

Plug-in switching power supplies in a plastic housing with 60W, a universal input, energy efficiency Level VI, protection class II and a Europlug. These devices have a high efficiency and are protected against overload, overvoltage as well as short circuit. They have a low no-load power and comply with EN62368-1, EN55032 class B, EN61000-3-2 class A as well as EN61000-3-3. We offer the following types of this Mean Well series: SGAS60E05-P1J, SGAS60E12-P1J, SGAS60E15-P1J, SGAS60E24-P1J and SGAS60E48-P1J.

  • single output
  • output: 30 to 60W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 50A
  • no-load power: <0,15W
  • input plug: Europlug
  • output plug: 5,5x2,1mm coaxial connector
  • operating temperature: -20 to +70°C
  • weight: 208g

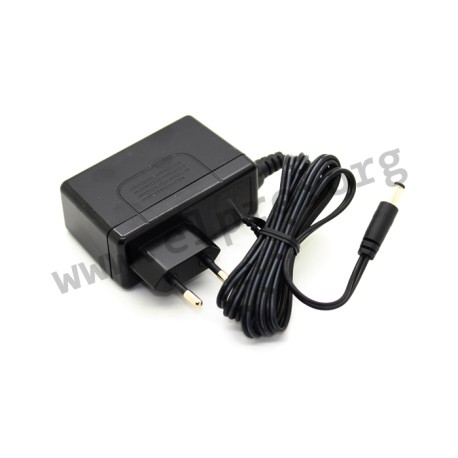

SGAS60E05-P1J, Mean Well plug-in switching power supplies, 60W, energy efficiency Level VI, SGAS60E series

SGAS60E05-P1J

241271 SGAS60E05-P1J SGAS60E05-P1J 4711287468884 Mean Well plug-in power supply series SGAS60E. Plug-in switching power supplies in a plastic housing with 60W, a universal input, energy efficiency Level VI, protection class II and a Europlug. These devices have a high efficiency and are protected against overload, overvoltage as well as short circuit. They have a low no-load power and comply with EN62368-1, EN55032 class B, EN61000-3-2 class A as well as EN61000-3-3. We offer the following types of this Mean Well series: SGAS60E05-P1J, SGAS60E12-P1J, SGAS60E15-P1J, SGAS60E24-P1J and SGAS60E48-P1J. single output output: 30 to 60W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 50A no-load power: &lt;0,15W input plug: Europlug output plug: 5,5x2,1mm coaxial connector operating temperature: -20 to +70°C weight: 208g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name SGAS60E05-P1J
GTIN 4711287468884
Output voltage [V] 5
Efficiency [%] 85
Output current range [A] 0...6
Output voltage tolerance: [%] 5
Output power [W] 30
Ripple [mVp-p] 80
Data Sheet

Unit price

23,99 €

Volume discounts

Quantity Unit price
50 + 22,39 €

Stock: 0
Next incoming goods:
CW 49/2024
45 units

Further delivery:
CW 18/2025
