SGA60E09-P1J

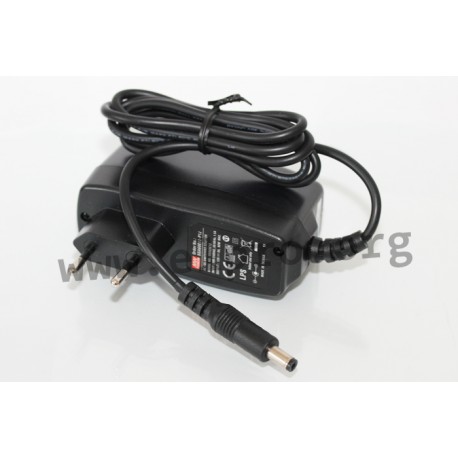

Mean Well plug-in power supply series SGA60E

Plug-in switching power supplies in a slim housing with 60W, a europlug, ene3rgy efficiency Level V (SGA60E05-P1J) / VI, insulation class II, an LED indicator for power on, a universal input and a low no-load power. These devices are protected against overload (auto recovery), overvoltage as well as short circuit and comply with EN62368-1, EN55032 class B, EN61000-3-2 class A as well as EN61000-3-3. We offer the following types of this Mean Well series: SGA60E05-P1J, SGA60E07-P1J, SGA60E09-P1J, SGA60E12-P1J, SGA60E15-P1J, SGA60E18-P1J, SGA60E24-P1J and SGA60E48-P1J.

  • single output
  • output: 30 to 60W
  • input voltage: 90 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 80A
  • operating temperature: -20 to +50°C
  • input plug: Euro

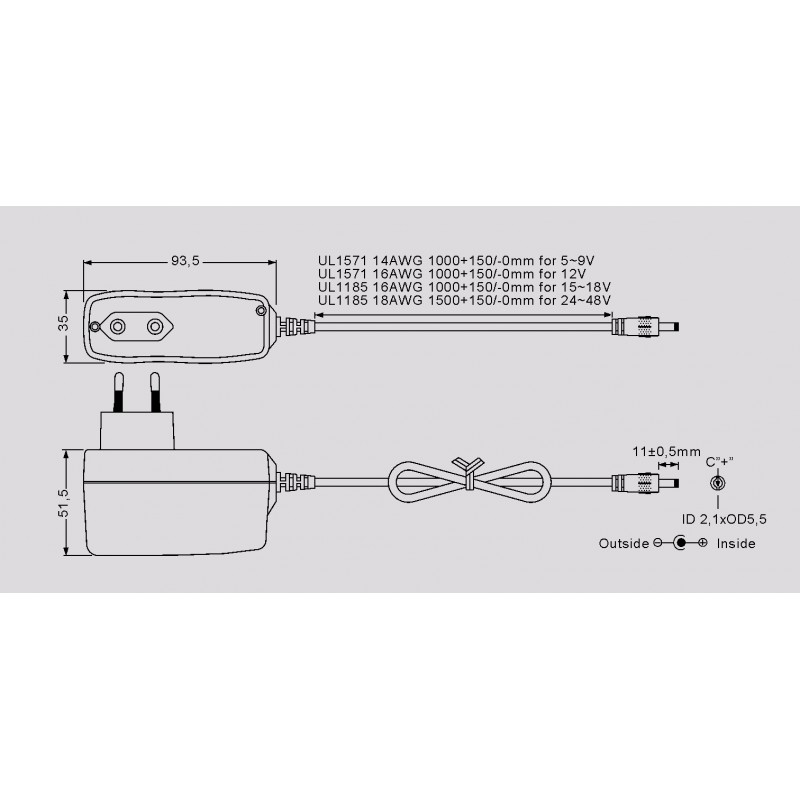

  • output plug: 2,1x5,5mm coaxial
  • weight: 250g
Mean Well SGA60E series

SGA60E09-P1J

104852 SGA60E09-P1J SGA60E09-P1J 4711287469621 Mean Well plug-in power supply series SGA60E. Plug-in switching power supplies in a slim housing with 60W, a europlug, ene3rgy efficiency Level V (SGA60E05-P1J) / VI, insulation class II, an LED indicator for power on, a universal input and a low no-load power. These devices are protected against overload (auto recovery), overvoltage as well as short circuit and comply with EN62368-1, EN55032 class B, EN61000-3-2 class A as well as EN61000-3-3. We offer the following types of this Mean Well series: SGA60E05-P1J, SGA60E07-P1J, SGA60E09-P1J, SGA60E12-P1J, SGA60E15-P1J, SGA60E18-P1J, SGA60E24-P1J and SGA60E48-P1J. single output output: 30 to 60W input voltage: 90 to 264V AC (47 to 63Hz) maximal input inrush current: 80A operating temperature: -20 to +50°C input plug: Euro output plug: 2,1x5,5mm coaxial weight: 250g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name SGA60E09-P1J
GTIN 4711287469621
Output voltage [V] 9
Efficiency [%] 87
Output current [A] 0...5,5
Output voltage tolerance: [%] 5
Output power [W] 49,5
Ripple [mVp-p] 80
Data Sheet

Unit price

24,19 €

Volume discounts

Quantity Unit price
50 + 22,49 €

Stock: 40
