SGA40E18-P1J

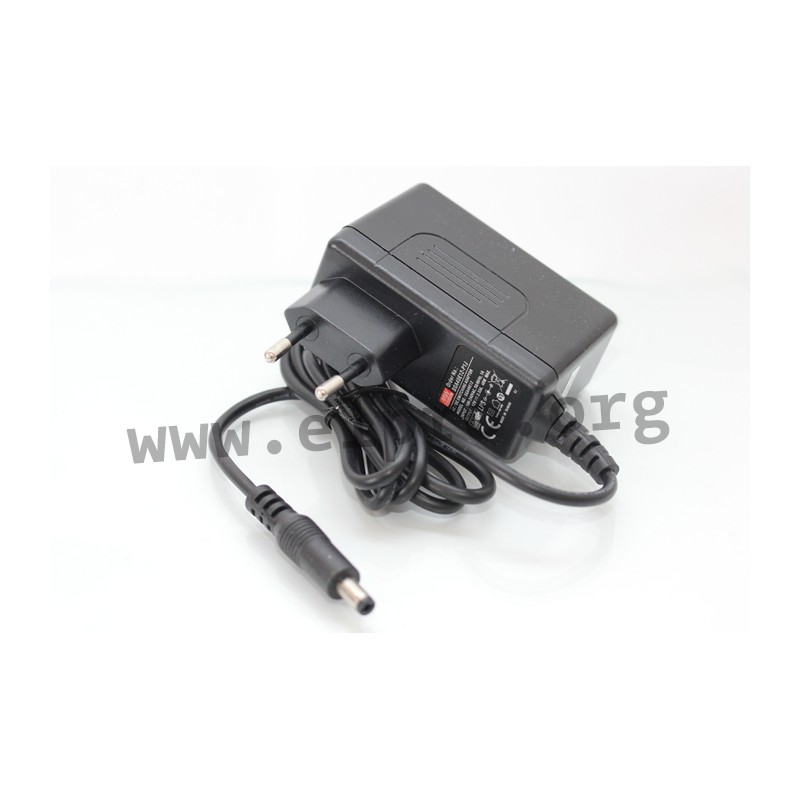

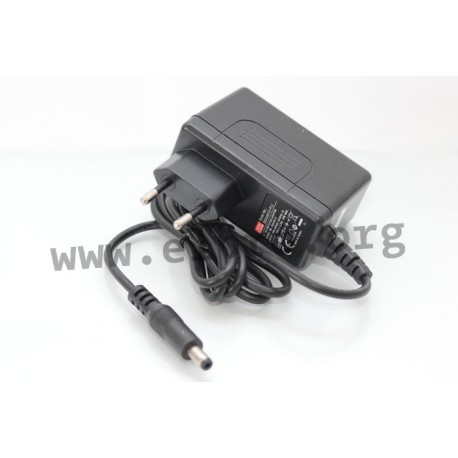

Mean Well plug-in power supply series SGA40E

Plug-in switching power supplies in a slim plastic housing with 40W, a europlug, a universal input, a low no-load power, energy efficiency Level VI and insulation class II. These devices are protected against overload (auto recovery), overvoltage as well as short circuit and comply with EN62368-1, EN55032 class B, EN61000-3-2 class A as well as EN61000-3-3. We offer the following types of this Mean Well series: SGA40E05-P1J, SGA40E09-P1J, SGA40E12-P1J, SGA40E15-P1J, SGA40E18-P1J, SGA40E24-P1J and SGA40E48-P1J.

  • single output
  • output: 25 to 40W
  • input voltage: 90 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 70A
  • no-load power: <0,075W
  • input plug: Euro
  • output plug: 2,1x5,5mm coaxial
  • operating temperature: -20 to +50°C
  • weight: 165g
Mean Well SGA40E series

SGA40E18-P1J

104847 SGA40E18-P1J SGA40E18-P1J 4711287469508 Mean Well plug-in power supply series SGA40E. Plug-in switching power supplies in a slim plastic housing with 40W, a&nbsp;europlug, a universal input, a low no-load power, energy&nbsp;efficiency Level VI and&nbsp;insulation class II. These devices are protected against overload (auto recovery), overvoltage as well as short circuit and comply with&nbsp;EN62368-1, EN55032 class B, EN61000-3-2 class A as well as EN61000-3-3. We offer the following types of this Mean Well series:&nbsp;SGA40E05-P1J, SGA40E09-P1J, SGA40E12-P1J, SGA40E15-P1J, SGA40E18-P1J, SGA40E24-P1J and SGA40E48-P1J. single output output: 25 to 40W input voltage: 90 to 264V AC (47 to 63Hz) maximal input inrush current: 70A no-load power: &lt;0,075W input plug: Euro output plug: 2,1x5,5mm&nbsp;coaxial operating temperature: -20 to +50&deg;C weight: 165g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name SGA40E18-P1J
GTIN 4711287469508
Output voltage [V] 18
Efficiency [%] 87
Output current [A] 0...2,22
Output voltage tolerance: [%] 2
Output power [W] 40
Ripple [mVp-p] 120
Data Sheet

Unit price

20,79 €

Volume discounts

Quantity Unit price
50 + 19,29 €

Stock: 147
