SFTN02N-12

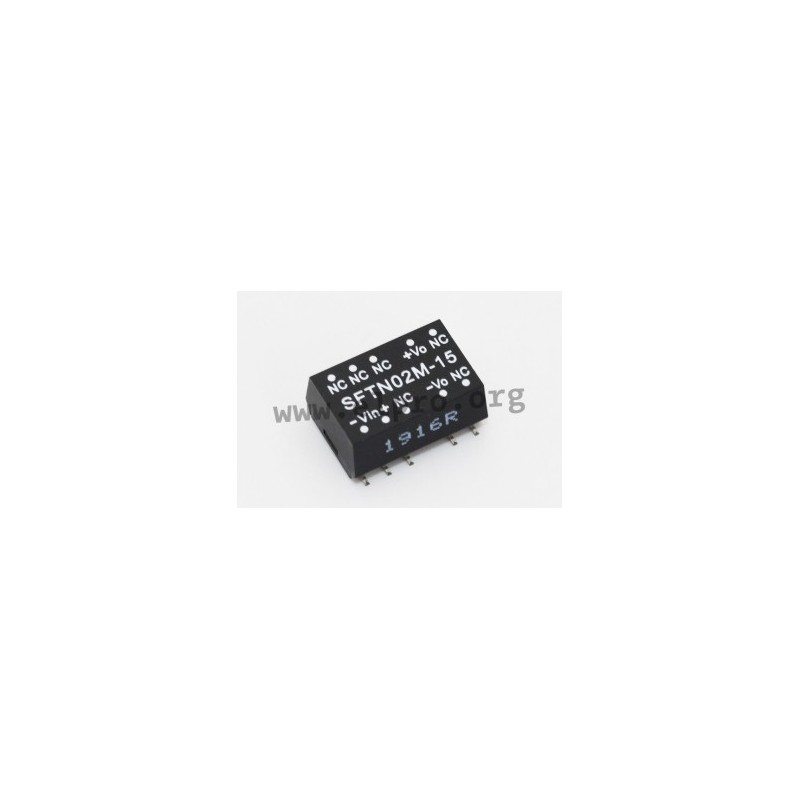

Mean Well DC/DC converter series SFTN02

Unregulated DC/DC converters in an SMD housing with 2W and a high efficiency (up to 82%). These devices are suitable for direct PCB mounting and are protected against short circuit. They are reasonably priced and comply with EN55032 class A, EN61000-4-2 as well as EN61000-4-3. We offer the following types of this Mean Well series: SFTN02L-05, SFTN02L-12, SFTN02L-15, SFTN02M-05, SFTN02M-12, SFTN02M-15, SFTN02N-05, SFTN02N-12 and SFTN02N-15.

  • single output
  • output: 2W
  • output voltage tolerance: ±2%
  • maximal ripple and noise: 75mVpp
  • withstand voltage: 3000V DC
  • operating temperature: -40 to +100°C
  • weight: 1,2g

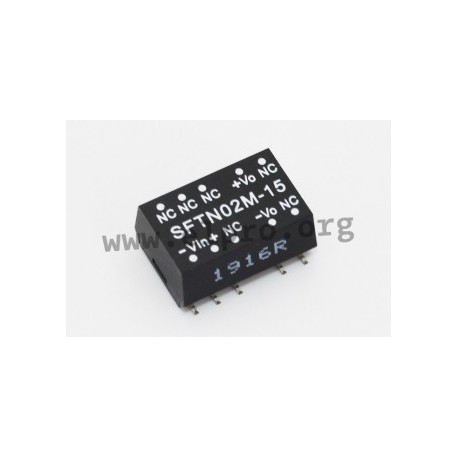

SFTN02N-12, Mean Well DC/DC converters, 2W, SMD, SFTN02 series

SFTN02N-12

113278 SFTN02N-12 SFTN02N-12 4711287474939 Mean Well DC/DC converter series SFTN02. Unregulated DC/DC converters in an SMD housing with 2W and a high efficiency (up to 82%). These devices are suitable for direct PCB mounting and are protected against short circuit. They are reasonably priced and comply with EN55032 class A, EN61000-4-2 as well as EN61000-4-3. We offer the following types of this Mean Well series: SFTN02L-05, SFTN02L-12, SFTN02L-15, SFTN02M-05, SFTN02M-12, SFTN02M-15, SFTN02N-05, SFTN02N-12 and SFTN02N-15. single output output: 2W output voltage tolerance: ±2% maximal ripple and noise: 75mVpp withstand voltage: 3000V DC operating temperature: -40 to +100°C weight: 1,2g

Specifications

manufacturer
Manufacturer's name SFTN02N-12
GTIN 4711287474939
Input voltage [V] 21,6...26,4
Output voltage [V] 12
Output current range [mA] 33...167
Efficiency [%] 79
Data Sheet

Unit price

4,99 €

Volume discounts

Quantity Unit price
50 + 4,49 €

Stock: 0
Next incoming goods:
CW 03/2025
50 units

Further delivery:
CW 17/2025
