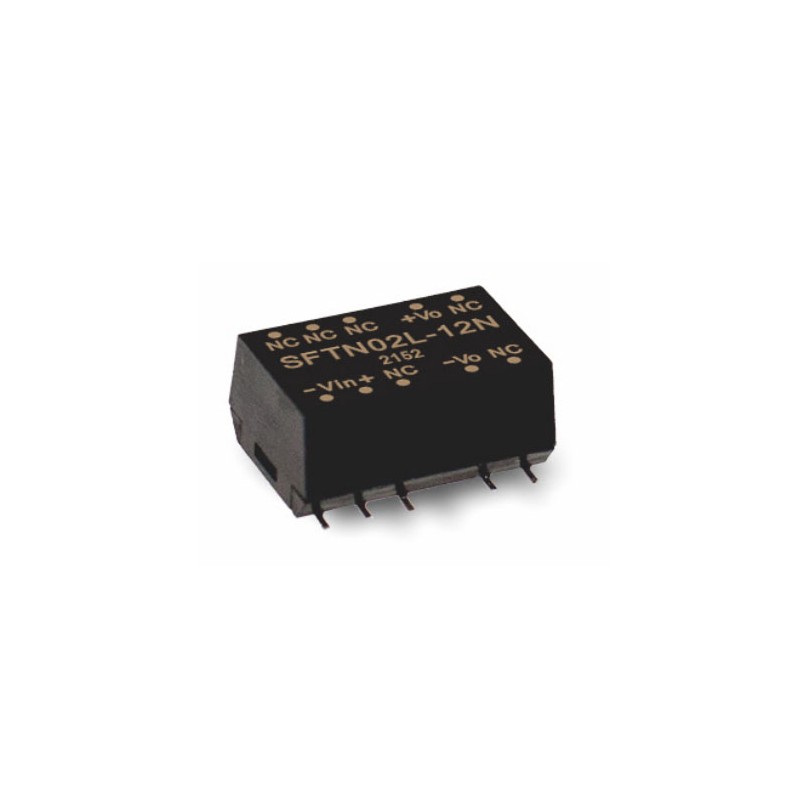

SFTN02M-12N

Mean Well DC/DC converter series SFTN02-N

Unregulated DC/DC converters in an SMD housing with 2W and an input voltage ratio of 1:1. These devices are inexpensive and are protected against short circuit. They are suitable for direct PCB mounting and comply with EN55032. We offer the following types of this Mean Well series: SFTN02L-05N, SFTN02L-12N, SFTN02L-15N, SFTN02M-05N, SFTN02M-12N, SFTN02M-15N, SFTN02N-05N, SFTN02N-12N and SFTN02N-15N.

  • single output
  • output: 2W
  • output voltage tolerance: ±5%
  • maximal ripple and noise: 150mVpp
  • withstand voltage: 3000V DC
  • operating temperature: -40 to +85°C
  • weight: 1,6g

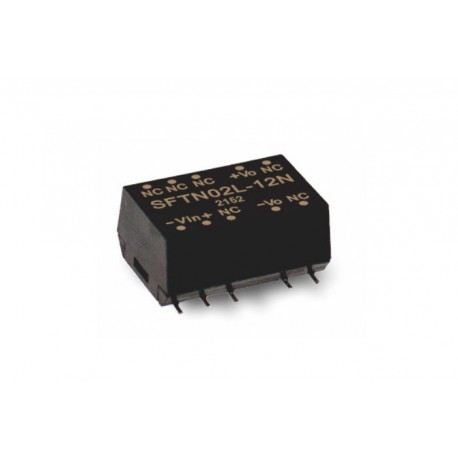

SFTN02M-12N, Mean Well DC/DC converters, 2W, SMD, SFTN02-N series

SFTN02M-12N

241356 SFTN02M-12N SFTN02M-12N 4711287474991 Mean Well DC/DC converter series SFTN02-N. Unregulated DC/DC converters in an SMD housing with 2W and an input voltage ratio of 1:1. These devices are inexpensive and are protected against short circuit. They are suitable for direct PCB mounting and comply with EN55032. We offer the following types of this Mean Well series: SFTN02L-05N, SFTN02L-12N, SFTN02L-15N, SFTN02M-05N, SFTN02M-12N, SFTN02M-15N, SFTN02N-05N, SFTN02N-12N and SFTN02N-15N. single output output: 2W output voltage tolerance: ±5% maximal ripple and noise: 150mVpp withstand voltage: 3000V DC operating temperature: -40 to +85°C weight: 1,6g

Specifications

manufacturer
Manufacturer's name SFTN02M-12N
GTIN 4711287474991
Output voltage [V] 12
Input voltage range [V] 10,8...13,2
Efficiency [%] 83
Output current [A] 0,167
Data Sheet

Unit price

4,59 €

Volume discounts

Quantity Unit price
50 + 4,19 €

Stock: 24
Further delivery:
CW 17/2025
