SFTN01L-05N

Mean Well DC/DC converter series SFTN01-N

Unregulated DC/DC converters in an SMD housing with 1W and an input voltage ratio of 1:1. These devices are suitable for direct PCB mounting and are protected against short circuit. They are inexpensive and comply with EN55032. We offer the following types of this Mean Well series: SFTN01L-05N, SFTN01L-09N, SFTN01L-12N, SFTN01L-15N, SFTN01M-05N, SFTN01M-09N, SFTN01M-12N, SFTN01M-15N, SFTN01N-05N, SFTN01N-09N, SFTN01N-12N and SFTN01N-15N.

  • single output
  • output: 1W
  • output voltage tolerance: ±5%
  • maximal ripple and noise: 100mVpp
  • withstand voltage: 3000V DC
  • operating temperature: -40 to +100°C
  • weight: 1g

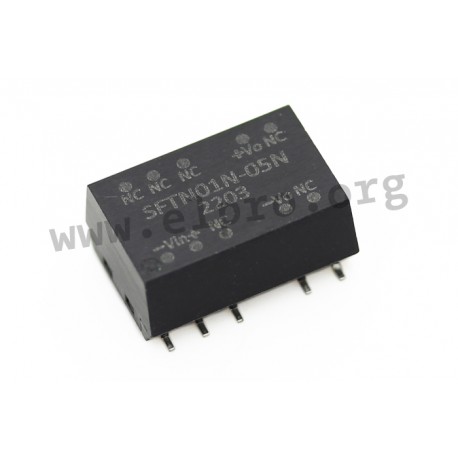

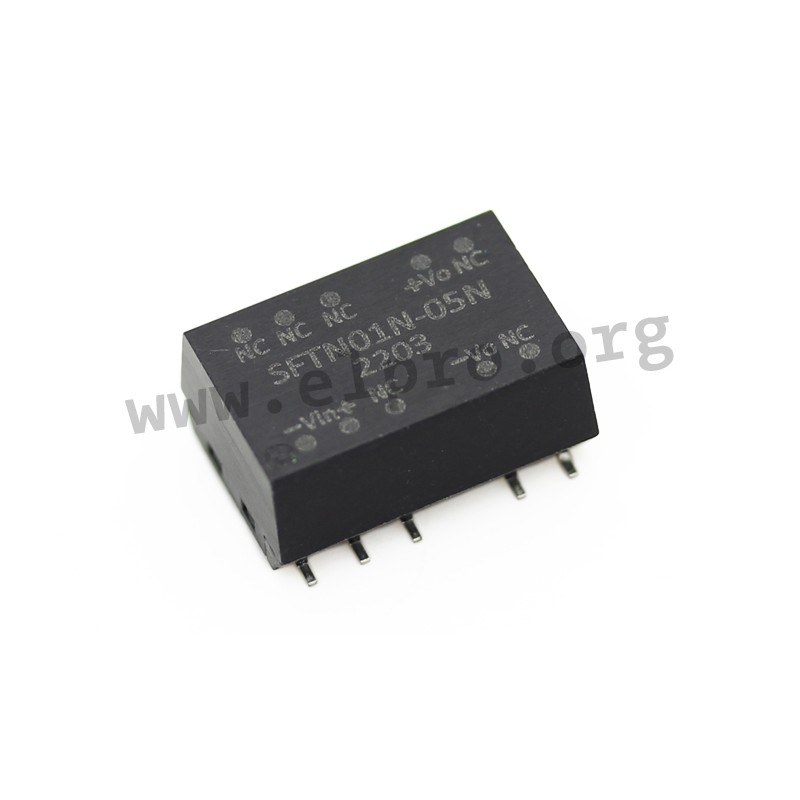

SFTN01L-05N, Mean Well DC/DC converters, 1W, SMD, SFTN01-N series

SFTN01L-05N

241340 SFTN01L-05N SFTN01L-05N 4711287474748 Mean Well DC/DC converter series SFTN01-N. Unregulated DC/DC converters in an SMD housing with 1W and an input voltage ratio of 1:1. These devices are suitable for direct PCB mounting and are protected against short circuit. They are inexpensive and comply with EN55032. We offer the following types of this Mean Well series: SFTN01L-05N, SFTN01L-09N, SFTN01L-12N, SFTN01L-15N, SFTN01M-05N, SFTN01M-09N, SFTN01M-12N, SFTN01M-15N, SFTN01N-05N, SFTN01N-09N, SFTN01N-12N and SFTN01N-15N. single output output: 1W output voltage tolerance: ±5% maximal ripple and noise: 100mVpp withstand voltage: 3000V DC operating temperature: -40 to +100°C weight: 1g

Specifications

manufacturer
Manufacturer's name SFTN01L-05N
GTIN 4711287474748
Output voltage [V] 5
Input voltage range [V] 4,5...5,5
Efficiency [%] 77
Output current [A] 0,2
Data Sheet

Unit price

4,29 €

Volume discounts

Quantity Unit price
50 + 3,89 €

Stock: 1120
Further delivery:
CW 17/2025
