SDR-960-48

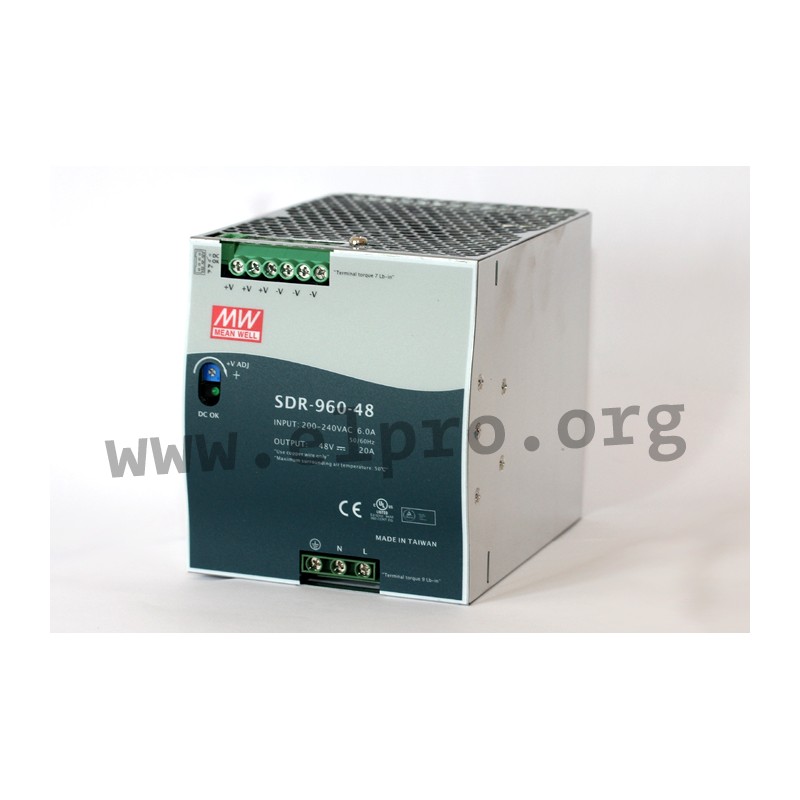

Mean Well DIN rail power supply series SDR-960

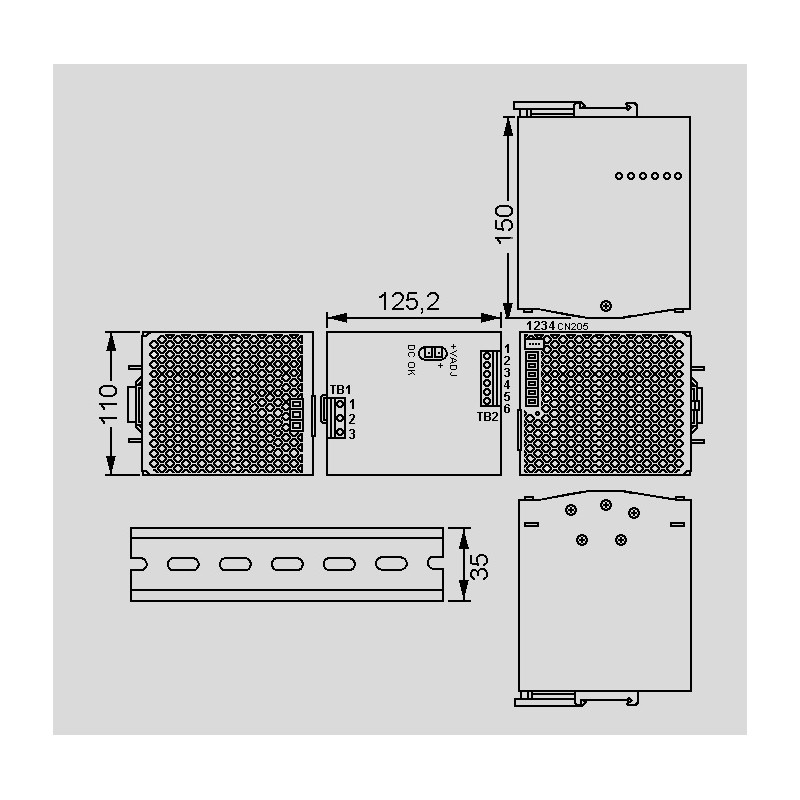

Switching power supplies in a slim housing (110mm width) with 960W, a built-in DC OK relay contact, an LED indicator for power on, a parallel function (3+1, 3840W), a universal input and screw terminals (touch guard). These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for DIN rail mounting, have a fanless design, a high efficiency and comply with EN50082-2, EN61000-6-2, EN62368-1, EN55032, EN61204-3, EN61000-3-2 as well as EN61000-3-3. We offer the following type of this Mean Well series: SDR-960-24 and SDR-960-48.

  • single output
  • output: 960W
  • input voltage: 180 to 264V AC (47 to 63Hz), 254 to 370V DC
  • maximal input inrush current: 50A
  • peak power: 1248W (3s)
  • leakage current: <3,5mA
  • output voltage adjustment: +15%
  • overload protection: 105 to 130%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • weight: 2470g

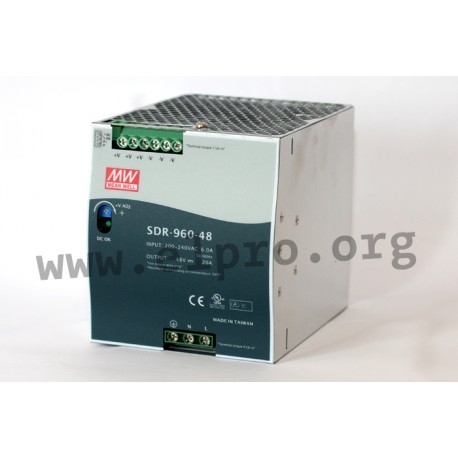

Meanwell SDR-960 series

SDR-960-48

39098 SDR-960-48 SDR-960-48 4711287422459 Mean Well DIN rail power supply series SDR-960. Switching power supplies in a slim housing (110mm width) with 960W, a built-in DC OK relay contact, an LED indicator for power on, a parallel function (3+1, 3840W), a universal input and screw terminals (touch guard). These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for DIN rail mounting, have a fanless design, a high efficiency and comply with EN50082-2, EN61000-6-2, EN62368-1, EN55032, EN61204-3, EN61000-3-2 as well as EN61000-3-3. We offer the following type of this Mean Well series: SDR-960-24 and SDR-960-48. single output output: 960W input voltage: 180 to 264V AC (47 to 63Hz), 254 to 370V DC maximal input inrush current: 50A peak power: 1248W (3s) leakage current: &lt;3,5mA output voltage adjustment: +15% overload protection: 105 to 130% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -30 to +70°C weight: 2470g

Specifications

manufacturer
Manufacturer's name SDR-960-48
GTIN 4711287422459
Output voltage [V] 48
Phase 2 phase
Efficiency [%] 94
Output current range [A] 0...20
Output voltage tolerance: [%] 1
Output power [W] 960
Ripple [mVp-p] 250
Data Sheet

Unit price

206,79 €

Volume discounts

Quantity Unit price
50 + 201,49 €

Stock: 239
Next incoming goods:
CW 07/2025
204 units

Further delivery:
CW 09/2025
