SDR-480P-48

Mean Well DIN rail power supply series SDR-480P

Switching power supplies in an enclosed housing with 480W, a built-in DC OK relay contact, an LED indicator for power on, a universal input, a parallel function (7+1 / 3840W) and screw terminals (touch guard). These devices have a built-in active PFC function and comply with EN61000-6-2, EN50082-2, EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. They are suitable for DIN rail mounting and are protected against overload (auto recovery), overvoltage as well as short circuit. We offer the following types of this Mean Well series: SDR-480P-24 and SDR-480P-48.

  • single output
  • output: 480W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 80A
  • peak power: 720W (3s)
  • leakage current: <0,6mA
  • output voltage adjustment: +15%
  • overload protection: 110 to 150%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -25 to +70°C
  • weight: 1600g

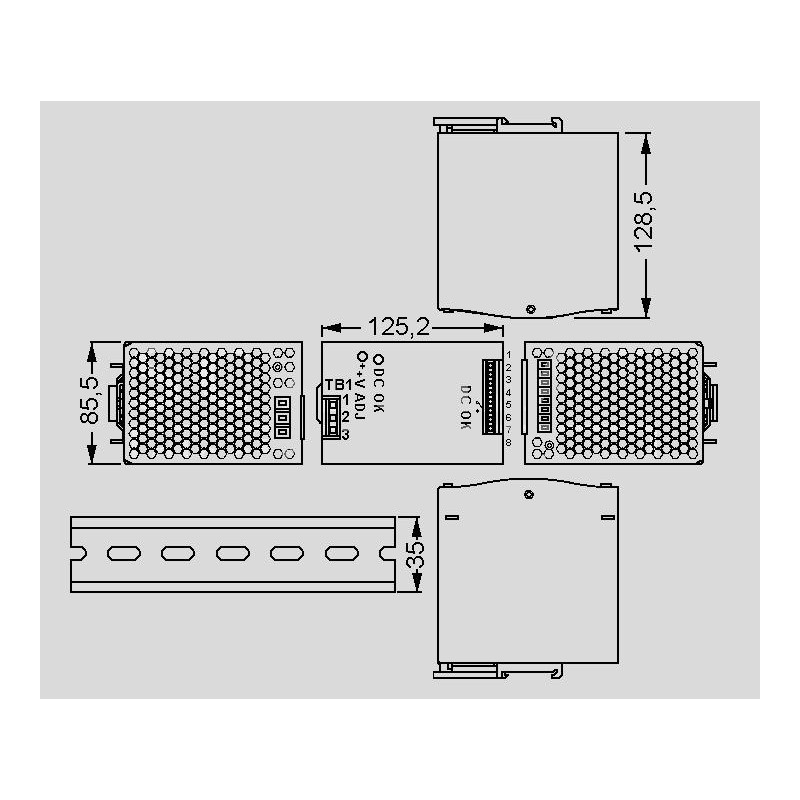

dimensions and terminal pin assignment

SDR-480P-48

35322 SDR-480P-48 SDR-480P-48 4711287422435 Mean Well DIN rail power supply series SDR-480P. Switching power supplies in an enclosed housing with 480W, a built-in DC OK relay contact, an LED indicator for power on, a universal input, a parallel function (7+1 / 3840W) and screw terminals (touch guard). These devices have a built-in active PFC function and comply with EN61000-6-2, EN50082-2, EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. They are suitable for DIN rail mounting and are protected against overload (auto recovery), overvoltage as well as short circuit. We offer the following types of this Mean Well series: SDR-480P-24 and SDR-480P-48. single output output: 480W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 80A peak power: 720W (3s) leakage current: &lt;0,6mA output voltage adjustment: +15% overload protection: 110 to 150% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -25 to +70°C weight: 1600g

Specifications

manufacturer
Manufacturer's name SDR-480P-48
GTIN 4711287422435
Output voltage [V] 48
Phase 2 phase
Efficiency [%] 94
Output current range [A] 0...10
Output voltage tolerance: [%] 1
Output power [W] 480
Ripple [mVp-p] 120
Data Sheet

Unit price

115,69 €

Volume discounts

Quantity Unit price
50 + 112,69 €

Stock: 88
Next incoming goods:
CW 09/2025
59 units

Further delivery:
CW 12/2025
