SDR-240-48

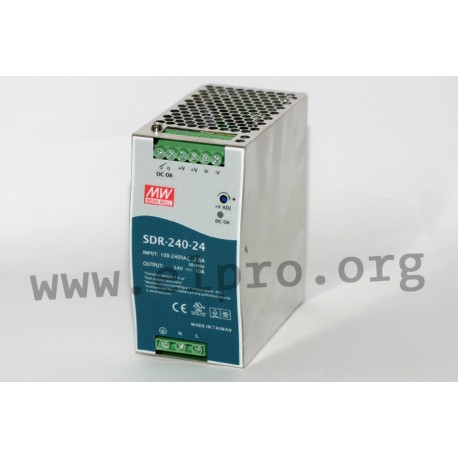

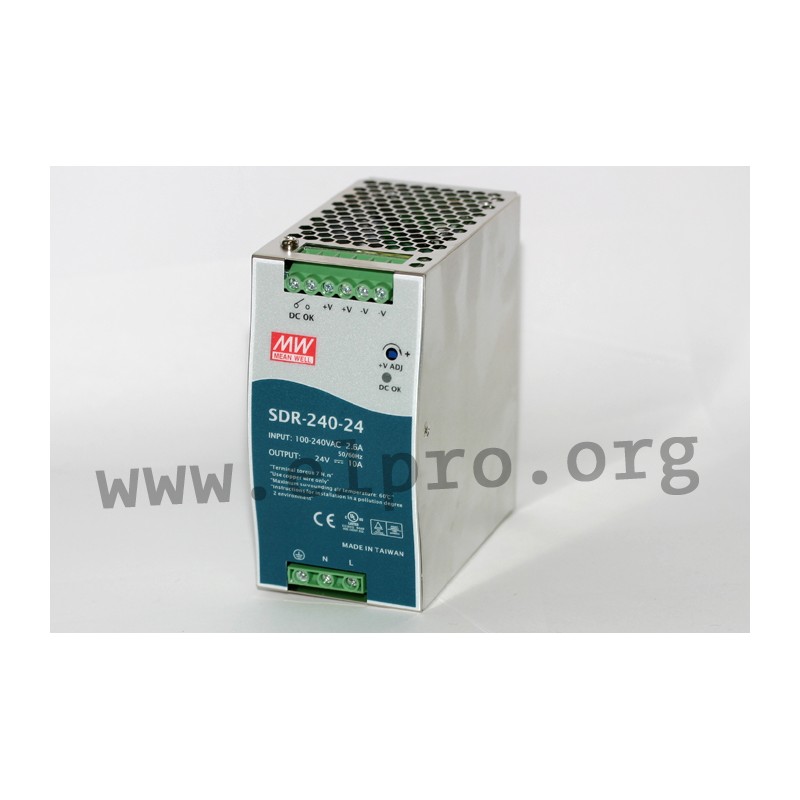

Mean Well DIN rail power supply series SDR-240

Switching power supplies in an enclosed housing with 240W, a built-in DC OK relay contact, a universal input and screw terminals (touch guard). These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for DIN rail mounting and comply with EN61000-6-2, EN50082-2, EN60204-1, EN55032, EN61204 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: SDR-240-24 and SDR-240-48.

  • single output
  • output: 240W
  • input voltage: 88 to 264V AC (47 to 63Hz), 124 to 370V DC
  • maximal input inrush current: 55A
  • peak power: 360W (3s)
  • leakage current: <1mA
  • output voltage adjustment: +15%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -25 to +70°C
  • weight: 1030g

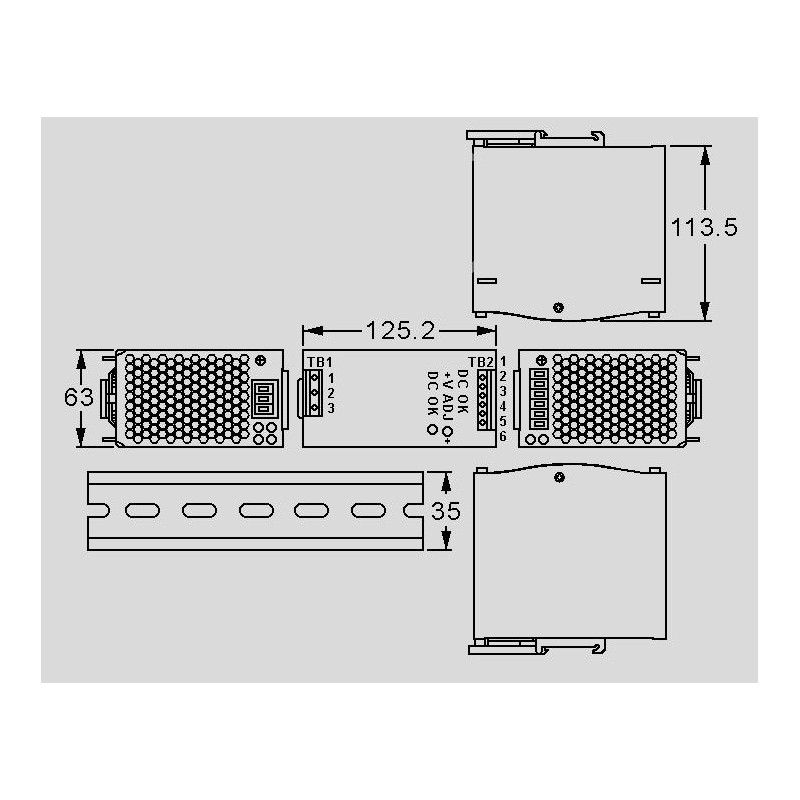

dimensions and terminal pin assignment

SDR-240-48

32403 SDR-240-48 SDR-240-48 4711287422398 Mean Well DIN rail power supply series SDR-240. Switching power supplies in an enclosed housing with 240W, a built-in DC OK relay contact, a universal input and screw terminals (touch guard). These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for DIN rail mounting and comply with EN61000-6-2, EN50082-2, EN60204-1, EN55032, EN61204 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: SDR-240-24 and SDR-240-48. single output output: 240W input voltage: 88 to 264V AC (47 to 63Hz), 124 to 370V DC maximal input inrush current: 55A peak power: 360W (3s) leakage current: &lt;1mA output voltage adjustment: +15% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -25 to +70°C weight: 1030g

Specifications

manufacturer
Manufacturer's name SDR-240-48
GTIN 4711287422398
Output voltage [V] 48
Phase 2 phase
Efficiency [%] 94
Output current range [A] 0...5
Output voltage tolerance: [%] 1
Output power [W] 240
Ripple [mVp-p] 120
