SDR-120-24

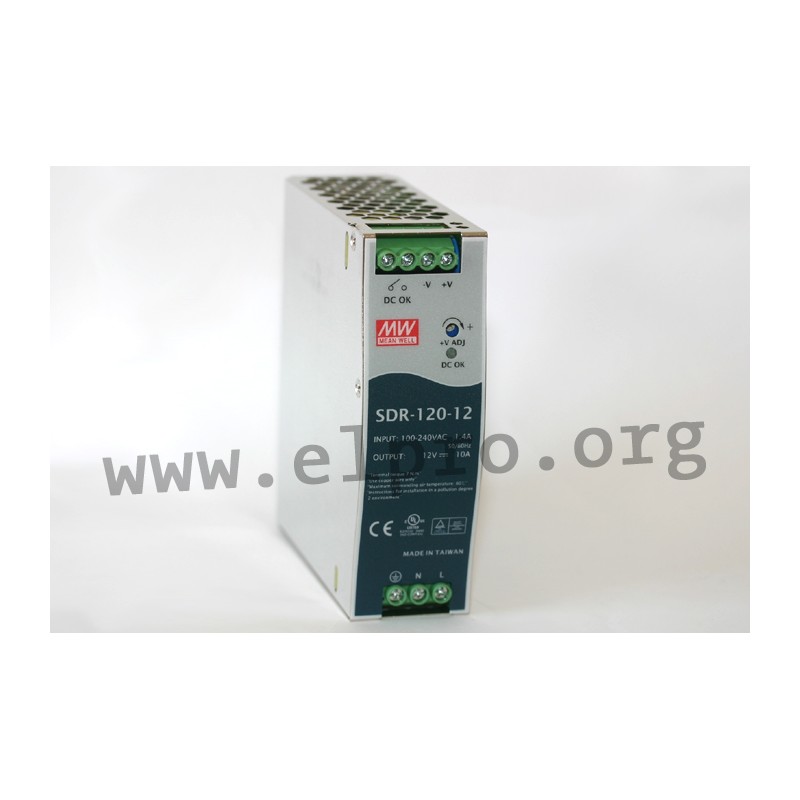

Mean Well DIN rail power supply series SDR-120

Mean Wells enclosed 120W switching power supplies offer a universal input, touch guard protected screw terminals and an LED indicator for power status. Suitable for DIN rail mounting, these power supplies are protected against overload with auto recovery, overvoltage, and short circuit. They have a fanless design and comply with safety standards such as EN61000-6-2, EN50082-2, EN62368-1, EN55032, EN61204-3 class B, EN61000-3-2, and EN61000-3-3. Available options in this series are the SDR-120-12, SDR-120-24, and SDR-120-48 models, all with a built-in DC OK relay contact.

  • single output
  • output: 120W
  • input voltage: 88 to 264V AC (47 to 63Hz), 124 to 370V DC
  • maximal input inrush current: 70A
  • peak power: 180W (3s)
  • leakage current: <1mA
  • output voltage adjustment: +15%
  • overload protection: 110 to 150%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -25 to +70°C
  • weight: 670g

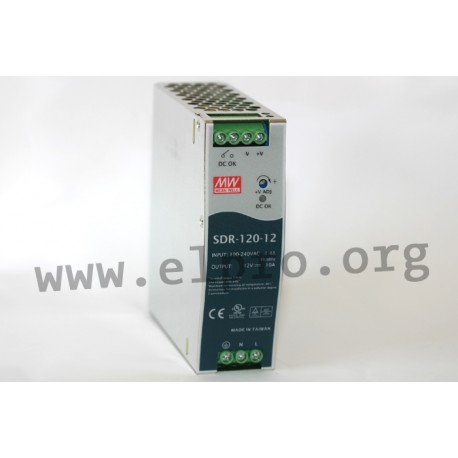

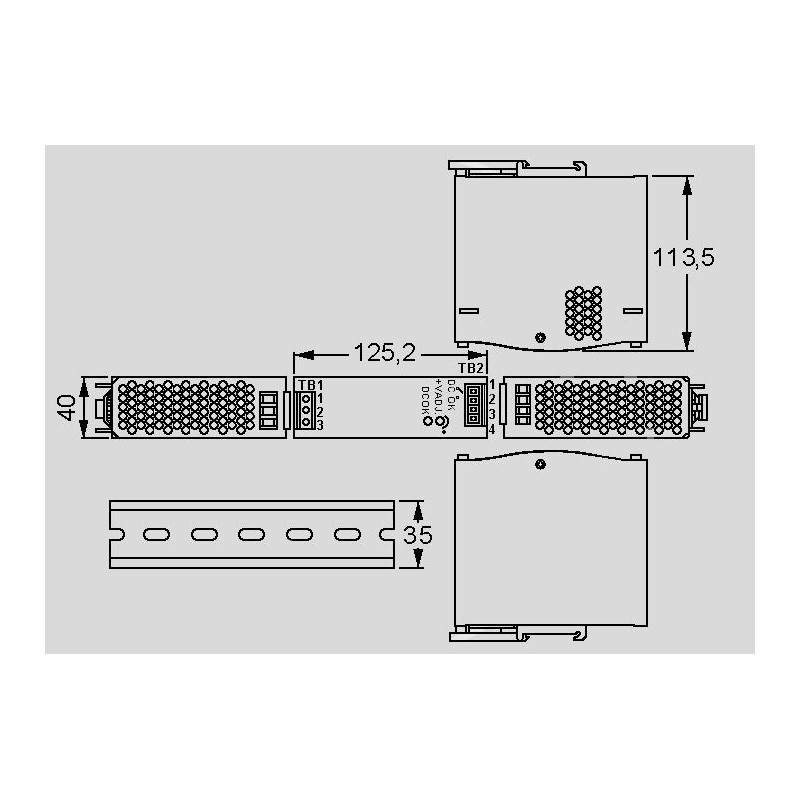

dimensions and terminal pin assignment

SDR-120-24

35316 SDR-120-24 SDR-120-24 4711287422367 Mean Well DIN rail power supply series SDR-120. Mean Wells enclosed 120W switching power supplies offer a universal input, touch guard protected screw terminals and an LED indicator for power status. Suitable for DIN rail mounting, these power supplies are protected against overload with auto recovery, overvoltage, and short circuit. They have a fanless design and comply with safety standards such as EN61000-6-2, EN50082-2, EN62368-1, EN55032, EN61204-3 class B, EN61000-3-2, and EN61000-3-3. Available options in this series are the SDR-120-12, SDR-120-24, and SDR-120-48 models, all with a built-in DC OK relay contact. single output output: 120W input voltage: 88 to 264V AC (47 to 63Hz), 124 to 370V DC maximal input inrush current: 70A peak power: 180W (3s) leakage current: &lt;1mA output voltage adjustment: +15% overload protection: 110 to 150% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -25 to +70°C weight: 670g

Specifications

manufacturer
Manufacturer's name SDR-120-24
GTIN 4711287422367
Output voltage [V] 24
Phase 2 phase
Efficiency [%] 91
Output current range [A] 0...5
Output voltage tolerance: [%] 1
Output power [W] 120
Ripple [mVp-p] 100
Data Sheet

Unit price

41,09 €

Volume discounts

Quantity Unit price
50 + 40,09 €

Stock: 1561
Next incoming goods:
CW 04/2025
440 units

Further delivery:
CW 17/2025
