SD-500L-24

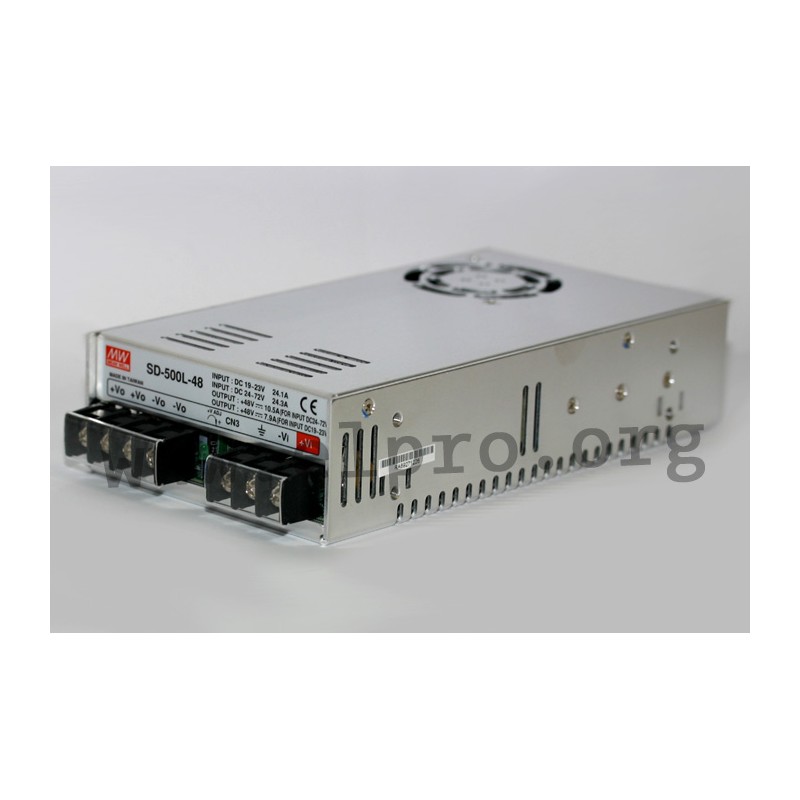

Mean Well DC/DC converter series SD-500

DC/DC converters in an enclosed housing with 500W, a built-in DC fan, a DC OK signal, a built-in remote ON/OFF control, an input voltage ratio of 4:1 and screw terminals. These devices have a galvanic isolation of input/output and are protected against overload, input voltage reversal, overtemperature, short circuit as well as overvoltage. They have a built-in remote sense function and comply with EN55032 class B. We offer the following types of this Mean Well series: SD-500L-12, SD-500L-24, SD-500L-48, SD-500H-12, SD-500H-24 and SD-500H-48.

  • single output
  • output: 480 to 504W
  • overload protection: 105 to 125%
  • withstand voltage I/P-O/P: 2000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -20 to +60°C
  • weight: 1150g

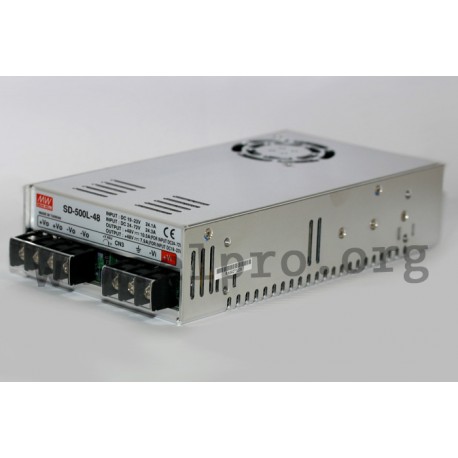

Meanwell SD-500 series

SD-500L-24

30656 SD-500L-24 SD-500L-24 4711287465678 Mean Well DC/DC converter series SD-500. DC/DC converters in an enclosed housing with 500W, a built-in DC fan, a DC OK signal, a built-in remote ON/OFF control, an input voltage ratio of 4:1 and screw terminals. These devices have a galvanic isolation of input/output and are protected against overload, input voltage reversal, overtemperature, short circuit as well as overvoltage. They have a built-in remote sense function and comply with EN55032 class B. We offer the following types of this Mean Well series: SD-500L-12, SD-500L-24, SD-500L-48, SD-500H-12, SD-500H-24 and SD-500H-48. single output output: 480 to 504W overload protection: 105 to 125% withstand voltage I/P-O/P: 2000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -20 to +60°C weight: 1150g

Specifications

manufacturer
Manufacturer's name SD-500L-24
GTIN 4711287465678
Input voltage [V] 19...72
Output voltage [V] 24
Efficiency [%] 88
Output current range [A] 0...21
Ripple [mVp-p] 150
Output voltage adjustment [V] 23...30
Data Sheet

Unit price

130,39 €

Volume discounts

Quantity Unit price
50 + 126,09 €

Stock: 63
Further delivery:
CW 11/2025
