SD-50A-12

Mean Well DC/DC converter series SD-50

DC/DC converters in an enclosed housing with 50W, an input voltage ratio of 2:1 and screw terminals. These devices have a galvanic isolation of input/output and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a regulated output voltage, a built-in EMI filter and comply with EN55032 class B as well as EN55024. We offer the following types of this Mean Well series: SD-50A-5, SD-50A-12, SD-50A-24, SD-50B-5, SD-50B-12, SD-50B-24, SD-50C-5, SD-50C-12 and SD-50C-24.

  • single output
  • output: 50 to 50,4W
  • overload protection: 105 to 150%
  • withstand voltage I/P-O/P: 1500V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -10 to +60°C
  • weight: 480g

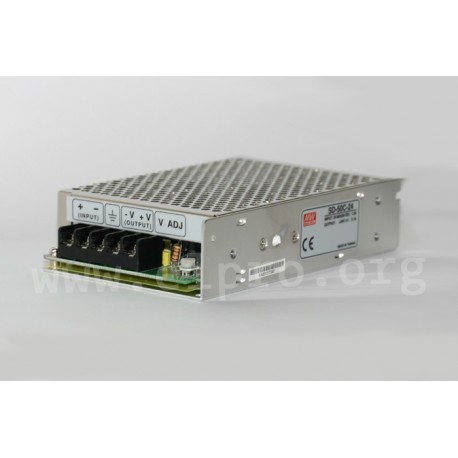

Meanwell SD-50 series

SD-50A-12

30520 SD-50A-12 SD-50A-12 4711287465135 Mean Well DC/DC converter series SD-50. DC/DC converters in an enclosed housing with 50W, an input voltage ratio of 2:1 and screw terminals. These devices have a galvanic isolation of input/output and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a regulated output voltage, a built-in EMI filter and comply with EN55032 class B as well as EN55024. We offer the following types of this Mean Well series: SD-50A-5, SD-50A-12, SD-50A-24, SD-50B-5, SD-50B-12, SD-50B-24, SD-50C-5, SD-50C-12 and SD-50C-24. single output output: 50 to 50,4W overload protection: 105 to 150% withstand voltage I/P-O/P: 1500V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -10 to +60°C weight: 480g

Specifications

manufacturer
Manufacturer's name SD-50A-12
GTIN 4711287465135
Input voltage [V] 9,2...18
Output voltage [V] 12
Efficiency [%] 72
Output current range [A] 0...4,2
Output voltage tolerance: [%] 1
Output power [W] 50,4
Ripple [mVp-p] 120
Output voltage adjustment [V] 11...16
Data Sheet

Unit price

27,29 €

Volume discounts

Quantity Unit price
50 + 25,39 €

Stock: 184
Further delivery:
CW 11/2025
