SD-350D-48

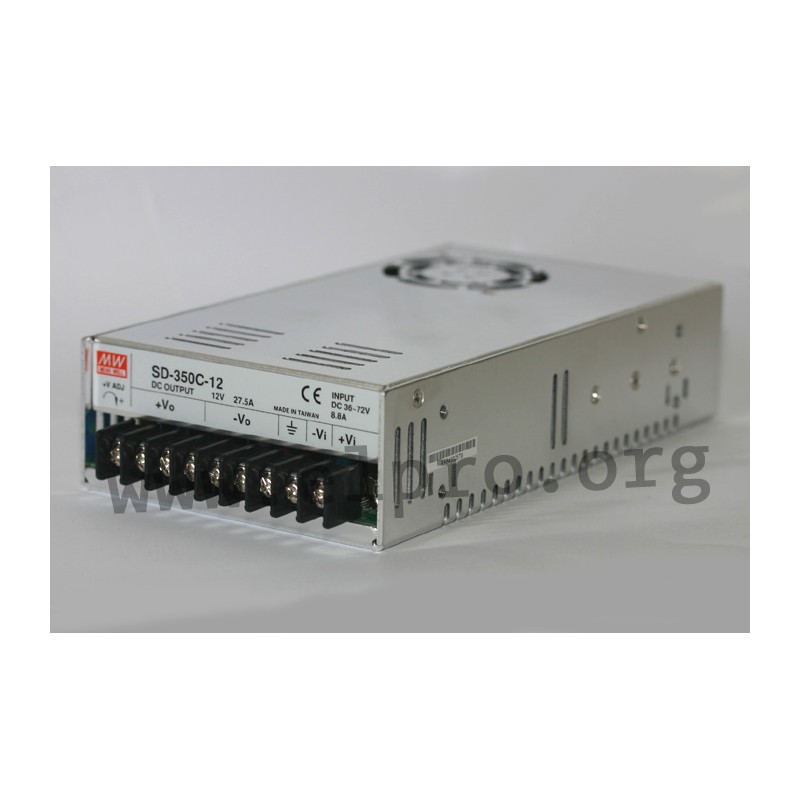

Mean Well DC/DC converter series SD-350

DC/DC converters in an enclosed housing with 350W, a built-in DC fan, a regulated output voltage and screw terminals. These devices have a galvanic isolation of input/output and are protected against overload (auto recovery), overvoltage, overtemperature as well as short circuit. They have an input voltage ratio of 2:1 and comply with EN55032 class B. We offer the following types of this Mean Well series: SD-350B-5, SD-350B-12, SD-350B-24, SD-350B-48, SD-350C-5, SD-350C-12, SD-350C-24, SD-350C-48, SD-350D-5, SD-350D-12, SD-350D-24 and SD-350D-48.

  • single output
  • output: 285 to 350,4W
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 1500V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -20 to +60°C
  • weight: 1100g

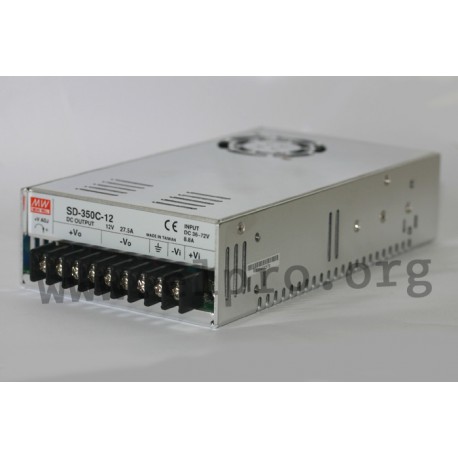

Meanwell SD-350 series

SD-350D-48

30563 SD-350D-48 SD-350D-48 4711287465623 Mean Well DC/DC converter series SD-350. DC/DC converters in an enclosed housing with 350W, a built-in DC fan, a regulated output voltage and screw terminals. These devices have a galvanic isolation of input/output and are protected against overload (auto recovery), overvoltage, overtemperature as well as short circuit. They have an input voltage ratio of 2:1 and comply with EN55032 class B. We offer the following types of this Mean Well series: SD-350B-5, SD-350B-12, SD-350B-24, SD-350B-48, SD-350C-5, SD-350C-12, SD-350C-24, SD-350C-48, SD-350D-5, SD-350D-12, SD-350D-24 and SD-350D-48. single output output: 285 to 350,4W overload protection: 105 to 135% withstand voltage I/P-O/P: 1500V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -20 to +60°C weight: 1100g

Specifications

manufacturer
Manufacturer's name SD-350D-48
GTIN 4711287465623
Input voltage [V] 72...144
Output voltage [V] 48
Efficiency [%] 89
Output current range [A] 0...7,3
Output voltage tolerance: [%] 1
Ripple [mVp-p] 200
Output voltage adjustment [V] 43...53
Data Sheet

Unit price

90,49 €

Volume discounts

Quantity Unit price
50 + 88,59 €

Stock: 10
Further delivery:
CW 11/2025
