SD-25C-5

Mean Well DC/DC converter series SD-25

DC/DC converters in an enclosed housing with 25W, screw terminals, a regulated output voltage and an input voltage ratio of 2:1. These devices have built-in EMI filters and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a galvanic isolation of input/output and comply with EN55032 class B. We offer the following types of this Mean Well series: SD-25A-5, SD-25A-12, SD-25A-24, SD-25B-5, SD-25B-12, SD-25B-24, SD-25C-5, SD-25C-12 and SD-25C-24.

  • single output
  • output: 25 to 26,4W
  • overload protection: 105 to 150%
  • withstand voltage I/P-O/P: 1500V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -10 to +60°C
  • weight: 380g

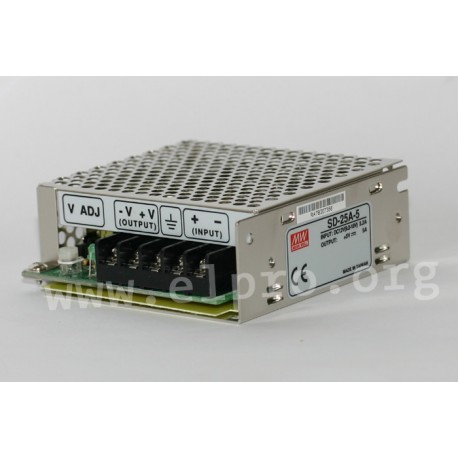

Meanwell SD-25 series

SD-25C-5

30500 SD-25C-5 SD-25C-5 4711287465098 Mean Well DC/DC converter series SD-25. DC/DC converters in an enclosed housing with 25W, screw terminals, a regulated output voltage and an input voltage ratio of 2:1. These devices have built-in EMI filters and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a galvanic isolation of input/output and comply with EN55032 class B. We offer the following types of this Mean Well series: SD-25A-5, SD-25A-12, SD-25A-24, SD-25B-5, SD-25B-12, SD-25B-24, SD-25C-5, SD-25C-12 and SD-25C-24. single output output: 25 to 26,4W overload protection: 105 to 150% withstand voltage I/P-O/P: 1500V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -10 to +60°C weight: 380g

Specifications

manufacturer
Manufacturer's name SD-25C-5
GTIN 4711287465098
Input voltage [V] 36...72
Output voltage [V] 5
Efficiency [%] 74
Output current range [A] 0...5
Output voltage tolerance: [%] 2
Output power [W] 25
Ripple [mVp-p] 100
Output voltage adjustment [V] 4,5...5,5
Data Sheet

Unit price

22,89 €

Volume discounts

Quantity Unit price
50 + 21,59 €

Stock: 20
Further delivery:
CW 11/2025
