SD-200C-12

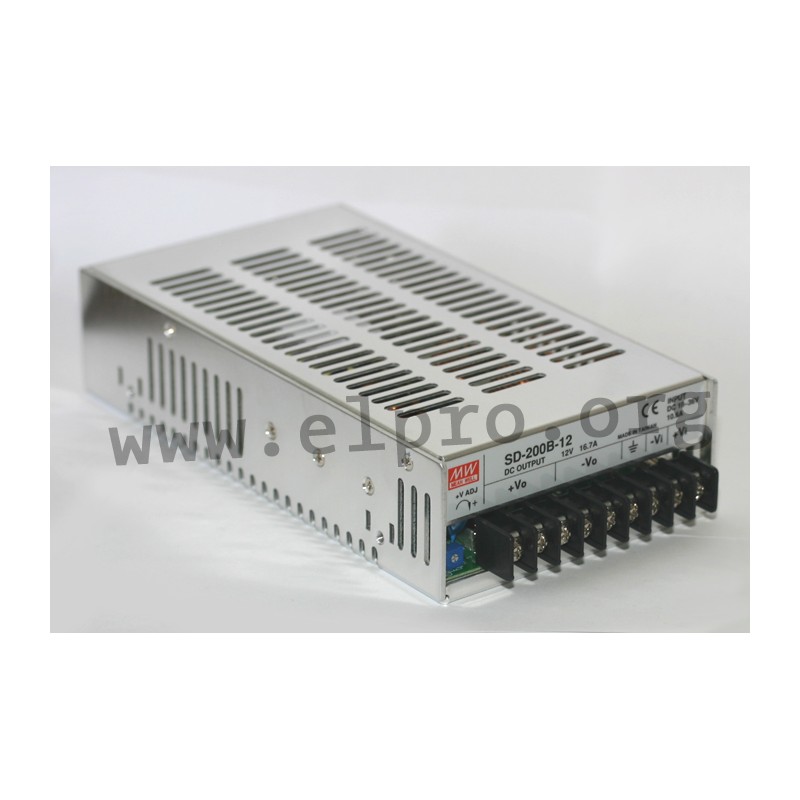

Mean Well DC/DC converter series SD-200

DC/DC converters in an enclosed housing with 200W, an input voltage ratio of 2:1, screw terminals and a galvanic isolation of input/output. These devices have a regulated output voltage and are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage. They have a fanless design and comply with UL62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: SD-200B-24, SD-200B-48, SD-200C-12, SD-200C-24, SD-200C-48 and SD-200D-24.

  • single output
  • output: 170 to 201,6W
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 1500V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -20 to +60°C
  • weight: 1100g

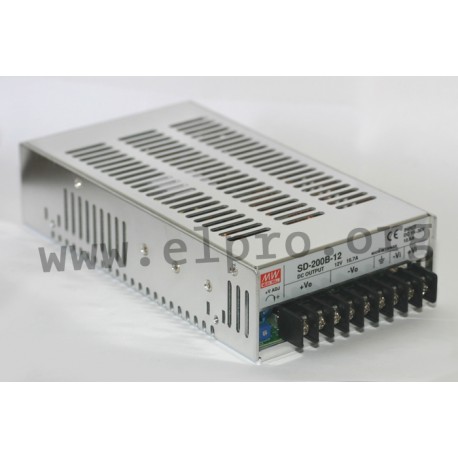

Meanwell SD-200 series

SD-200C-12

30555 SD-200C-12 SD-200C-12 4711287465449 Mean Well DC/DC converter series SD-200. DC/DC converters in an enclosed housing with 200W, an input voltage ratio of 2:1, screw terminals and a galvanic isolation of input/output. These devices have a regulated output voltage and are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage. They have a fanless design and comply with UL62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: SD-200B-24, SD-200B-48, SD-200C-12, SD-200C-24, SD-200C-48 and SD-200D-24. single output output: 170 to 201,6W overload protection: 105 to 135% withstand voltage I/P-O/P: 1500V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -20 to +60°C weight: 1100g

Specifications

manufacturer
Manufacturer's name SD-200C-12
GTIN 4711287465449
Input voltage [V] 36...72
Output voltage [V] 12
Efficiency [%] 84
Output current range [A] 0...16,7
Output voltage tolerance: [%] 1
Ripple [mVp-p] 120
Output voltage adjustment [V] 11...16
Data Sheet

Unit price

75,79 €

Volume discounts

Quantity Unit price
50 + 74,19 €

Stock: 19
Further delivery:
CW 11/2025
