SD-200D-48

DC/DC-converter-modules SD-200 by Meanwell

• output: 201 W
• enclosed case
• single output
• screw terminals
• overload protection by shutdown, auto recovery
• input voltage ratio: 2:1
• DC decoupling of input and output
• regulated output voltage
• short-circuit proof
• 105 to 135% over load protection
• I/P-O/P, withstand voltage: 1500 Volt AC
• I/P-FG, withstand voltage: 2000 Volt AC
• O/P-FG, withstand voltage: 500 Volt AC
• operating temperature: -20 to +60°C
• by Mean Well
• weight: 1.1kg

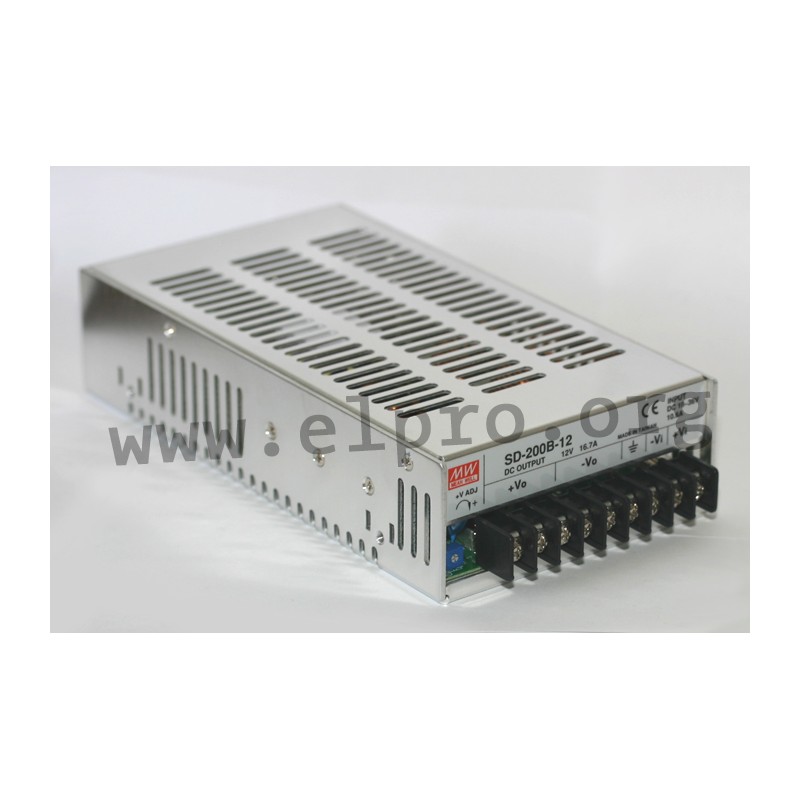

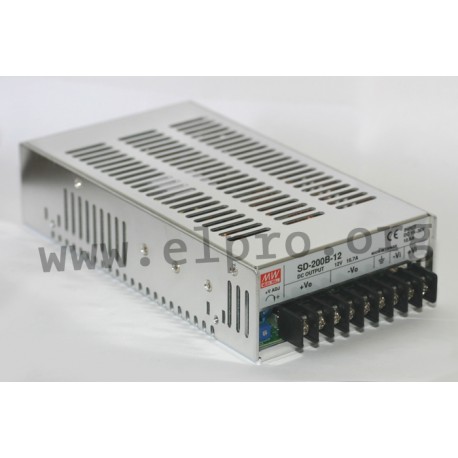

Meanwell SD-200 series

SD-200D-48

30546 SD-200D-48 SD-200D-48 4711287465500 DC/DC-converter-modules SD-200 by Meanwell. • output: 201 W• enclosed case• single output• screw terminals• overload protection by shutdown, auto recovery• input voltage ratio: 2:1• DC decoupling of input and output• regulated output voltage• short-circuit proof• 105 to 135% over load protection• I/P-O/P, withstand voltage: 1500 Volt AC• I/P-FG, withstand voltage: 2000 Volt AC• O/P-FG, withstand voltage: 500 Volt AC• operating temperature: -20 to +60°C• by Mean Well• weight: 1.1kg

Specifications

manufacturer
Manufacturer's name SD-200D-48
GTIN 4711287465500
Input voltage [V] 72...144
Output voltage [V] 48
Efficiency [%] 90
Output current range [A] 0...4,2
Output voltage tolerance: [%] 1
Ripple [mVp-p] 200
Output voltage adjustment [V] 43...53
Data Sheet

Unit price

75,49 €

Stock: 0
Further delivery:
CW 11/2025
