SD-150D-24

Mean Well DC/DC converter series SD-150

DC/DC converters in an enclosed housing with 150W, screw terminals, an input voltage ratio of 2:1 and a built-in EMI filter. These devices have a regulated output voltage and are protected against overload, overvoltage as well as short circuit. They have a galvanic isolation of input/output and comply with EN55032 class B as well as EN50204. We offer the following types of this Mean Well series: SD-150B-12, SD-150B-24, SD-150C-12, SD-150C-24, SD-150D-12 and SD-150D-24.

  • single output
  • output: 150 to 151,2W
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 1500V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -10 to +60°C
  • weight: 860g

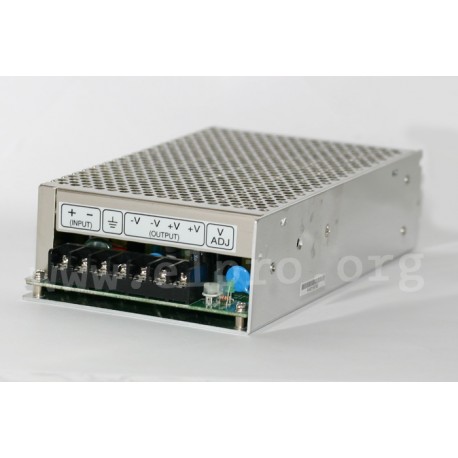

Meanwell SD-150 series

SD-150D-24

30540 SD-150D-24 SD-150D-24 4711287465388 Mean Well DC/DC converter series SD-150. DC/DC converters in an enclosed housing with 150W, screw terminals, an input voltage ratio of 2:1 and a built-in EMI filter. These devices have a regulated output voltage and are protected against overload, overvoltage as well as short circuit. They have a galvanic isolation of input/output and comply with EN55032 class B as well as EN50204. We offer the following types of this Mean Well series: SD-150B-12, SD-150B-24, SD-150C-12, SD-150C-24, SD-150D-12 and SD-150D-24. single output output: 150 to 151,2W overload protection: 105 to 135% withstand voltage I/P-O/P: 1500V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -10 to +60°C weight: 860g

Specifications

manufacturer
Manufacturer's name SD-150D-24
GTIN 4711287465388
Input voltage [V] 72...144
Output voltage [V] 24
Efficiency [%] 82
Output current range [A] 0...6,3
Ripple [mVp-p] 150
Output voltage adjustment [V] 23...30
Data Sheet

Unit price

45,29 €

Volume discounts

Quantity Unit price
50 + 44,39 €

Stock: 20
Further delivery:
CW 11/2025
