SD-15C-5

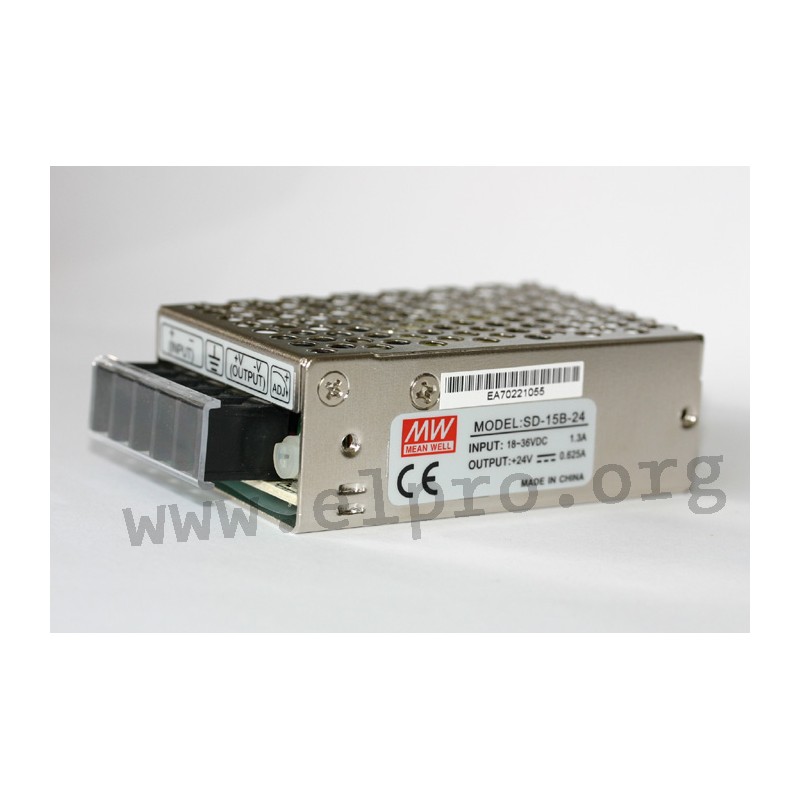

Mean Well DC/DC converter series SD-15

DC/DC converters in an enclosed housing with 15W, a regulated output voltage, an input voltage ratio of 2:1 and screw terminals. These devices have a galvanic isolation of input/output and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a high reliability, are inexpensive and comply with EN55032. We offer the following types of this Mean Well series: SD-15A-5, SD-15A-12, SD-15A-24, SD-15B-5, SD-15B-12, SD-15B-24, SD-15C-5, SD-15C-12 and SD-15C-24.

  • single output
  • output: 15W
  • overload protection: 105 to 160%
  • withstand voltage I/P-O/P: 1500V AC
  • withstand voltage I/P-FG: 1000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -10 to +60°C
  • weight: 180g

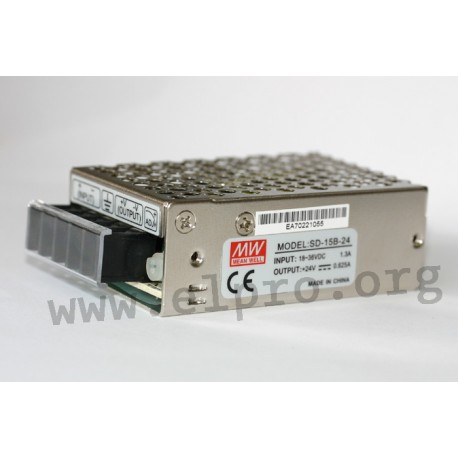

Meanwell SD-15 series

SD-15C-5

30468 SD-15C-5 SD-15C-5 4711287465005 Mean Well DC/DC converter series SD-15. DC/DC converters in an enclosed housing with 15W, a regulated output voltage, an input voltage ratio of 2:1 and screw terminals. These devices have a galvanic isolation of input/output and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a high reliability, are inexpensive and comply with EN55032. We offer the following types of this Mean Well series: SD-15A-5, SD-15A-12, SD-15A-24, SD-15B-5, SD-15B-12, SD-15B-24, SD-15C-5, SD-15C-12 and SD-15C-24. single output output: 15W overload protection: 105 to 160% withstand voltage I/P-O/P: 1500V AC withstand voltage I/P-FG: 1000V AC withstand voltage O/P-FG: 500V AC operating temperature: -10 to +60°C weight: 180g

Specifications

manufacturer
Manufacturer's name SD-15C-5
GTIN 4711287465005
Input voltage [V] 36...72
Output voltage [V] 5
Efficiency [%] 75
Output current range [A] 0...3
Output voltage tolerance: [%] 2
Ripple [mVp-p] 100
Output voltage adjustment [V] 4,75...5,5
Data Sheet

Unit price

12,79 €

Volume discounts

Quantity Unit price
50 + 11,89 €

Stock: 7
Next incoming goods:
CW 51/2024
60 units

Further delivery:
CW 11/2025
