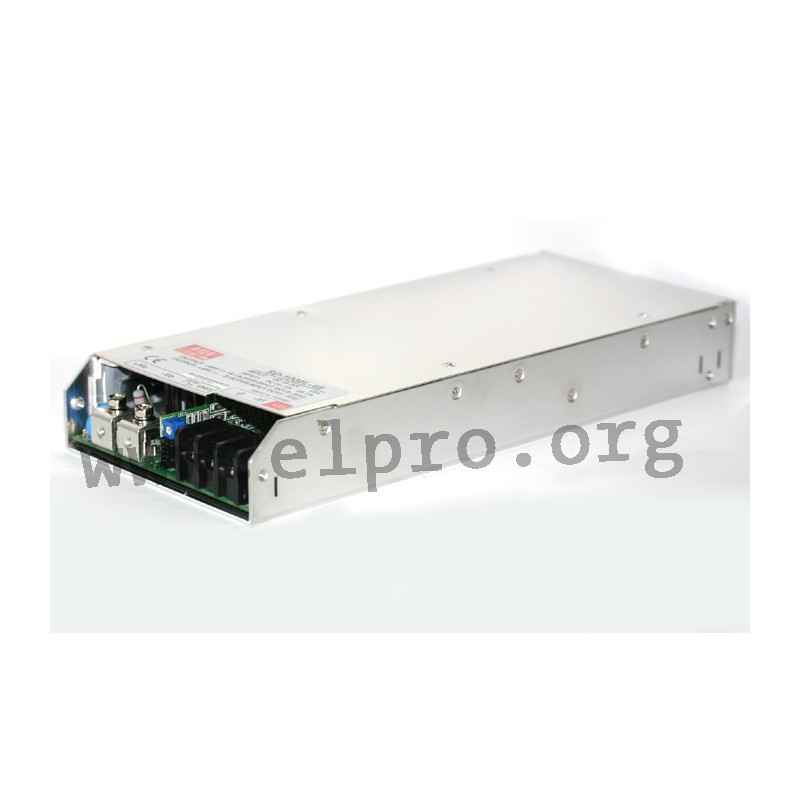

SD-1000L-12

Mean Well DC/DC converter series SD-1000

DC/DC converters in an enclosed housing (1U/41mm) with 1000W, a built-in remote ON/OFF control, a regulated output voltage, screw terminals, a DC OK signal, a galvanic isolation of input/output and a fan. These devices have a built-in remote sense function and are protected against overload, overvoltage, overtemperature as well as short circuit. They have an auxiliary output (12V/0,25A) and comply with EN62368-1 as well as EN55032. We offer the following types of this Mean Well series: SD-1000L-12, SD-1000L-24, SD-1000L-48, SD-1000H-12, SD-1000H-24 and SD-1000H-48.

  • single output
  • output: 720 to 1008W
  • overload protection: 105 to 125%
  • withstand voltage I/P-O/P: 2000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -20 to +60°C
  • weight: 1940g

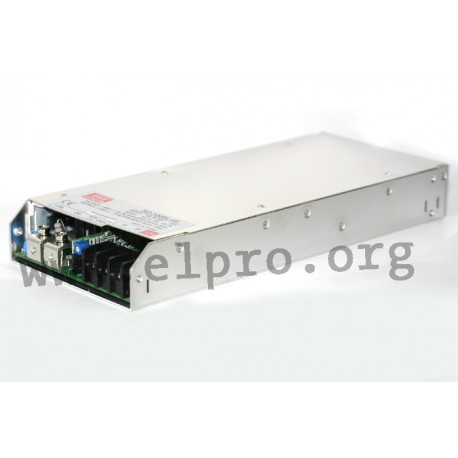

Meanwell SD-1000 series

SD-1000L-12

30664 SD-1000L-12 SD-1000L-12 4711287465722 Mean Well DC/DC converter series SD-1000. DC/DC converters in an enclosed housing (1U/41mm) with 1000W, a built-in remote ON/OFF control, a regulated output voltage, screw terminals, a DC OK signal, a galvanic isolation of input/output and a fan. These devices have a built-in remote sense function and are protected against overload, overvoltage, overtemperature as well as short circuit. They have an auxiliary output (12V/0,25A) and comply with EN62368-1 as well as EN55032. We offer the following types of this Mean Well series: SD-1000L-12, SD-1000L-24, SD-1000L-48, SD-1000H-12, SD-1000H-24 and SD-1000H-48. single output output: 720 to 1008W overload protection: 105 to 125% withstand voltage I/P-O/P: 2000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -20 to +60°C weight: 1940g

Specifications

manufacturer
Manufacturer's name SD-1000L-12
GTIN 4711287465722
Input voltage [V] 19...72
Output voltage [V] 12
Efficiency [%] 84
Output current range [A] 0...60
Ripple [mVp-p] 150
Output voltage adjustment [V] 11...15
Data Sheet

Unit price

251,89 €

Volume discounts

Quantity Unit price
50 + 247,59 €

Stock: 26
Further delivery:
CW 11/2025
