SD-100D-12

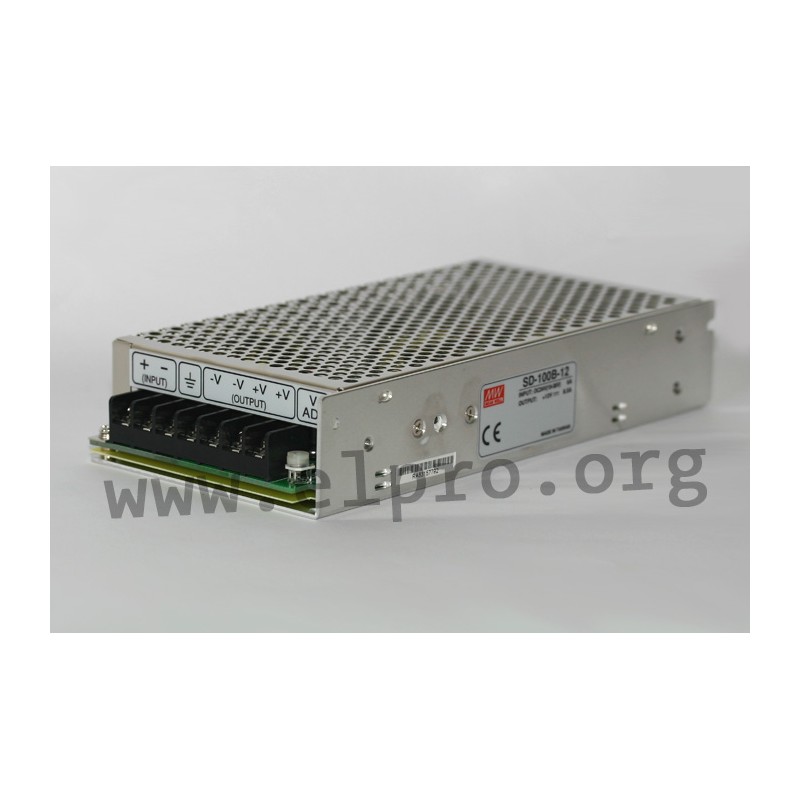

Mean Well DC/DC converter series SD-100

DC/DC converters in an enclosed housing with 100W, screw terminals, a regulated output voltage and a galvanic isolation of input/output. These devices have a built-in EMI filter and are protected against overload (auto recovery), overvoltage as well as short circuit. They are inexpensive, have a high reliability and comply with EN55032 class B. We offer the following types of this Mean Well series: SD-100A-5, SD-100A-12, SD-100A-24, SD-100B-5, SD-100B-12, SD-100B-24, SD-100C-5, SD-100C-12, SD-100C-24, SD-100D-5, SD-100D-1 and SD-100D-24.

  • single Output
  • output: 90 to 102W
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 1500V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -15 to +60°C
  • weight: 650g

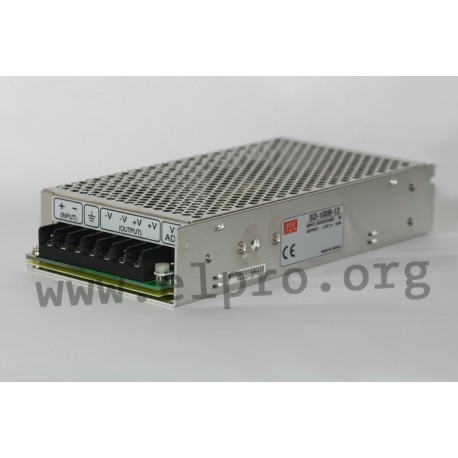

Meanwell SD-100 series

SD-100D-12

30534 SD-100D-12 SD-100D-12 4711287465319 Mean Well DC/DC converter series SD-100. DC/DC converters in an enclosed housing with 100W, screw terminals, a regulated output voltage and a galvanic isolation of input/output. These devices have a built-in EMI filter and are protected against overload (auto recovery), overvoltage as well as short circuit. They are inexpensive, have a high reliability and comply with EN55032 class B. We offer the following types of this Mean Well series: SD-100A-5, SD-100A-12, SD-100A-24, SD-100B-5, SD-100B-12, SD-100B-24, SD-100C-5, SD-100C-12, SD-100C-24, SD-100D-5, SD-100D-1 and SD-100D-24. single Output output: 90 to 102W overload protection: 105 to 135% withstand voltage I/P-O/P: 1500V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -15 to +60°C weight: 650g

Specifications

manufacturer
Manufacturer's name SD-100D-12
GTIN 4711287465319
Input voltage [V] 72...144
Output voltage [V] 12
Efficiency [%] 80
Output current range [A] 0...8,5
Output voltage tolerance: [%] 1
Ripple [mVp-p] 120
Output voltage adjustment [V] 11...16
Data Sheet

Unit price

34,19 €

Volume discounts

Quantity Unit price
50 + 33,49 €

Stock: 5
Further delivery:
CW 11/2025
