DCW12C-05

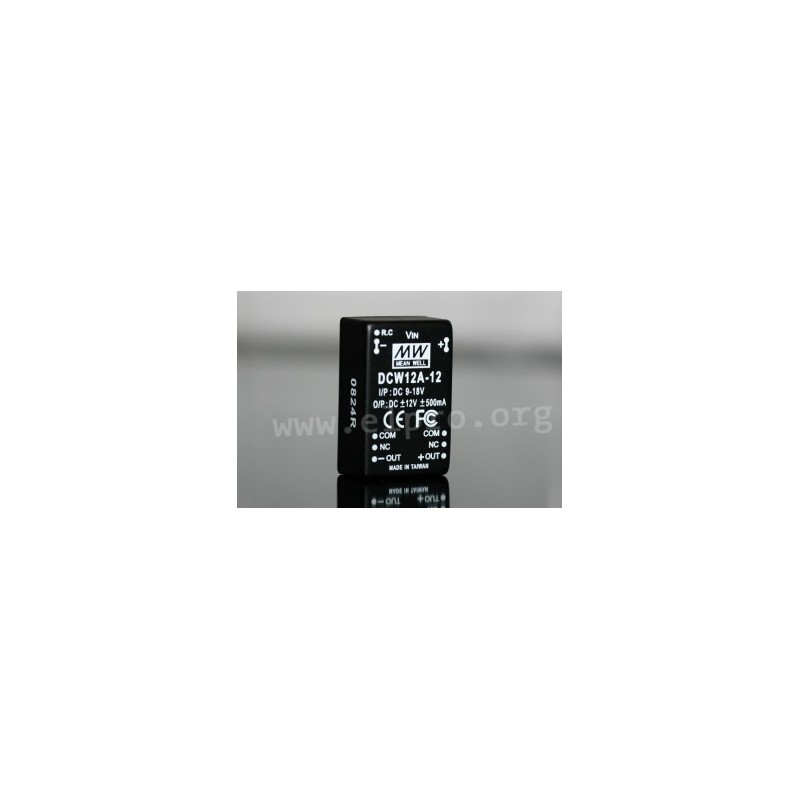

Mean Well DC/DC converter series SCW12 and DCW12

DC/DC converters in a DIL24 housing with 12W, a regulated output voltage, a remote ON/OFF control, a built-in EMI filter and an input voltage ratio of 2:1. These devices are suitable for PCB mounting and are protected against overload as well as short circuit. They have a galvanic isolation of input/output and comply with EN55032 class A. We offer the following types of this Mean Well series: SCW12A-05, SCW12A-12, SCW12A-15, SCW12B-05, SCW12B-12, SCW12B-15, SCW12C-05, SCW12C-12, SCW12C-15, DCW12A-12, DCW12A-15, DCW12B-05, DCW12B-12, DCW12B-15, DCW12C-05, DCW12C-12 and DCW12C-15.

  • single (SCW12_) or dual output (DCW12_)
  • output: 12W
  • overload protection: 110 to 180%
  • withstand voltage: 1500V DC
  • operating temperature: -40 to +71°C
  • weight: 18,5g

DCW12C-05

32337 DCW12C-05 DCW12C-05 4711287470948 Mean Well DC/DC converter series SCW12 and DCW12. DC/DC converters in a DIL24 housing with 12W, a regulated output voltage, a remote ON/OFF control, a built-in EMI filter and an input voltage ratio of 2:1. These devices are suitable for PCB mounting and are protected against overload as well as short circuit. They have a galvanic isolation of input/output and comply with EN55032 class A. We offer the following types of this Mean Well series: SCW12A-05, SCW12A-12, SCW12A-15, SCW12B-05, SCW12B-12, SCW12B-15, SCW12C-05, SCW12C-12, SCW12C-15, DCW12A-12, DCW12A-15, DCW12B-05, DCW12B-12, DCW12B-15, DCW12C-05, DCW12C-12 and DCW12C-15. single (SCW12_) or dual output (DCW12_) output: 12W overload protection: 110 to 180% withstand voltage: 1500V DC operating temperature: -40 to +71°C weight: 18,5g

Specifications

manufacturer
Manufacturer's name DCW12C-05
GTIN 4711287470948
Case DIL 24 case
Input [V DC] 36...72
Output [mA] 240...1200
Output [V] 5
Efficiency [%] 81
Ripple [mV] 50
Output2 [mA] -240...-1200
Output2 [V] -5
Data Sheet

Unit price

16,69 €

Volume discounts

Quantity Unit price
50 + 15,49 €

Stock: 13
Further delivery:
CW 18/2025
