SCW 08C-12

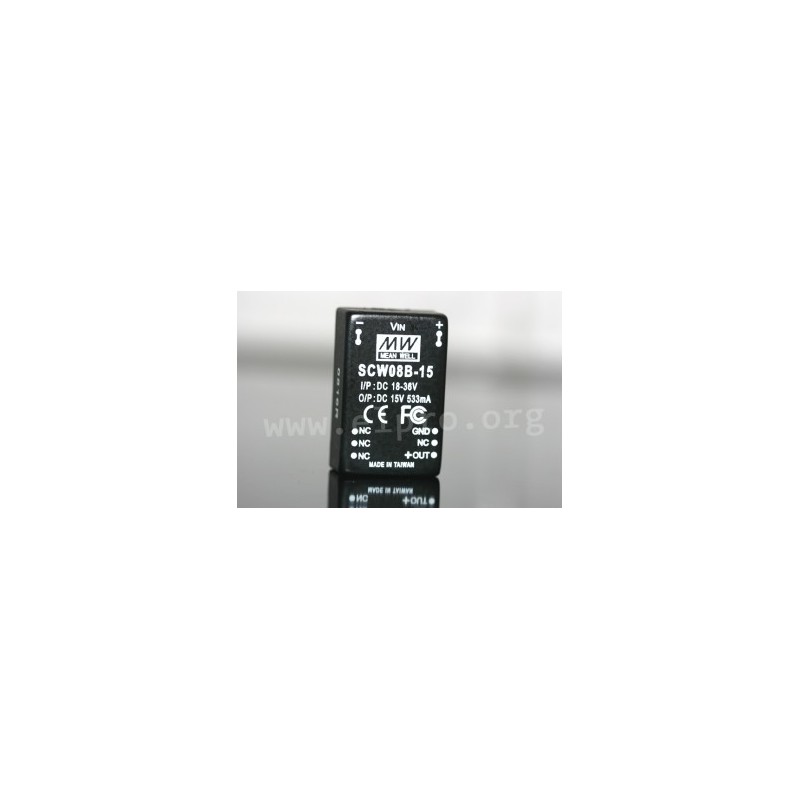

Mean Well DC/DC converter series SCW08

DC/DC converters in a DIL24 housing with 8W, a regulated output voltage, a built-in EMI filter and an input voltage ratio of 2:1. These devices are suitable for PCB mounting and are protected against overload as well as short circuit. They have a galvanic isolation of input as well as output and comply with EN55032 class B. We offer the following types of this Mean Well series: SCW08A-05, SCW08A-12, SCW08A-15, SCW08B-05, SCW08B-12, SCW08B-15, SCW08C-05 and SCW08C-12.

  • single output
  • output: 8W
  • overload protection: 110 to 250%
  • withstand voltage: 1000V DC
  • operating temperature: -40 to +71°C
  • weight: 15g
SCW08C-12, Mean Well DC/DC converters, 8W, DIL24 housing, SCW08 series

SCW 08C-12

30464 SCW 08C-12 SCW08C-12 SCW08C-12 Mean Well DC/DC converter series SCW08. DC/DC converters in a DIL24 housing with 8W, a regulated output voltage, a built-in EMI filter and an input voltage ratio of 2:1. These devices are suitable for PCB mounting and are protected against overload as well as short circuit. They have a galvanic isolation of input as well as output and comply with EN55032 class B. We offer the following types of this Mean Well series: SCW08A-05, SCW08A-12, SCW08A-15, SCW08B-05, SCW08B-12, SCW08B-15, SCW08C-05 and SCW08C-12. single output output: 8W overload protection: 110 to 250% withstand voltage: 1000V DC operating temperature: -40 to +71°C weight: 15g

Specifications

manufacturer
Manufacturer's name SCW08C-12
Case DIL 24 case
Input [V DC] 36...72
Output current range [mA] 134...670
Output [V] 12
Efficiency [%] 81
Ripple [mV] 60
Data Sheet

Unit price

14,49 €

Volume discounts

Quantity Unit price
50 + 13,49 €

Stock: 68
Further delivery:
CW 18/2025
