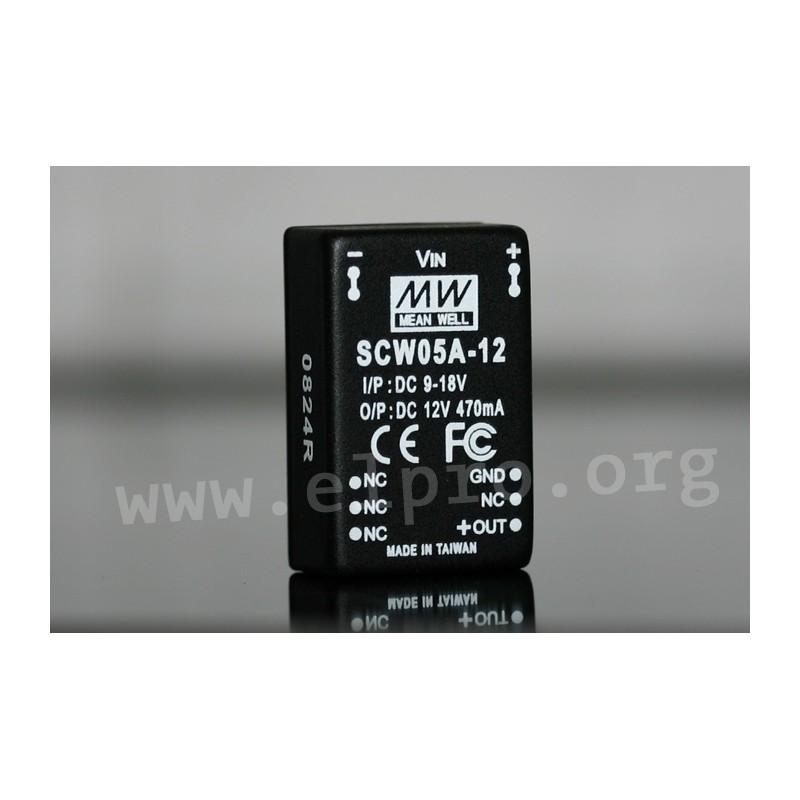

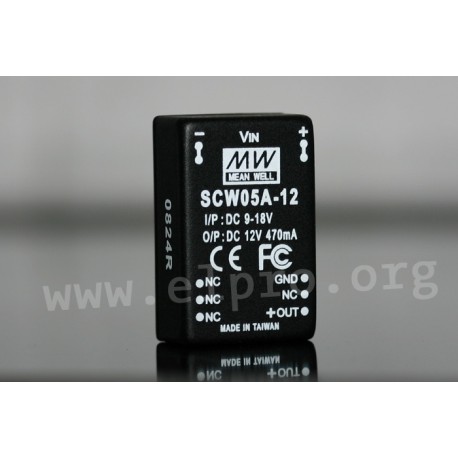

SCW05C-12

Mean Well DC/DC converter series SCW05 and DCW05

Regulated DC/DC converters in a DIL24 metal housing with 5W, a built-in EMI filter and an input voltage ratio of 2:1. These devices are suitable for PCB mounting and are protected against overload as well as short circuit. They have a high reliability and comply with EN55032 class B. We offer the types SCW05C-12 and DCW05A-12 of this Mean Well series.

  • single (SCW_) or dual output (DCW_)
  • output: 5W
  • maximal ripple and noise: 50mVpp
  • withstand voltage: 1000V DC
  • operating temperature: -40 to +71°C
  • weight: 15g
Meanwell SCW05 series

SCW05C-12

32279 SCW05C-12 SCW05C-12 Mean Well DC/DC converter series SCW05 and DCW05. Regulated DC/DC converters in a DIL24 metal housing with 5W, a built-in EMI filter and an input voltage ratio of 2:1. These devices are suitable for PCB mounting and are protected against overload as well as short circuit. They have a high reliability and comply with EN55032 class B. We offer the types SCW05C-12 and DCW05A-12 of this Mean Well series. single (SCW_) or dual output (DCW_) output: 5W maximal ripple and noise: 50mVpp withstand voltage: 1000V DC operating temperature: -40 to +71°C weight: 15g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name SCW05C-12

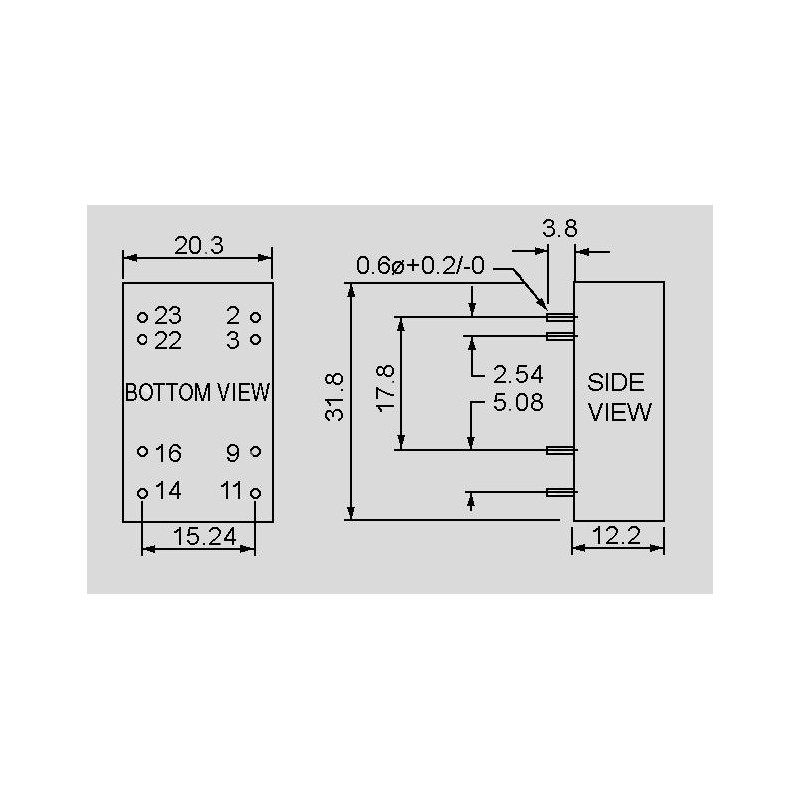

Case DIL 24 case
Input [V DC] 36...72
Output current range [mA] 94...470
Output [V] 12
Efficiency [%] 83
Ripple [mV] 60
Data Sheet

Unit price

7,89 €

Stock: 5
