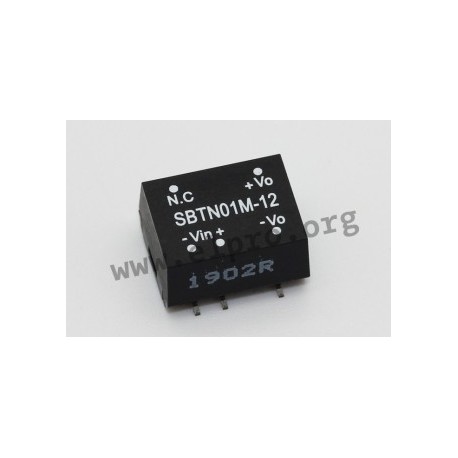

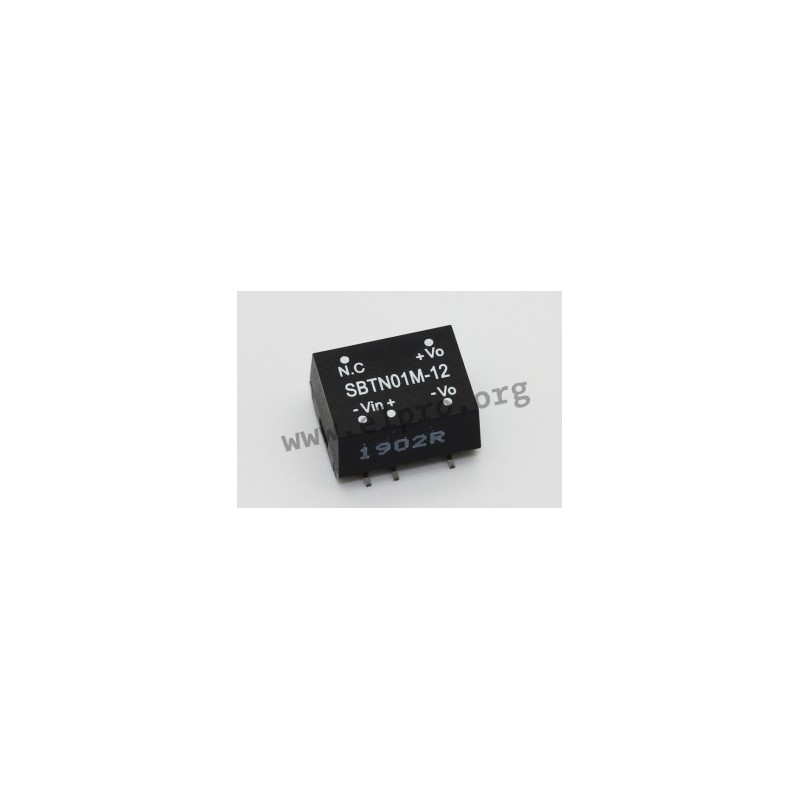

SBTN01M-15

Mean Well DC/DC converter series SBTN01

Unregulated DC/DC converters in an SMD housing with 1W. These low-cost devices have a high efficiency (up to 84%) and are protected against short circuit. They are suitable for direct PCB mounting and comply with EN55032 class A. We offer the following types of this Mean Well series: SBTN01L-05, SBTN01L-12, SBTN01L-15, SBTN01M-05, SBTN01M-12, SBTN01M-15, SBTN01N-05, SBTN01N-12 and SBTN01N-15.

  • single output
  • output: 1W
  • output voltage tolerance: ±2%
  • maximal ripple and noise: 75mVpp
  • withstand voltage: 1500V DC
  • operating temperature: -40 to +90°C
  • weight: 1,1g
Mean Well SBTN01 series

SBTN01M-15

110306 SBTN01M-15 SBTN01M-15 4711287474489 Mean Well DC/DC converter series SBTN01. Unregulated DC/DC converters in an SMD housing with 1W. These low-cost devices have a high efficiency (up to 84%) and are protected against short circuit. They are suitable for direct PCB mounting and comply with EN55032 class A. We offer the following types of this Mean Well series: SBTN01L-05, SBTN01L-12, SBTN01L-15, SBTN01M-05, SBTN01M-12, SBTN01M-15, SBTN01N-05, SBTN01N-12 and SBTN01N-15. single output output: 1W output voltage tolerance: ±2% maximal ripple and noise: 75mVpp withstand voltage: 1500V DC operating temperature: -40 to +90°C weight: 1,1g

Specifications

manufacturer
Manufacturer's name SBTN01M-15
GTIN 4711287474489
Input voltage [V] 10,8...13,2
Output voltage [V] 15
Output current range [mA] 6,7...67
Efficiency [%] 83
Data Sheet

Unit price

3,79 €

Volume discounts

Quantity Unit price
50 + 3,39 €

Stock: 266
Further delivery:
CW 17/2025
