SBTN01N-05N

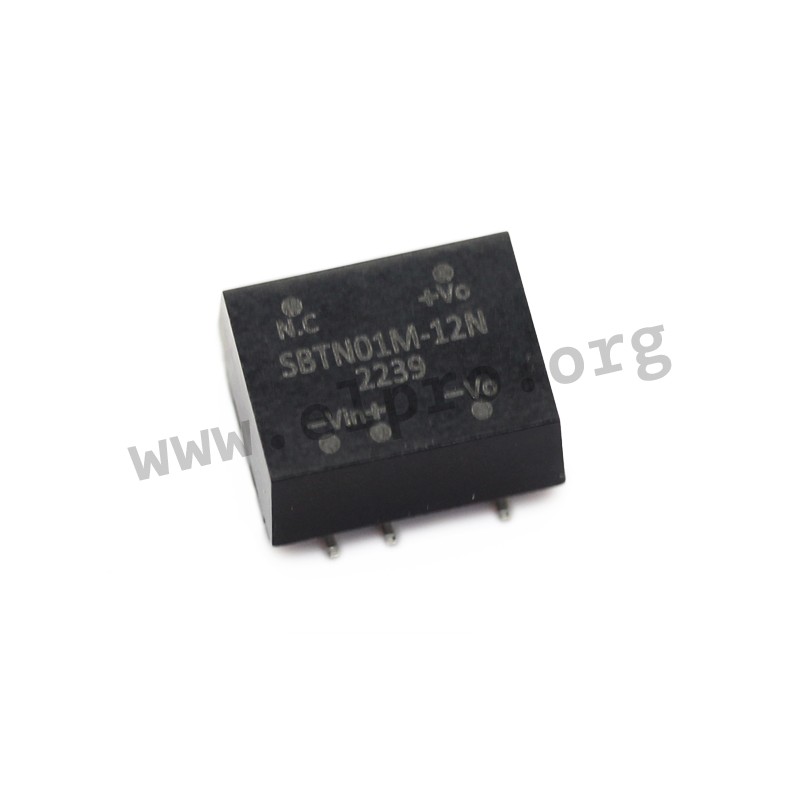

Mean Well DC/DC converter series SBTN01-N

Unregulated DC/DC converters in an SMD housing with 1W and a high efficiency (up to 83%). These devices are suitable for direct PCB mounting and are protected against short circuit. They inexpensive, have an input voltage ratio of 1:1 and comply with EN55032. We offer the following types of this Mean Well series: SBTN01L-05N, SBTN01L-12N, SBTN01L-15N, SBTN01M-05N, SBTN01M-12N, SBTN01M-15N, SBTN01N-05N, SBTN01N-12N and SBTN01N-15N.

  • single output
  • output: 1W
  • output voltage tolerance: ±5%
  • maximal ripple and noise: 100mVpp
  • withstand voltage: 2000V DC
  • operating temperature: -40 to +100°C
  • weight: 1g
SBTN01N-05N, Mean Well DC/DC converters, 1W, SMD, SBTN01-N series

SBTN01N-05N

241337 SBTN01N-05N SBTN01N-05N 4711287474595 Mean Well DC/DC converter series SBTN01-N. Unregulated DC/DC converters in an SMD housing with 1W and a high efficiency (up to 83%). These devices are suitable for direct PCB mounting and are protected against short circuit. They inexpensive, have an input voltage ratio of 1:1 and comply with EN55032. We offer the following types of this Mean Well series: SBTN01L-05N, SBTN01L-12N, SBTN01L-15N, SBTN01M-05N, SBTN01M-12N, SBTN01M-15N, SBTN01N-05N, SBTN01N-12N and SBTN01N-15N. single output output: 1W output voltage tolerance: ±5% maximal ripple and noise: 100mVpp withstand voltage: 2000V DC operating temperature: -40 to +100°C weight: 1g

Specifications

manufacturer
Manufacturer's name SBTN01N-05N
GTIN 4711287474595
Output voltage [V] 5
Input voltage range [V] 21,6...26,4
Efficiency [%] 73
Output current [A] 0,2
Data Sheet

Unit price

3,39 €

Volume discounts

Quantity Unit price
50 + 3,09 €

Stock: 14
Next incoming goods:
CW 02/2025
64 units

Further delivery:
CW 23/2025
