PSAIG 12V 12,5A

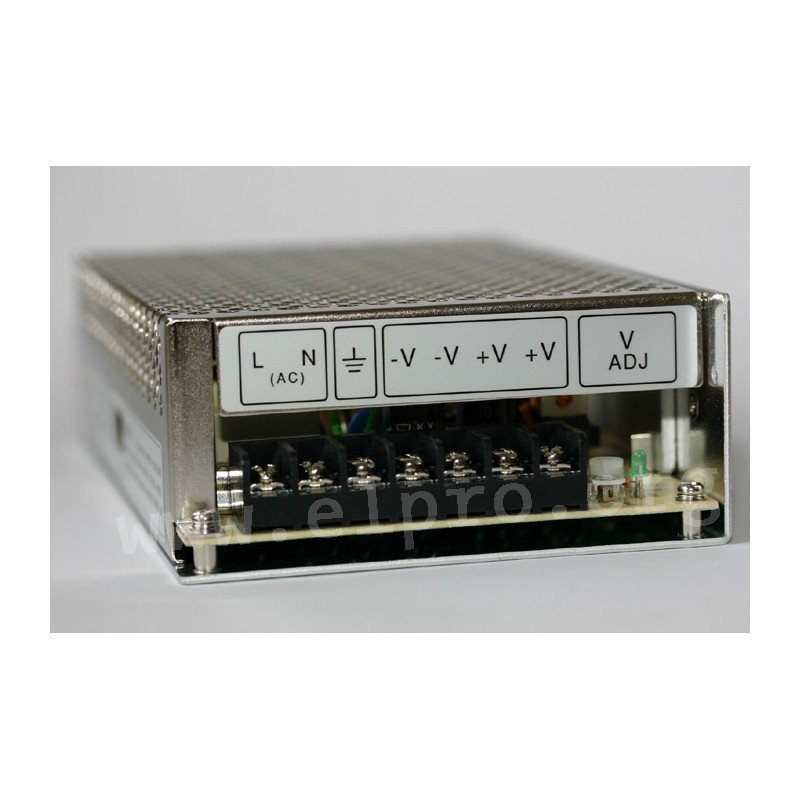

Mean Well power supply series S-150

Switching power supplies in an enclosed housing with 150W, a universal input and screw terminals. These devices have a switch for selecting the AC input range (115V/230V) and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fanless design and comply with UL1012 as well as UL/EN60950-1. We offer the following types of this Mean Well series: S-150-12, S-150-15 and S-150-48.

  • single output
  • output: 150 to 153W
  • input voltage: 88 to 132V AC / 176 to 264V AC (47 to 63Hz), 248 to 370V DC
  • maximal input inrush current: 35A
  • leakage current: <3,5mA
  • output voltage adjustment: ±10%
  • overload protection: 105 to 150%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 1500V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -10 to +60°C
  • weight: 800g

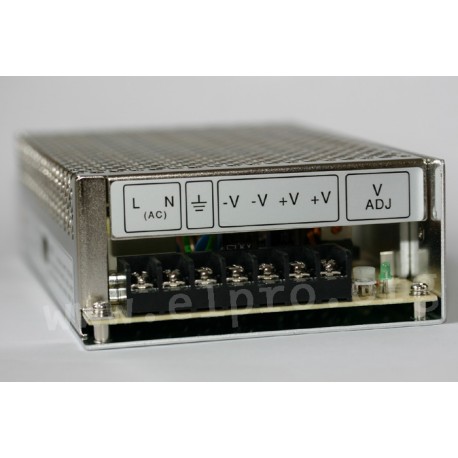

Meanwell S-150 series

PSAIG 12V 12,5A

17922 PSAIG 12V 12,5A S-150-12 S-150-12 Mean Well power supply series S-150. Switching power supplies in an enclosed housing with 150W, a universal input and screw terminals. These devices have a switch for selecting the AC input range (115V/230V) and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fanless design and comply with UL1012 as well as UL/EN60950-1. We offer the following types of this Mean Well series: S-150-12, S-150-15 and S-150-48. single output output: 150 to 153W input voltage: 88 to 132V AC / 176 to 264V AC (47 to 63Hz), 248 to 370V DC maximal input inrush current: 35A leakage current: &lt;3,5mA output voltage adjustment: ±10% overload protection: 105 to 150% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 1500V AC withstand voltage O/P-FG: 500V AC operating temperature: -10 to +60°C weight: 800g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name S-150-12
Output voltage [V] 12
Phase 2 phase
Efficiency [%] 82
Output current range [A] 0...12,5
Output voltage tolerance: [%] 1
Output power [W] 150
Ripple [mVp-p] 180
Data Sheet

Unit price

29,99 €

Stock: 3
