RT-85C

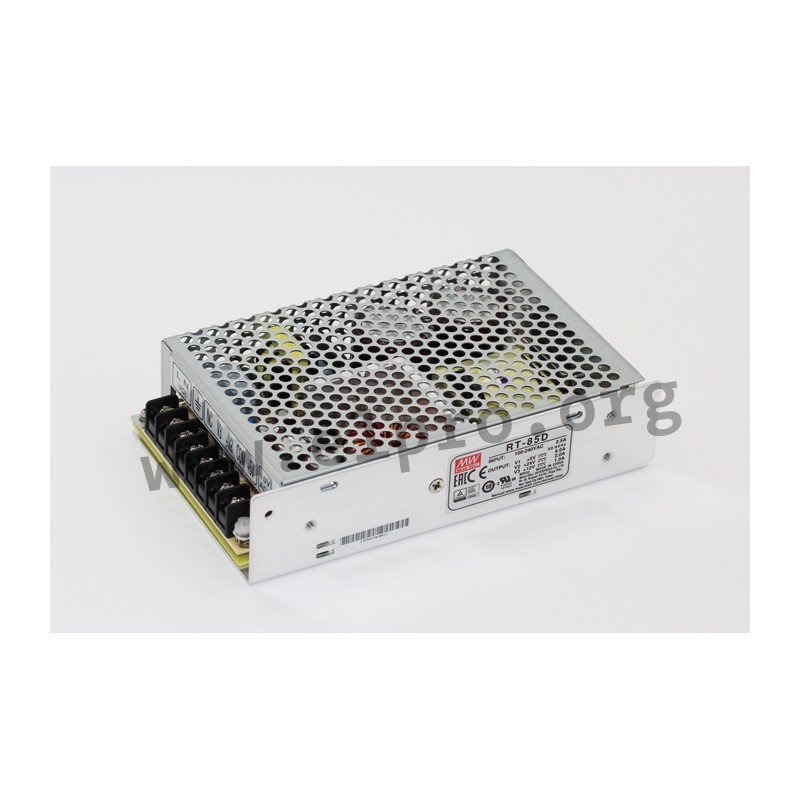

Mean Well power supply series RT-85

Switching power supplies in an enclosed housing with screw terminals, 85W and a universal input. These devices have a triple output and are protected against short circuit, overload (auto recovery) as well as overvoltage. They are using 105°C long life electrolytic capacitors and comply with EN62368-1, EN55032 class B as well as EN61000-3-2. We offer the following types of this Mean Well series: RT-85A, RT-85B, RT-85C and RT-85D.

  • triple output
  • output: 84,5 to 90W
  • input voltage: 88 to 264V AC (47 to 63Hz), 125 to 373V DC
  • maximal input inrush current: 50A
  • maximal leakage current: 2mA
  • output voltage adjustment: 4,75 to 5,5V
  • overload protection: 110 to 150%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -25 to +70°C
  • weight: 600g
RT-85C, Mean Well switching power supplies, 85W, enclosed, triple output, RT-85 series

RT-85C

123931 RT-85C RT-85C 4711287434315 Mean Well power supply series RT-85. Switching power supplies in an enclosed housing with screw terminals, 85W and a universal input. These devices have a triple output and are protected against short circuit, overload (auto recovery) as well as overvoltage. They are using 105°C long life electrolytic capacitors and comply with EN62368-1, EN55032 class B as well as EN61000-3-2. We offer the following types of this Mean Well series: RT-85A, RT-85B, RT-85C and RT-85D. triple output output: 84,5 to 90W input voltage: 88 to 264V AC (47 to 63Hz), 125 to 373V DC maximal input inrush current: 50A maximal leakage current: 2mA output voltage adjustment: 4,75 to 5,5V overload protection: 110 to 150% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -25 to +70°C weight: 600g

Specifications

manufacturer
Manufacturer's name RT-85C
GTIN 4711287434315
Output voltage [V] 5 / 15 / -15
Efficiency [%] 77
Output current range [A] 0...10 / 0...4 / 0...1
Output voltage tolerance: [%] 2 / +3, -7 / 6
Output power [W] 87,5
Ripple [mVp-p] 80 / 120 / 120
Data Sheet

Unit price

24,89 €

Volume discounts

Quantity Unit price
50 + 23,09 €

Stock: 0
Next incoming goods:
CW 18/2025
22 units

Further delivery:
CW 22/2025
