RT-50A

Mean Well power supply series RT-50

Switching power supplies in an enclosed case with 50W, screw terminals and a universal input. These devices are using 105°C long life electrolytic capacitors and are protected against overload (auto recovery), short circuit as well as overvoltage. They have a triple output and comply with EN62368-1, EN55032 class B as well as EN61000-3-2. We offer the following types of this Mean Well series: RT-50A, RT-50B, RT-50C and RT-50D.

  • triple output
  • output: 46,5 to 51W
  • input voltage: 88 to 264V AC (47 to 63Hz), 125 to 373V DC
  • maximal input inrush current: 48A
  • maximal leakage current: 2mA
  • output voltage adjustment (CH1): 4,75 to 5,5V
  • overload protection: 110 to 150%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -25 to +70°C
  • weight: 410g

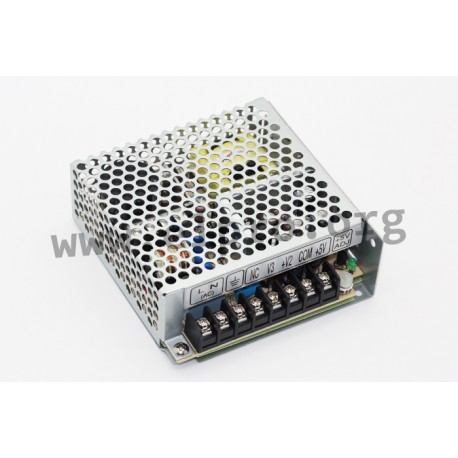

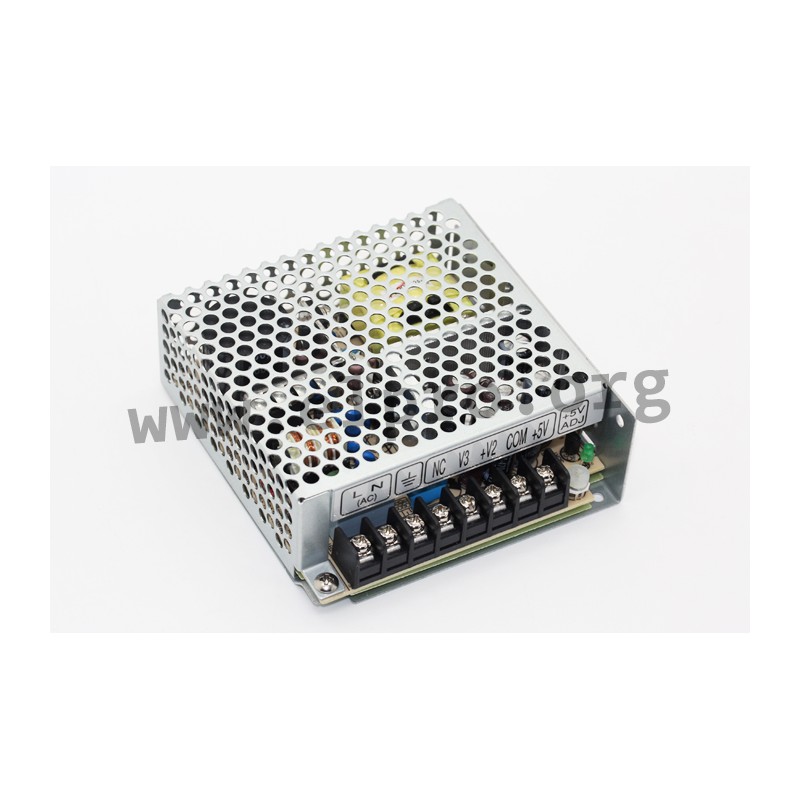

RT-50A, Mean Well switching power supplies, 50W, enclosed, triple output, RT-50 series

RT-50A

123925 RT-50A RT-50A 4711287434216 Mean Well power supply series RT-50. Switching power supplies in an enclosed case with 50W, screw terminals and a universal input. These devices are using 105°C long life electrolytic capacitors and are protected against overload (auto recovery), short circuit as well as overvoltage. They have a triple output and comply with EN62368-1, EN55032 class B as well as EN61000-3-2. We offer the following types of this Mean Well series: RT-50A, RT-50B, RT-50C and RT-50D. triple output output: 46,5 to 51W input voltage: 88 to 264V AC (47 to 63Hz), 125 to 373V DC maximal input inrush current: 48A maximal leakage current: 2mA output voltage adjustment (CH1): 4,75 to 5,5V overload protection: 110 to 150% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -25 to +70°C weight: 410g

Specifications

manufacturer
Manufacturer's name RT-50A
GTIN 4711287434216
Output voltage [V] 5 / 12 / -5
Efficiency [%] 75,5
Output current range [A] 0...5 /...
Output voltage tolerance: [%] 2 / 8 / 3
Output power [W] 46,5
Ripple [mVp-p] 80 / 120 / 100
Data Sheet

Unit price

16,79 €

Volume discounts

Quantity Unit price
50 + 15,89 €

Stock: 41
Further delivery:
CW 16/2025
