RT-125C

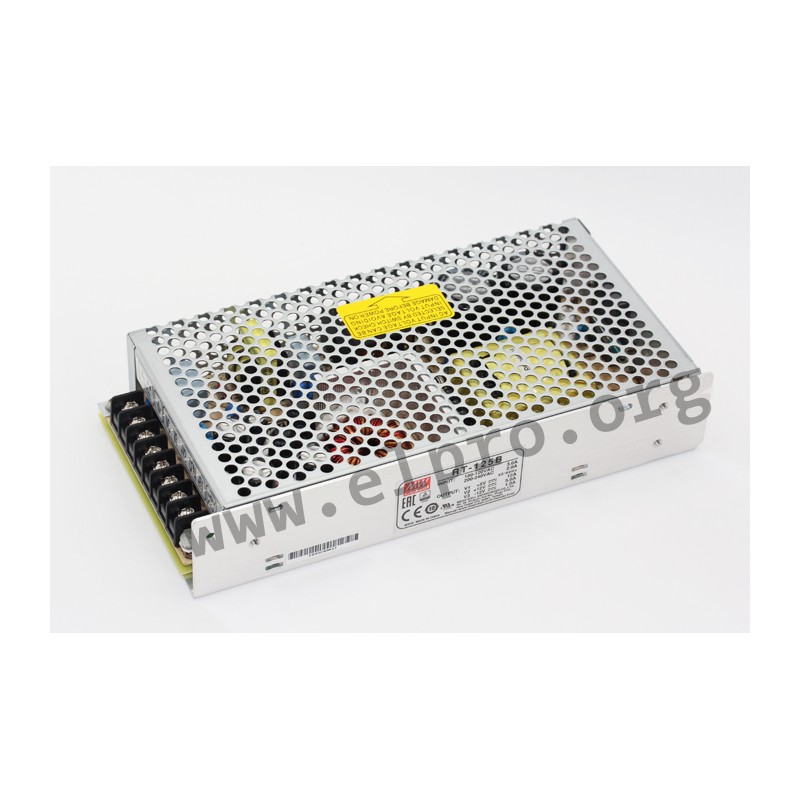

Mean Well power supply series RT-125

Switching power supplies in an enclosed housing with 125W, screw terminals, a universal input and a triple output. These devices are using long life 105°C electrolytic capacitors and are protected against short circuit, overvoltage as well as overload (auto recovery). They comply with UL62368-1, EN62368-1, EN55032 class B as well as EN61000-3-2. We offer the following types of this Mean Well series: RT-125A, RT-125B, RT-125C and RT-125D.

  • triple output
  • output: 131 to 136W
  • input voltage: 88 to 132V AC (47 to 63Hz), 176 to 264V DC
  • maximal input inrush current: 50A
  • maximal leakage current: <2mA
  • output voltage adjustment: 4,75 to 5,5V
  • overload protection: 110 to 150%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -25 to +70°C
  • weight: 700g

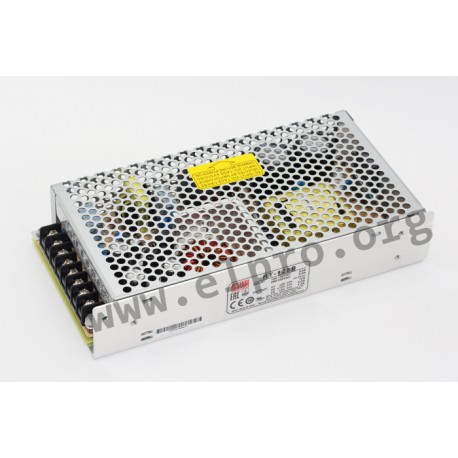

RT-125C, Mean Well switching power supplies, 125W, enclosed, triple output, RT-125 series

RT-125C

135756 RT-125C RT-125C 4711287434353 Mean Well power supply series RT-125. Switching power supplies in an enclosed housing with 125W, screw terminals, a universal input and a triple output. These devices are using long life 105&deg;C electrolytic capacitors and are protected against short circuit, overvoltage as well as overload (auto recovery). They&nbsp;comply with&nbsp;UL62368-1, EN62368-1, EN55032 class B as well as EN61000-3-2. We offer the following types of this Mean Well series: RT-125A, RT-125B, RT-125C and RT-125D. triple output output: 131 to 136W input voltage: 88 to 132V AC (47 to 63Hz), 176 to 264V DC maximal input inrush current: 50A maximal leakage current: &lt;2mA output voltage adjustment: 4,75 to 5,5V overload protection: 110 to 150% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -25 to +70&deg;C weight: 700g

Specifications

manufacturer
Manufacturer's name RT-125C
GTIN 4711287434353
Output voltage [V] 5/15/-15
Efficiency [%] 79
Output current range [A] 0...12/0...6/0...1
Output voltage tolerance: [%] 2/+8,-5/6
Output power [W] 132,5
Ripple [mVp-p] 80/150/150
Data Sheet

Unit price

29,09 €

Volume discounts

Quantity Unit price
50 + 27,09 €

Stock: 29
Further delivery:
CW 12/2025
