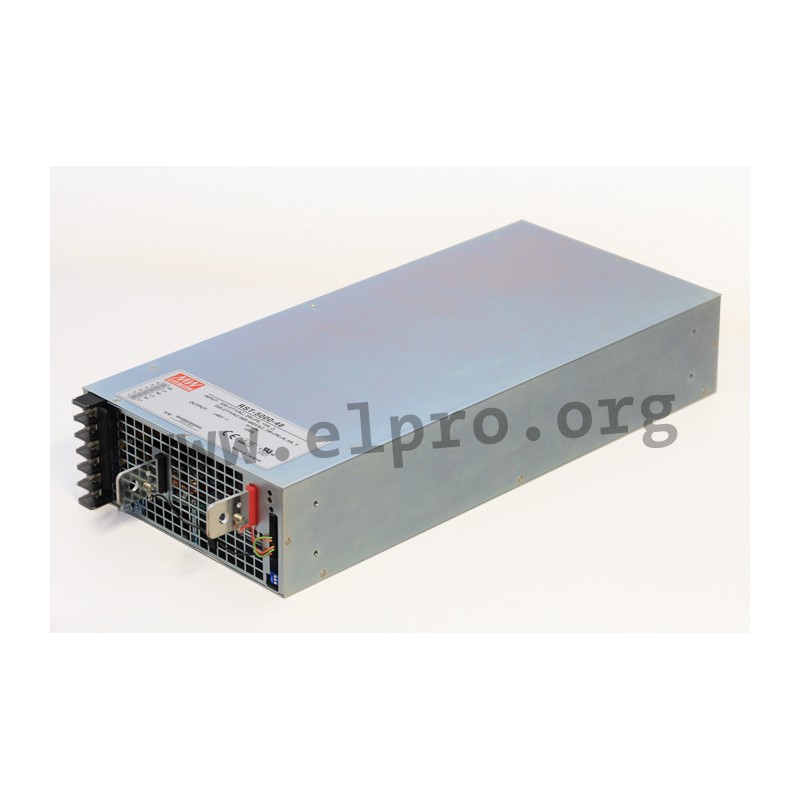

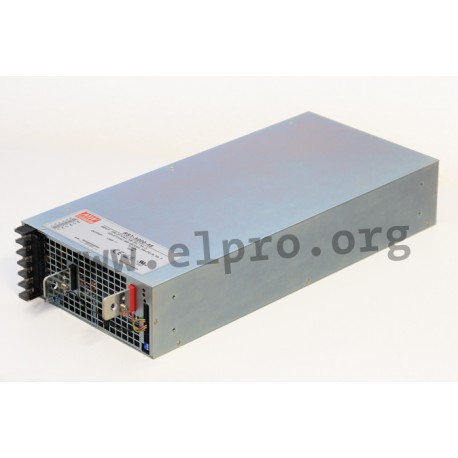

RST-5000-36

Mean Well power supply series RST-5000

Switching power supplies in an enclosed housing with 5000W, a built-in remote ON/OFF control, a parallel function, a built-in auxiliary power, a fan, a built-in remote sense function, a 3 phase AC input and screw terminals. These devices have a built-in active PFC function and are protected against overload, fan fail, overtemperature, overvoltage as well as short circuit. They are suitable for an active current sharing of up to 20kW (3+1 units) and comply with EN55032/EN55011 class A as well as EN55032/EN55011 class A. The output voltage and the constant current level are programmable. We offer the following types of this Mean Well series: RST-5000-24, RST-5000-36 and RST-5000-48.

  • single output
  • output: 4800 to 5040W
  • input voltage: 3x 3-wire 196 to 305V AC (47 to 63Hz) / 3x 4-wire 340 to 530V AC (47 to 63Hz)
  • maximal input inrush current: 50A
  • leakage current: <3,5mA
  • output voltage adjustment: -2/+20%
  • overload protection: 100 to 112%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • weight: 10.000g
RST-5000-36, Mean Well switching power supplies, 5000W, parallel function, RST-5000 series

RST-5000-36

123923 RST-5000-36 RST-5000-36 4711287438108 Mean Well power supply series RST-5000. Switching power supplies in an enclosed housing with 5000W, a&nbsp;built-in remote ON/OFF control, a parallel function, a&nbsp;built-in auxiliary power, a fan, a&nbsp;built-in remote sense function, a 3 phase AC input and screw&nbsp;terminals. These devices have a built-in active PFC function and are protected against overload, fan fail,&nbsp;overtemperature,&nbsp;overvoltage as well as short circuit. They are suitable for an active current sharing of up to 20kW (3+1 units) and comply with&nbsp;EN55032/EN55011 class A as well as EN55032/EN55011 class A. The output voltage and the constant current level are programmable. We offer the following types of this Mean Well series: RST-5000-24, RST-5000-36 and RST-5000-48. single output output: 4800 to 5040W input voltage: 3x 3-wire 196&nbsp;to 305V AC (47 to 63Hz) / 3x 4-wire 340 to 530V AC (47 to 63Hz) maximal input inrush current: 50A leakage current: &lt;3,5mA output voltage adjustment: -2/+20% overload protection: 100 to 112% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -30 to +70&deg;C weight: 10.000g

Specifications

manufacturer
Manufacturer's name RST-5000-36
GTIN 4711287438108
Output voltage [V] 36
Phase 2 phase
Efficiency [%] 89,5
Output current range [A] 0...138
Output voltage tolerance: [%] 1
Output power [W] 4968
Ripple [mVp-p] 200
Data Sheet

Unit price

1.332,59 €

Stock: 8
Further delivery:
CW 12/2025
