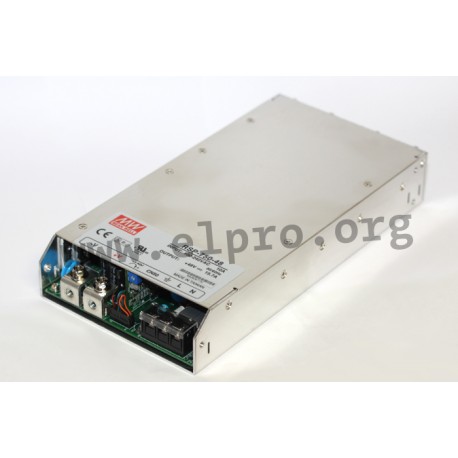

RSP-750-27

Mean Well power supply series RSP-750

Switching power supplies in an enclosed housing with 750W, screw terminals, a DC OK signal, a trimming function for output voltage / output current (40 to 110% / external voltage 2 to 5,5V DC), a fan, a built-in remote sense function, a low profile (1U), a built-in auxiliary power (standby 5V/0,5A) and a universal input. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for control cabinet mounting (19") and comply with UL/EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: RSP-750-5, RSP-750-12, RSP-750-15, RSP-750-24, RSP-750-27 and RSP-750-48.

  • single output
  • output: 500 to 753,6W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 40A
  • output voltage adjustment: ±10%
  • overload protection: 105 to 125%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • weight: 1640g
RSP-750-27

RSP-750-27

37903 RSP-750-27 RSP-750-27 4711287420561 Mean Well power supply series RSP-750. Switching power supplies in an enclosed housing with 750W, screw terminals, a DC OK signal, a trimming function for output voltage / output current (40 to 110% / external voltage 2 to 5,5V DC), a fan, a built-in remote sense function, a low profile (1U), a built-in auxiliary power (standby 5V/0,5A) and a universal input. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for control cabinet mounting (19") and comply with UL/EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: RSP-750-5, RSP-750-12, RSP-750-15, RSP-750-24, RSP-750-27 and RSP-750-48. single output output: 500 to 753,6W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 40A output voltage adjustment: ±10% overload protection: 105 to 125% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -30 to +70°C weight: 1640g

Specifications

manufacturer
Manufacturer's name RSP-750-27
GTIN 4711287420561
Output voltage [V] 27
Phase 2 phase
Efficiency [%] 90,5
Output current range [A] 0...27,8
Output voltage tolerance: [%] 1
Output power [W] 750,6
Ripple [mVp-p] 150
Data Sheet

Unit price

153,99 €

Volume discounts

Quantity Unit price
50 + 148,89 €

Stock: 17
Further delivery:
CW 12/2025
