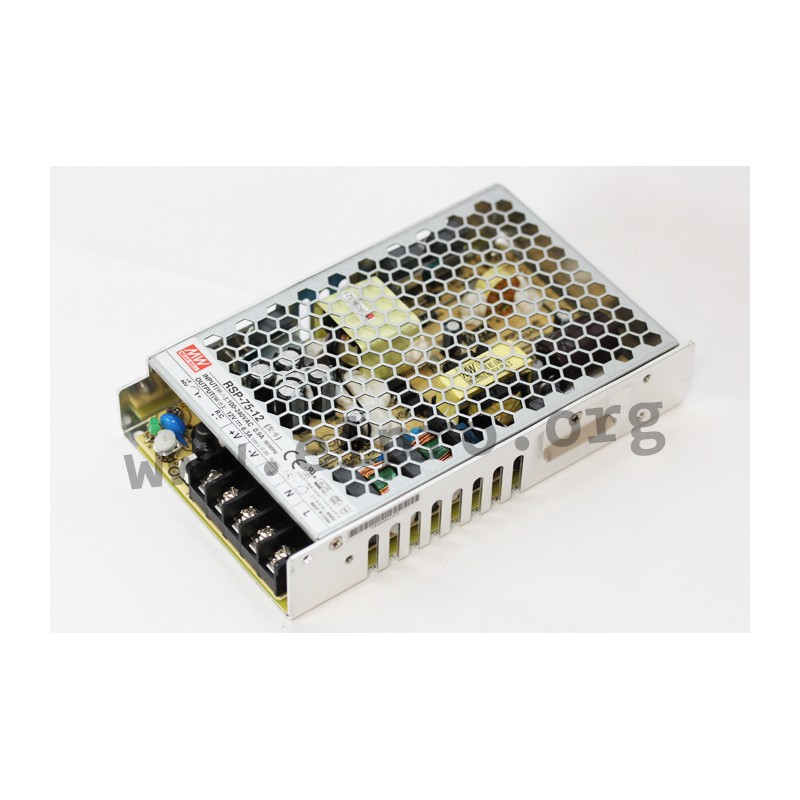

RSP-75-24

Mean Well power supply series RSP-75

Switching power supplies in an enclosed housing with 75W, a universal input, screw terminals, a low profile (1U) and a built-in remote ON/OFF control. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for control cabinet mounting (19") and comply with UL62368-1, EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RSP-75-3.3, RSP-75-5, RSP-75-7.5, RSP-75-12, RSP-75-13.5, RSP-75-15, RSP-75-24, RSP-75-27 and RSP-75-48.

  • single output
  • output: 49,5 to 76,8W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 35A
  • leakage current: <2mA
  • output voltage adjustment: -5/+10%
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -25 to +70°C
  • weight: 440g

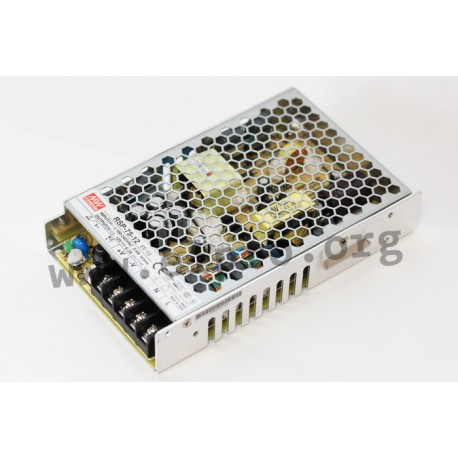

Series RSP-75 by Meanwell

RSP-75-24

43580 RSP-75-24 RSP-75-24 4711287435602 Mean Well power supply series RSP-75. Switching power supplies in an enclosed housing with 75W, a universal input,&nbsp;screw terminals, a low profile (1U) and a&nbsp;built-in remote ON/OFF control. These devices have a built-in&nbsp;active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for control cabinet&nbsp;mounting (19") and comply with&nbsp;UL62368-1, EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series:&nbsp;RSP-75-3.3, RSP-75-5, RSP-75-7.5, RSP-75-12, RSP-75-13.5, RSP-75-15, RSP-75-24, RSP-75-27 and RSP-75-48. single output output: 49,5 to 76,8W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 35A leakage current: &lt;2mA output voltage adjustment: -5/+10% overload protection: 105 to 135% withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -25 to +70&deg;C weight: 440g

Specifications

manufacturer
Manufacturer's name RSP-75-24
GTIN 4711287435602
Output voltage [V] 24
Phase 2 phase
Efficiency [%] 87
Output current range [A] 0...3,2
Output voltage tolerance: [%] 1
Output power [W] 76,8
Ripple [mVp-p] 120
Data Sheet

Unit price

27,59 €

Volume discounts

Quantity Unit price
50 + 25,69 €

Stock: 151
Next incoming goods:
CW 51/2024
120 units

Further delivery:
CW 12/2025
