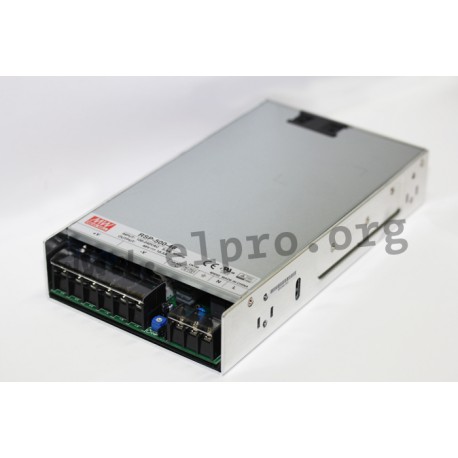

RSP-500-3.3

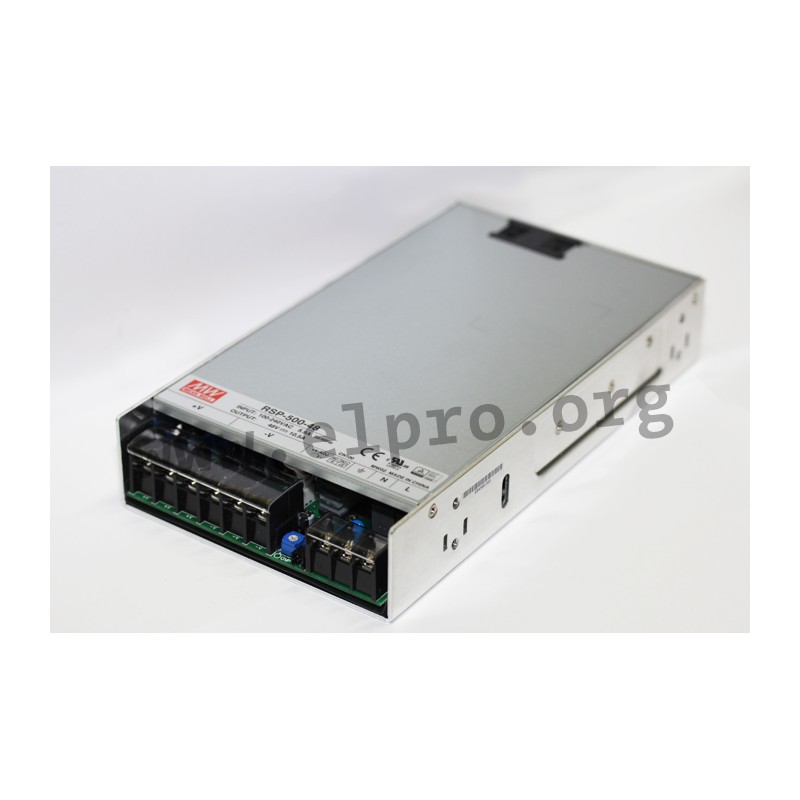

Mean Well power supply series RSP-500

Switching power supplies in an enclosed housing with 500W, a DC fan, screw terminals, a built-in remote sense function, a low profile (1U) and a unviersal input. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for control cabinet mounting (19") and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RSP-500-3.3, RSP-500-4, RSP-500-5, RSP-500-12, RSP-500-15, RSP-500-24, RSP-500-27 and RSP-500-48.

  • single output
  • output: 297 to 504W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 40A
  • leakage current: <2mA
  • output voltage adjustment: -5/+10%
  • overload protection: 105 to 130%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • weight: 1300g
RSP-500-3.3

RSP-500-3.3

42887 RSP-500-3.3 RSP-500-3.3 4711287436135 Mean Well power supply series RSP-500. Switching power supplies in an enclosed housing with 500W, a DC fan, screw terminals, a built-in remote sense function, a low profile (1U) and a unviersal input. These&nbsp;devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for control cabinet mounting (19") and comply with&nbsp;UL/EN62368-1, EN55032 class&nbsp;B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series:&nbsp;RSP-500-3.3, RSP-500-4, RSP-500-5, RSP-500-12, RSP-500-15, RSP-500-24, RSP-500-27 and RSP-500-48. single output output: 297 to 504W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 40A leakage current: &lt;2mA output voltage adjustment: -5/+10% overload protection: 105 to 130% withstand voltage&nbsp;I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -30 to +70&deg;C weight: 1300g

Specifications

manufacturer
Manufacturer's name RSP-500-3.3
GTIN 4711287436135
Phase 2 phase
Efficiency [%] 81
Output current range [A] 0...90
Output voltage tolerance: [%] 2
Output power [W] 297
Ripple [mVp-p] 120
Data Sheet

Unit price

81,99 €

Volume discounts

Quantity Unit price
50 + 80,19 €

Stock: 9
Further delivery:
CW 16/2025
