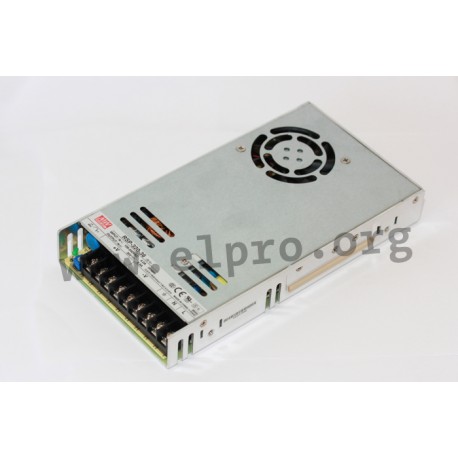

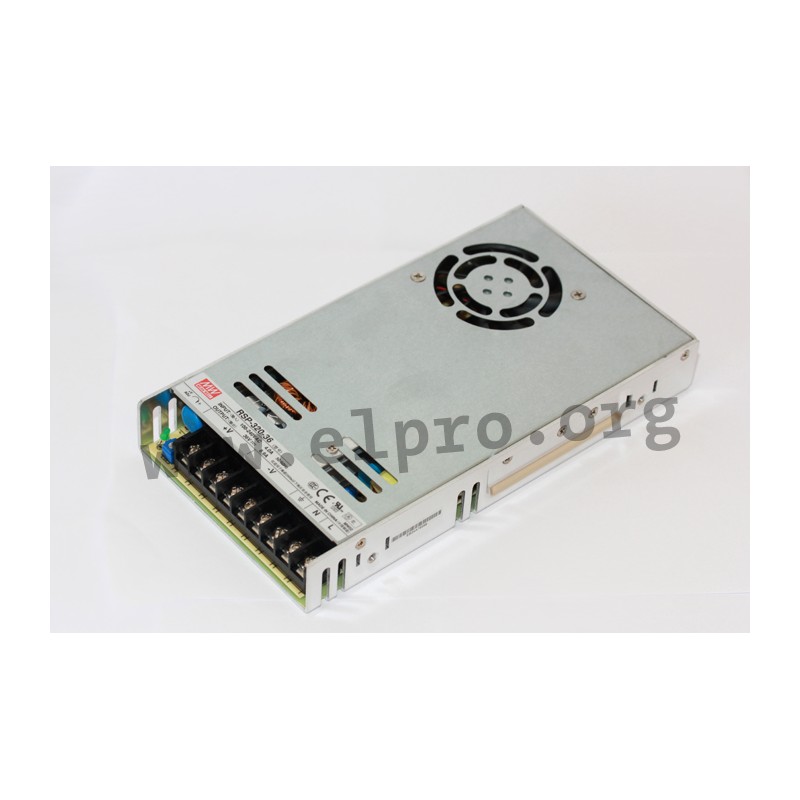

RSP-320-24

Mean Well power supply series RSP-300

Switching power supplies in an enclosed housing (1U) with 320W, a built-in fan, a universal input and screw terminals. These devices have a built-in active PFC function and are protected against overload (auto recovery), short circuit as well as overvoltage. They have a low height and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: RSP-320-2.5, RSP-320-3.3, RSP-320-4, RSP-320-5, RSP-320-7.5, RSP-320-12, RSP-320-13.5, RSP-320-15, RSP-320-24, RSP-320-27, RSP-320-36 and RSP-320-48.

  • single output
  • output: 150 to 321,6W
  • input voltage: 88 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 40A
  • maximal leakage current: 1mA
  • output voltage adjustment: ±10%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • weight: 900g
RSP-320-24

RSP-320-24

39101 RSP-320-24 RSP-320-24 4711287436012 Mean Well power supply series RSP-300. Switching power supplies in an enclosed housing (1U) with 320W, a built-in fan, a universal input and screw terminals. These devices have a built-in active PFC function and are protected against overload (auto recovery), short circuit as well as overvoltage. They have a low height and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: RSP-320-2.5, RSP-320-3.3, RSP-320-4, RSP-320-5, RSP-320-7.5, RSP-320-12, RSP-320-13.5, RSP-320-15, RSP-320-24, RSP-320-27, RSP-320-36 and RSP-320-48. single output output: 150 to 321,6W input voltage: 88 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 40A maximal leakage current: 1mA output voltage adjustment: ±10% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -30 to +70°C weight: 900g

Specifications

manufacturer
Manufacturer's name RSP-320-24
GTIN 4711287436012
Output voltage [V] 24
Phase 2 phase
Efficiency [%] 89
Output current range [A] 0...13,4
Output voltage tolerance: [%] 1
Output power [W] 321,6
Ripple [mVp-p] 150
Data Sheet

Unit price

39,09 €

Volume discounts

Quantity Unit price
50 + 38,09 €

Stock: 2582
Next incoming goods:
CW 05/2025
2010 units

Further delivery:
CW 16/2025
